INOK1100F Automatic Kjeldahl Analyzer

INO1100全自动凯氏定氮仪
INO1100全自动凯氏定氮仪

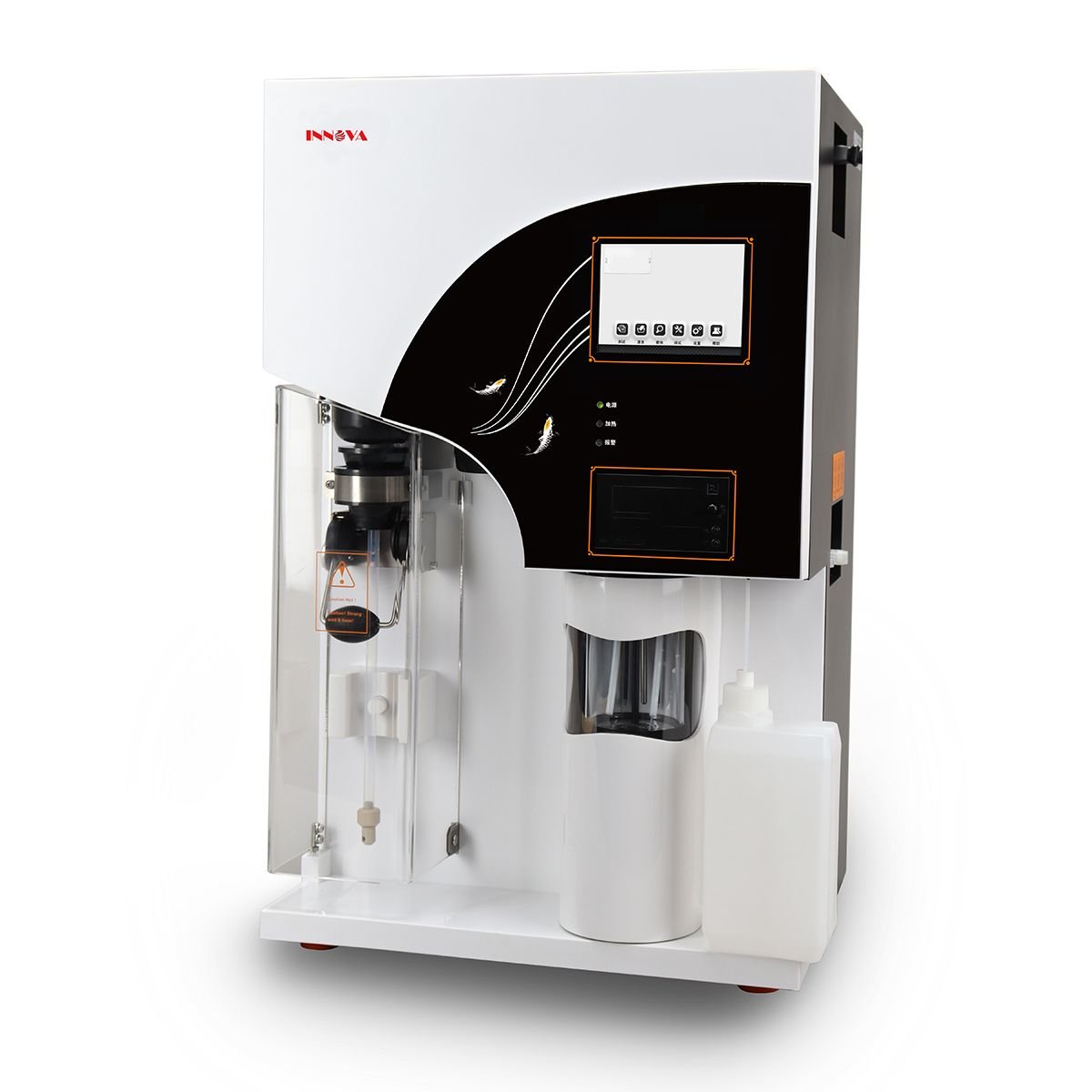

INOK1100F Automatic Kjeldahl Analyzer

INOK1100F Automatic Kjeldahl Analyzer is an automatic device integrating distillation and titration functionsand it is designed based on classic Kjeldahl nitrogen determination method. It's equipped with the latest core control system, powerful automation and high-quality components; can easily achieve automatic waste discharge and cleaning of digestion tubes and titration cups, control steam supply and real-time detection of condensation temperature. High-accuracy charging pump and titration system ensure test results accuracy, and multiple fluid level detection gives smooth test process.

FEATURES

Description:

INOK1100F Automatic Kjeldahl Analyzer is an automatic device integrating distillation and titration functionsand it is designed based on classic Kjeldahl nitrogen determination method. It's equipped with the latest core control system, powerful automation and high-quality components; can easily achieve automatic waste discharge and cleaning of digestion tubes and titration cups, control steam supply and real-time detection of condensation temperature. High-accuracy charging pump and titration system ensure test results accuracy, and multiple fluid level detection gives smooth test process.


Features:

Automatic distillation, titration, calculation, printing, drain and cleaning function, safety and time-saving.

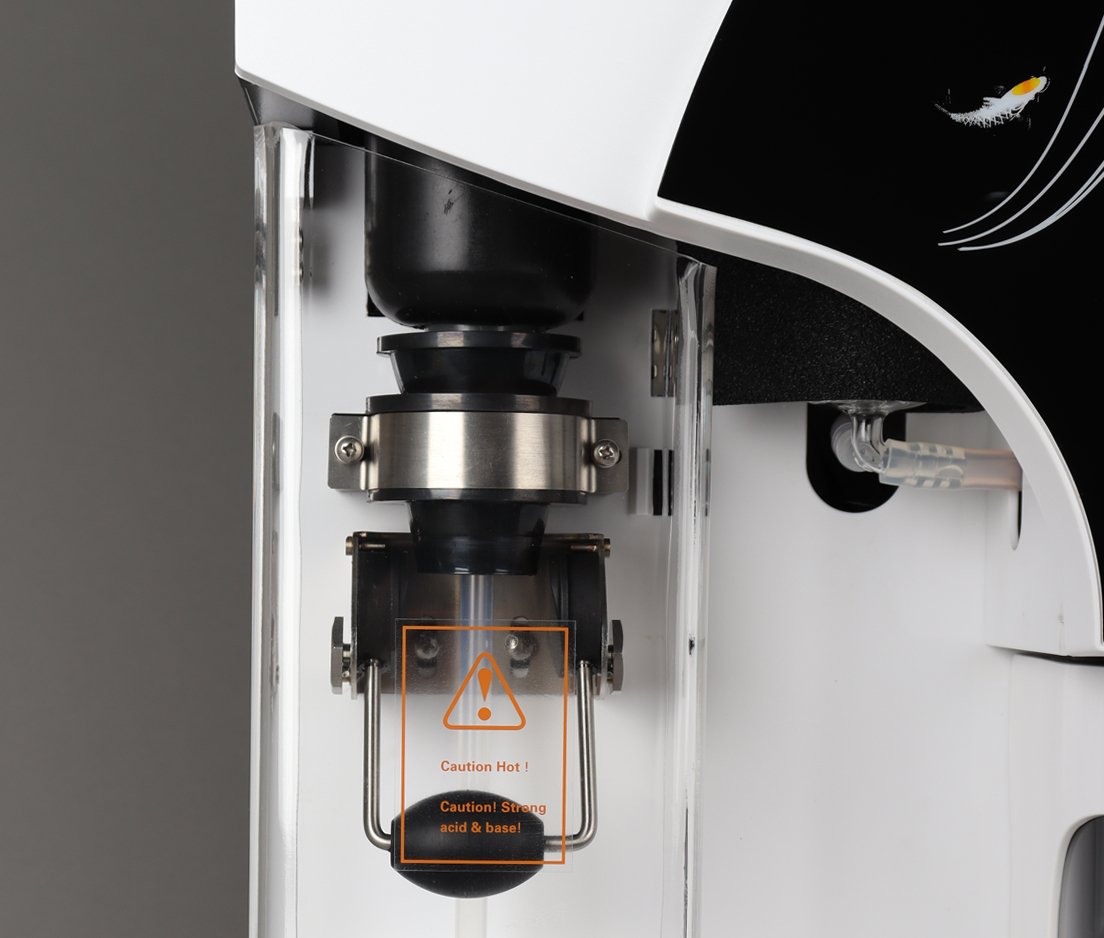

Visibletitration cup design gives the operator real-time control of the whole test process.

Steam flow is controllable, satisfying different test requirements.

Regent tank enjoys fluid absence warning function, ensuring smooth test going.

High-precision charging pump and titration system ensure test results accuracy.

Large LCD touch screen gives visual operation, and enabling user to have a good command of it.

USB or RS485 interface is optional for PC connection.

Distilled liquid temperature is detected real-time. Emergency stop against temp anomaly.

Double distillation model meets different experiments, to retard the speed of acid-base reaction.

Digestion tube fast drain function is used to avoid operator touch distilled hot reagents, protecting operators.

The printer is built in.


Performance advantage:

Compatible with φ 42mm digestion tube

Titration while distillation, enhance the efficiency rapidly.

User-friendly design, color touch screen, easy for operating

Faster ARM system, faster operating rate



SPECIFICATIONS

Technical Data:


Measuring range0.1mg ~240mg N
Analysis time5~10min/sample
ReproducibilityAverage value relative error ±0.5%
Recovery≧99.5%
Burette volume1.0μL/step
Sample capacitysolid≦5g/sample, liquid≦20mL/sample
Water consumption in the distillation process1.5L/min
Data storage capacity1800 groups
Power supply220VAC±10%, 50Hz
Power2Kw
Net weight38Kg
Dimensions455mm×391mm×730mm


ACCESSORIES

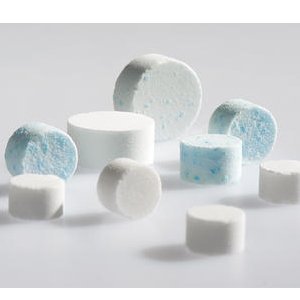

Kjeldahl Catalyst

250pcs per bottle, 4 bottels/pack

BROCHURE

INNOVA Microwave Digestion Workstation INOK1100F

File Type:.pdf File Size:336.29 KB
