INOK9860 Automatic Kjeldahl Analyzer


INOK9860 Automatic Kjeldahl Analyzer

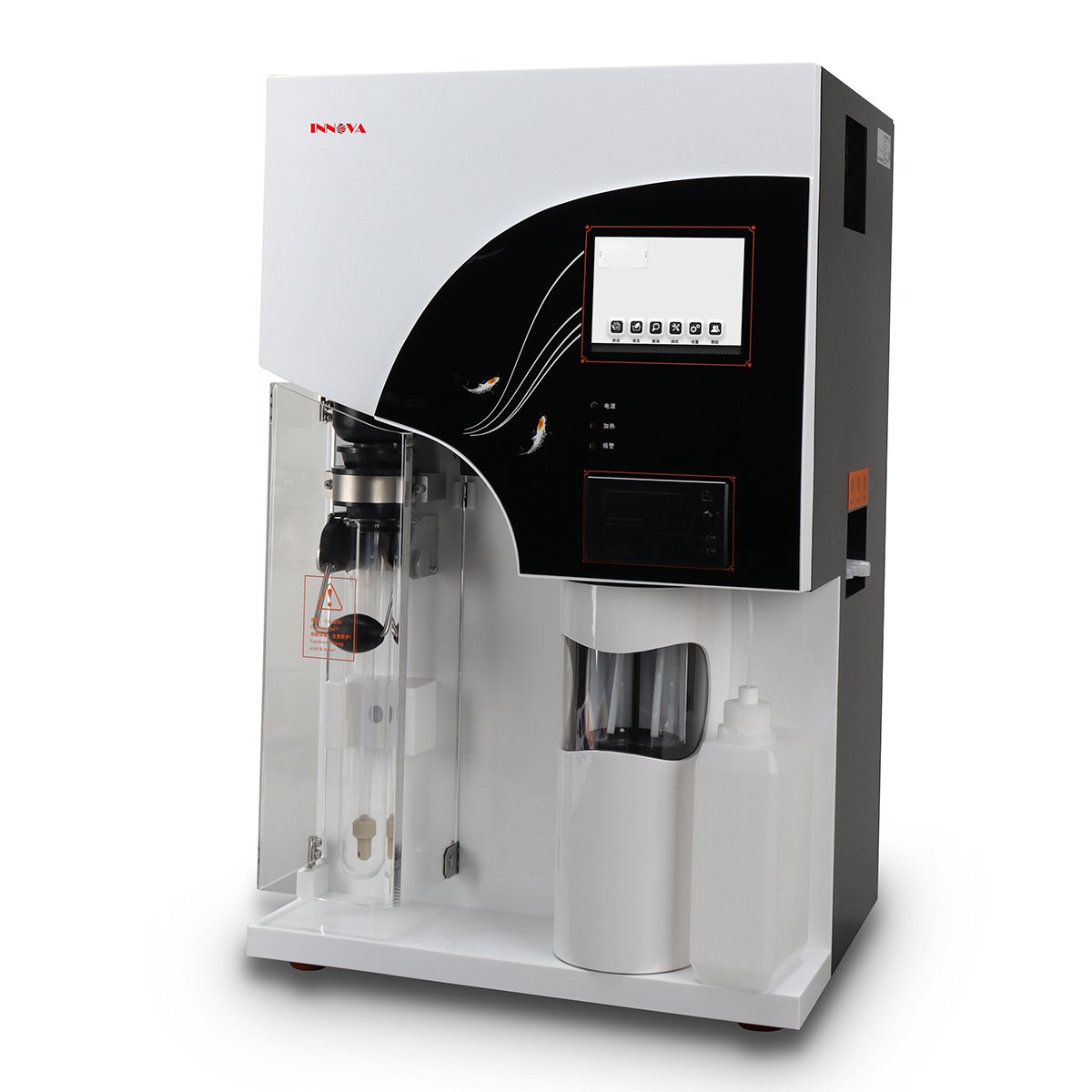

INOK9860 Automatic Kjeldahl Analyzer is an automatic device integrating distillation and titration functions, which is designed based on the classic Kjeldahl nitrogen determination method. It's equipped with the latest core control system, powerful automatic degree and high-quality components and it can easily achieve automatic cleaning of digestion tubes and titration cups, control steam supply, and have real-time detection of condensation temperature. High-accuracy charging pump and titration system ensure test results accuracy, and multiple fluid level detection gives a smooth test process.



High accuracy dozing and working.

Easy Maintenance: Pre-install functions of cleaning, including receiving cup cleaning, alkali pipeline cleaning, boric acid pipeline cleaning, acid washing, steam bottle evacuation. Support customers make the routine maintenance easily.

High titration accuracy, up to 2.0μL/step.

Integrated printer on the instruments.


It is widely used in food processing, feed production, tobacco, livestock, soil fertility, environmental monitoring, medicine, agriculture, scientific research, teaching, quality control and other fields for the test of nitrogen or protein content, can also be used for the test of ammonium, volatile fatty acid/ alkali, and so on.


Automatic cleaning ensures operator safety and save time.

External titration cup design gives the operator real-time control of the whole test process.

High-precision charging pump and titration ensure test results accuracy.

The temperature of the distilled liquid is detected real-time. If the temperature of the distilled liquid is abnormal, to ensure the accuracy of experiment’s result, the instrument will stop working.


Technical Data:

Measuring range0.1mg ~240mg N
Analysis time5~10min/sample
ReproducibilityAverage value relative error ±0.5%
Burette volume2.0μL/step
Sample capacitysolid≦5g/sample, liquid≦20mL/sample
Water consumption in the distillation process1.5L/min
Data storage capacity1000 groups
Power supply220VAC±10%, 50Hz
Net weight38Kg

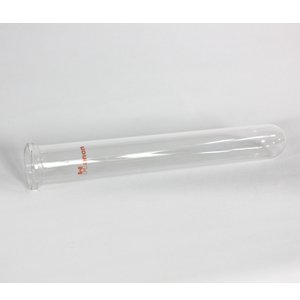

1.Digestion Tube

Suitable for INO9860, INO9840, INO1100F Kjeldahl and supporting digestion tube; used for digestion and distillation of samples.

2.Standard Acid Tank

Applicable to INOK1100F/INOK9860; storage of titration acid solution.

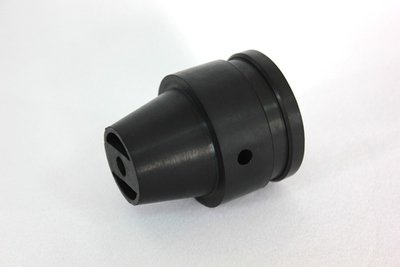

3.Distillation Head

Suitable for INO1100F/INO9860/INO9840; resistant to strong acid and alkali, high temperature, used to connect and seal between distillation system and digestion tube.


INNOVA Microwave Digestion Workstation INOK9860

File Type:.pdf File Size:237.98 KB
