Laboratory Freeze Dryer

Innova INOFD freeze dryer is specialized designed for small batch test in laboratory. The Bench top and Console freeze dryers are with advanced design and occupies small area.The capacity of bench top freeze dryer is from 900ml to 2700ml.

Inquire Now

Last product Next product

FEATURES
SPECIFICATIONS
ACCESSORIES
BROCHURE

FEATURES

Features of Innova freeze dryers

1. New upgraded programmable logic controller (PLC), allow users to independently compile and modify programs, and gradually realize function iteration according to user needs

2. PLC has reliable quality, high stability, and has the functions of waterproof, anti-magnetic, anti-breakdown and anti-electromagnetic interference.

3. HD 7“ colorful touch panel with higher resolution, better sensing accuracy and control accuracy.

4. The Pirani vacuum gauge can effectively improve the measurement accuracy, increase the measurement range, and greatly enhance the stability and reliability of the vacuum gauge.

5. The vacuum sensing of the Pirani vacuum gauge is more accurate, and the sensing accuracy reaches 0.01Pa.

6. Vacuum degree alarm function, when the vacuum degree exceeds the set range, an alarm will be issued in time.

Optional

Condenser temperature of -80℃ is optional （Except bentch top models）;

Shelf heating function is optional;

Accessories for different chamber and manifold are optional;

The vacuum pump is standard accessory, which is packed in a separate package, needs to be installed in user's site indepedently,

SPECIFICATIONS

Innova freeze dryer models and technical data:

Model	INOFD-10SU	INOFD-10TU	INOFD-10PU	INOFD-10PTU
Type	Standard chamber	Stoppering chamber	Standard chamber with 8 port manifold	Stoppering chamberwith 8 port manifold
Final condenser temp (℃)	-60	-60	-60	-60
Vacuum Degree (Pa)	<10	<10	<10	<10
Condenser volume (L)	6.5	6.5	6.5	6.5
Freeze drying area (m2)	0.12 or 0.18	0.09	0.12 or 0.18	0.09
Ice condenser capacity (Kg/24h)	3	3	3	3
Qty of shelf	4 or 6	3	4 or 6	3
Material loading capacity/shelf (ml)	300	300	300	300
Material loading capacity (ml)	1200 or 1800	900	1200 or 1800	900
Freeze drying time (h)	24	24	24	24
Manifold	/	/	8 pieces	8 pieces
USB Interface	Y	Y	Y	Y
Drying Chamber(standard)	Transparent acrylic
Vacuum Pump(standard)	Standard model: 2XZ-2, Speed: 2L/S
Control System	Microprocessor, touch screen
Power supply (V/Hz)	220V/50Hz,60Hz
Exterior dimension (WxDxH mm)	600540820/880

Model	INOFD-12SU/12SUP	INOFD-12TU/12TUP	INOFD-12PU/12PUP	INOFD-12PTU/12PTUP
Type	Standard chamber	Stoppering chamber	Standard chamber with 8 port manifold	Stoppering chamberwith 8 port manifold
Final condenser temp (℃)	-60 or -80	-60 or -80	-60 or -80	-60 or -80
Vacuum Degree (Pa)	<10	<10	<10	<10
Condenser volume (L)	9.5	9.5	9.5	9.5
Freeze drying area (m2)	0.12 or 0.18	0.09	0.12 or 0.18	0.09
Ice condenser capacity (Kg/24h)	4	4	4	4
Qty of shelf	4 or 6	3	4 or 6	3
Material loading capacity/shelf (ml)	300	300	300	300
Material loading capacity (ml)	1200 or 1800	900	1200 or 1800	900
Freeze drying time (h)	24	24	24	24
Manifold	/	/	8 pieces	8 pieces
USB Interface	Y	Y	Y	Y
Drying Chamber(standard)	Transparent acrylic
Vacuum Pump(standard)	Standard model: 2XZ-2, Speed: 2L/S
Control System	Microprocessor, touch screen
Power supply (V/Hz)	220V/50Hz,60Hz
Exterior dimension (WxDxH mm)	4806101355/1415

Model	INOFD-18SU/18SUP	INOFD-18TU/18TUP	INOFD-18PU/18PUP	INOFD-18PTU/18PTUP
Type	Standard chamber	Stoppering chamber	Standard chamber with 8 port manifold	Stoppering chamberwith 8 port manifold
Final condenser temp (℃)	-60 or -80	-60 or -80	-60 or -80	-60 or -80
Vacuum Degree (Pa)	<10	<10	<10	<10
Condenser volume (L)	28	28	28	28
Freeze drying area (m2)	0.18 or 0.27	0.135	0.18 or 0.27	0.135
Ice condenser capacity (Kg/24h)	6	6	6	6
Qty of shelf	4 or 6	3	4 or 6	3
Material loading capacity/shelf (ml)	450	450	450	450
Material loading capacity (ml)	1800 or 2700	1350	1800 or 2700	1350
Manifold	/	/	8 pieces	8 pieces
USB Interface	Y	Y	Y	Y
Drying Chamber(standard)	Transparent acrylic
Vacuum Pump(standard)	Standard model: 2XZ-4, Speed: 2L/S
Control System	Microprocessor, touch screen
Power supply (V/Hz)	220V/50Hz,60Hz
Exterior dimension (WxDxH mm)	5607101390/1450

ACCESSORIES

ACCESSORIES：

1. Optional Vacuum Pump

Model	Ultimate Pressure (Pa)	Pumping Speed (L/S)	Rotary	Inlet Diam	Motor	Weight	Dimensions	Benchmark model
INOVP-1	6×10-2	1	1440	Φ16	0.25	19	470×140×235	RV3
INOVP-2	6×10-2	2	1440	Φ25	0.37	27	480×140×255	RV5
INOVP-4	6×10-2	4	1440	Φ25	0.55	30	510×140×255	RV12

2. Optional N2 generator

NO.	ITEM	Description
1	Fluid	Compressed air after non-corrosive purification
2	Working Principle	Variable Pressure Adsorption
3	Inlet air flow	Std.150L/min
4	Inlet air pressure	Std.8 bar \| Min 0.7 bar Max:0.85 bar
5	Inlet air temperature	Std.25 ℃ \| Max:35℃
6	Working environment temperature	Std.32 ℃ \|Min 0℃ Max:45℃
7	Pressure loss at full load	Std.0.2 bar
8	Outlet nitrogen temperature	+5～25℃
9	Outlet nitrogen dew point	-30℃
10	Outlet nitrogen pressure	0.05-0.6Mpa adjustable
11	Export nitrogen purity	≥95%
12	Outlet nitrogen flow	≥3m³/h
13	Air Inlet	DN15
14	Nitrogen outlet	DN15
15	Power	220V 50Hz \| 2500W 2 phase 3 wire
16	Net weight	100kg
17	Dimension (HWD)	1300×600×550
18	Structure form	Case-type
19	Noise level	1 meter from the equipment, noise less than 50 decibels

3. Optional Booster Pump

Exhaust rate	50Hz	500m³/h (8330L/min)
Exhaust rate	60Hz	600m³/h (10000L/min)
Suction pressure	50Hz	1.3x10³Pa
Suction pressure	60Hz	1.1x10³Pa
The maximum allowable pressure difference (discharge pressure - suction pressure)	50Hz	7.3x10³Pa
	60Hz	6.0x10³Pa
Ultimate pressure		4.0x10-1Pa
Motor		2.2KW
Oil required		1.6L
Cooling water	Flow	2L/min
	Cold water pressure	1x10-1Mpa
	Water temperature	5-30°C
Weight		79.5kg
Suction port		VG80
Exhaust vent		VF80

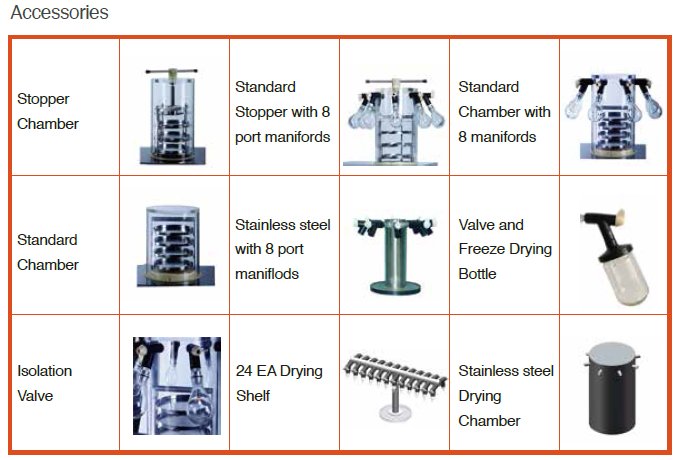

4.Chamber

Optional for gas interface: can inject inert gas

Optional for Cold trap electrical heating defrost function

Optional for rack heating which is help to test in production

Eutectic point testing, it can have sublimation temperature
