Benchtop Glass Reactor

产品主图
产品主图

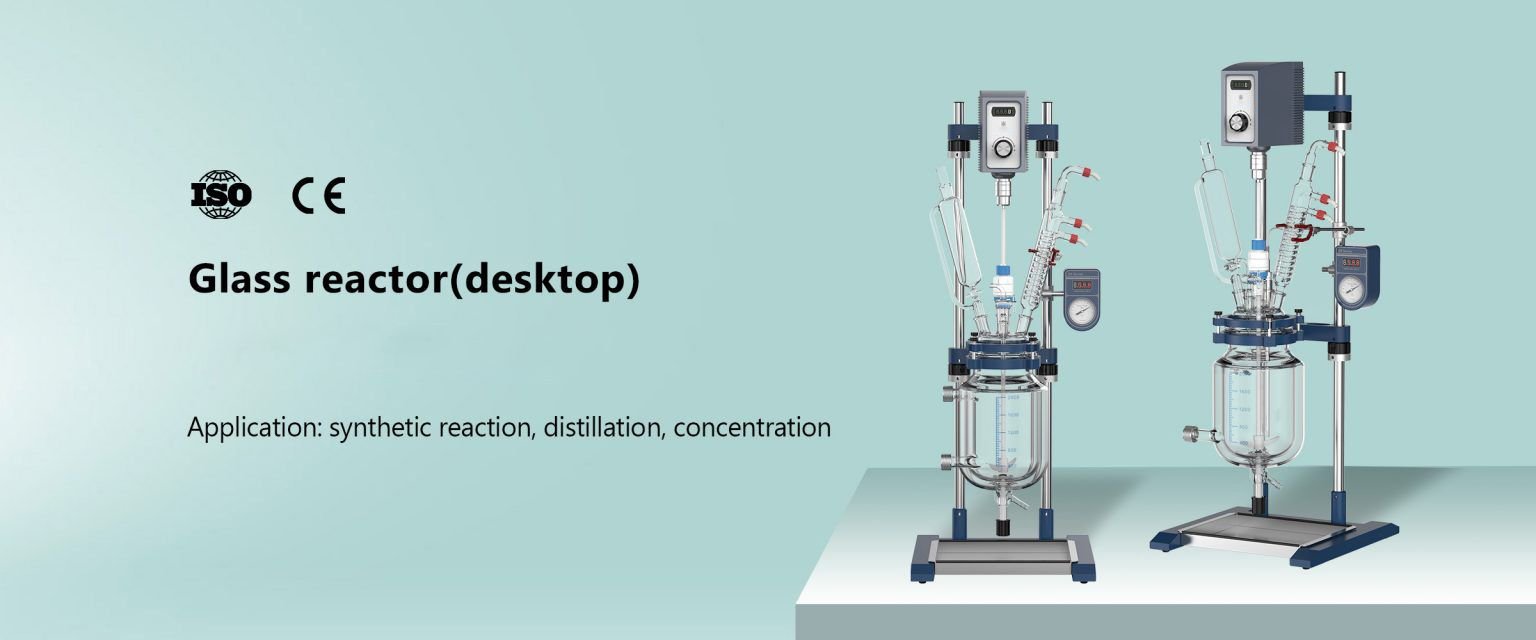

Benchtop Glass Reactor

Innova benchtop glass reactor is suitable for laboratory research in chemical, pharmaceutical, material synthesis, etc. It usually works with dynamic temperature control system to meet experimental requirements.

Inquire Now

FEATURES

Features:

Speed-regulation glass reactors are mainly used for synthetic reaction, distillation and concentration of different types of materials. The reactor can be pumped to a negative pressure state according to some experimental requirements.


●  1L, 2L, 3L, 5L volume available.

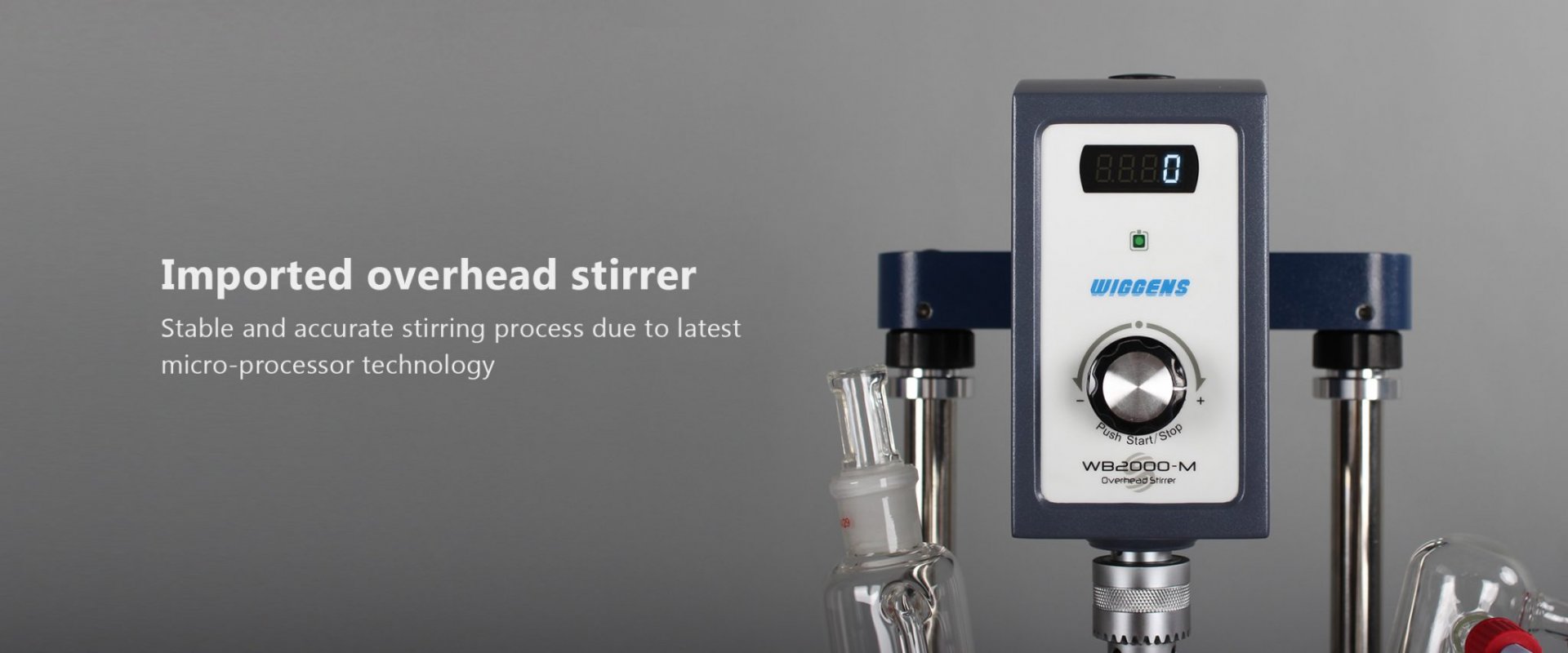

●  Imported overhead stirrer.

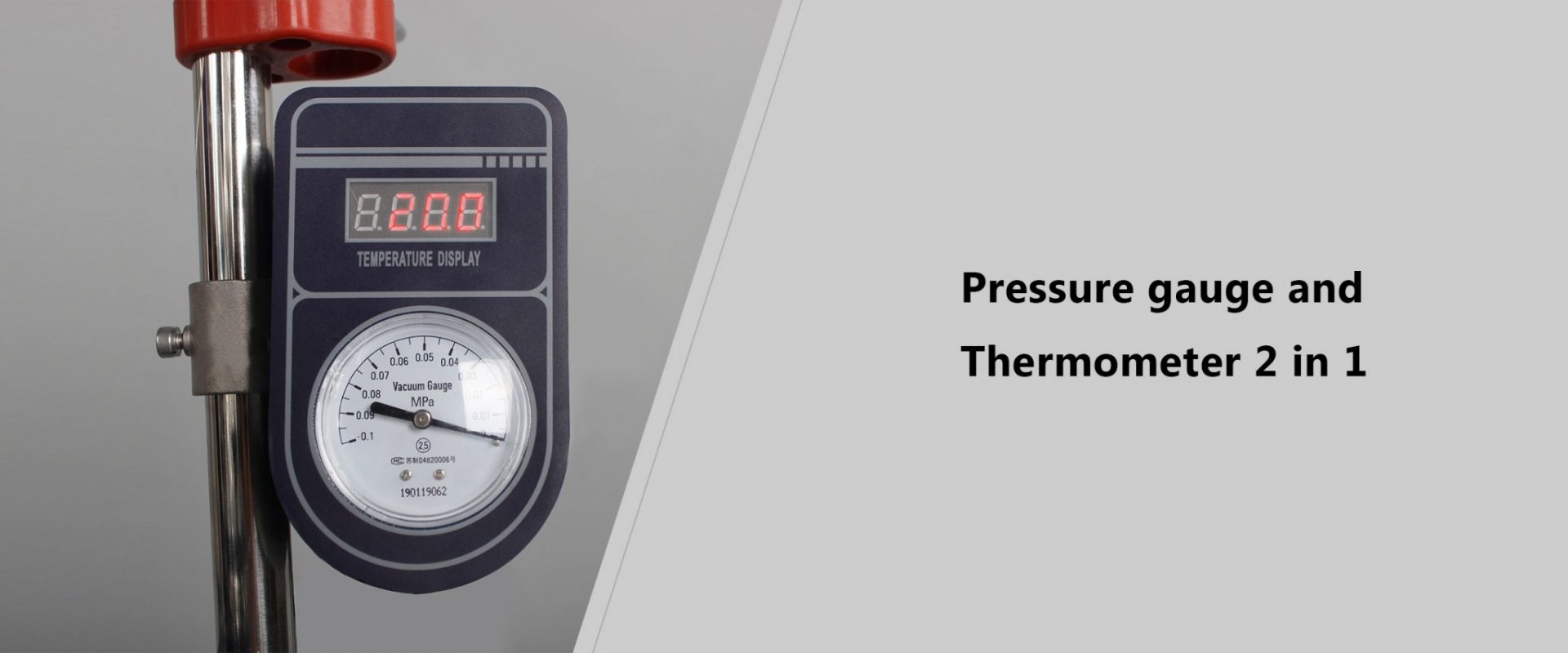

●  Designed with vacuum gauge and temperature display unit.

●  High borosilicate glass has good physical and chemical properties.

●  Wide working temperature range: -80℃ to 200℃.

●  It can work under normal pressure and negative pressure, its vacuum degree can reach to 0.095MPa.

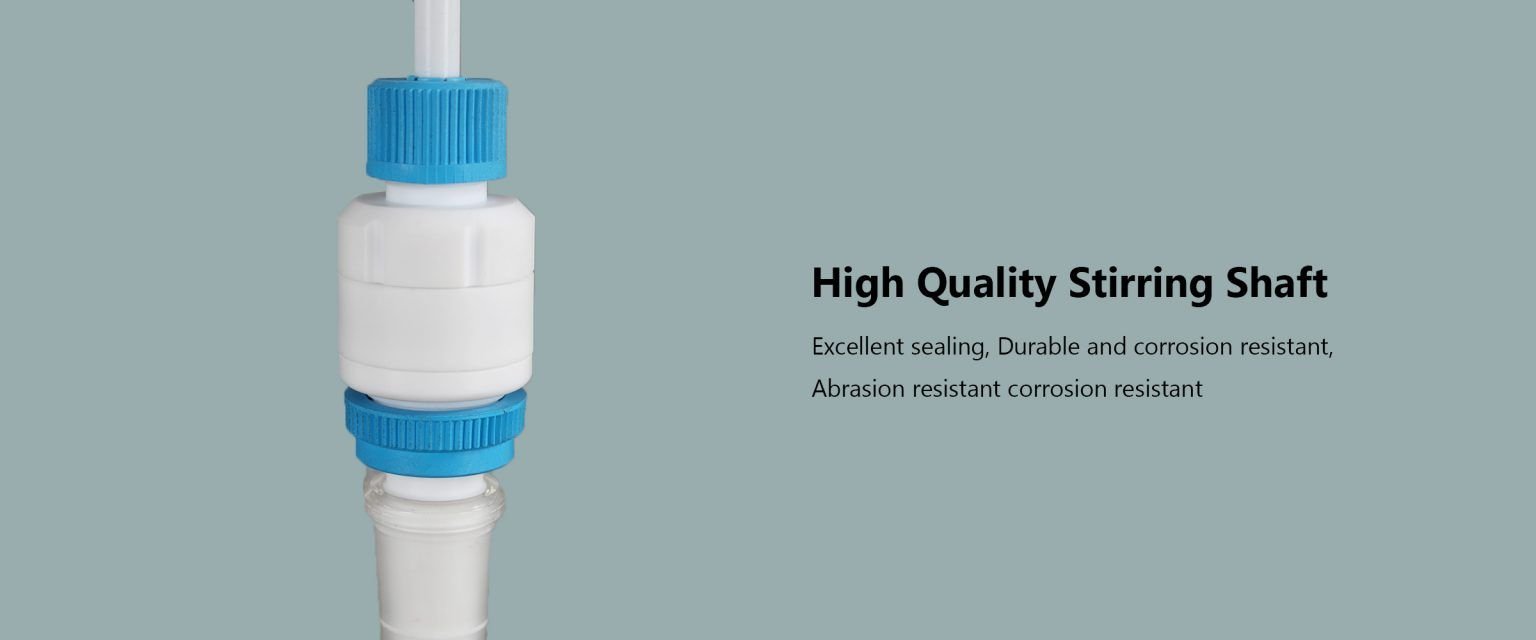

●  High Quality Stirring Shaft. Excellent sealing, durable and corrosion resistant.

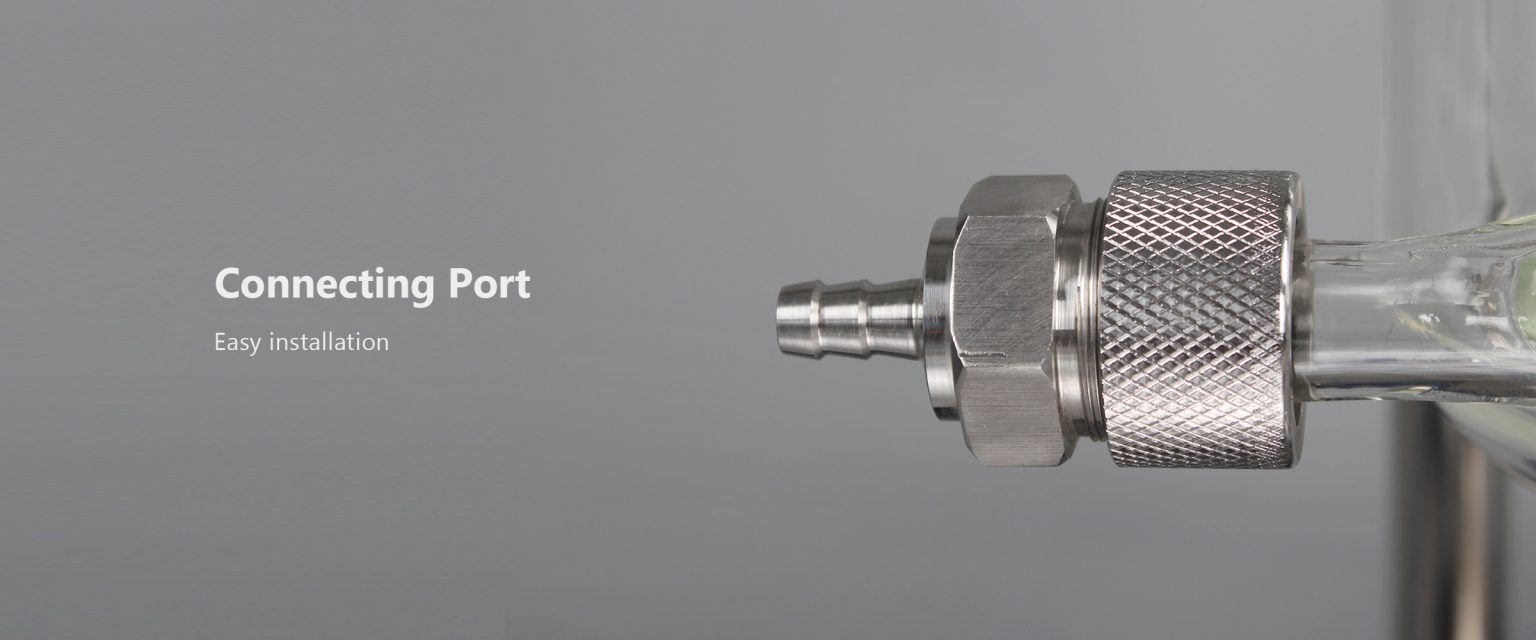

●  Easy installation connecting port

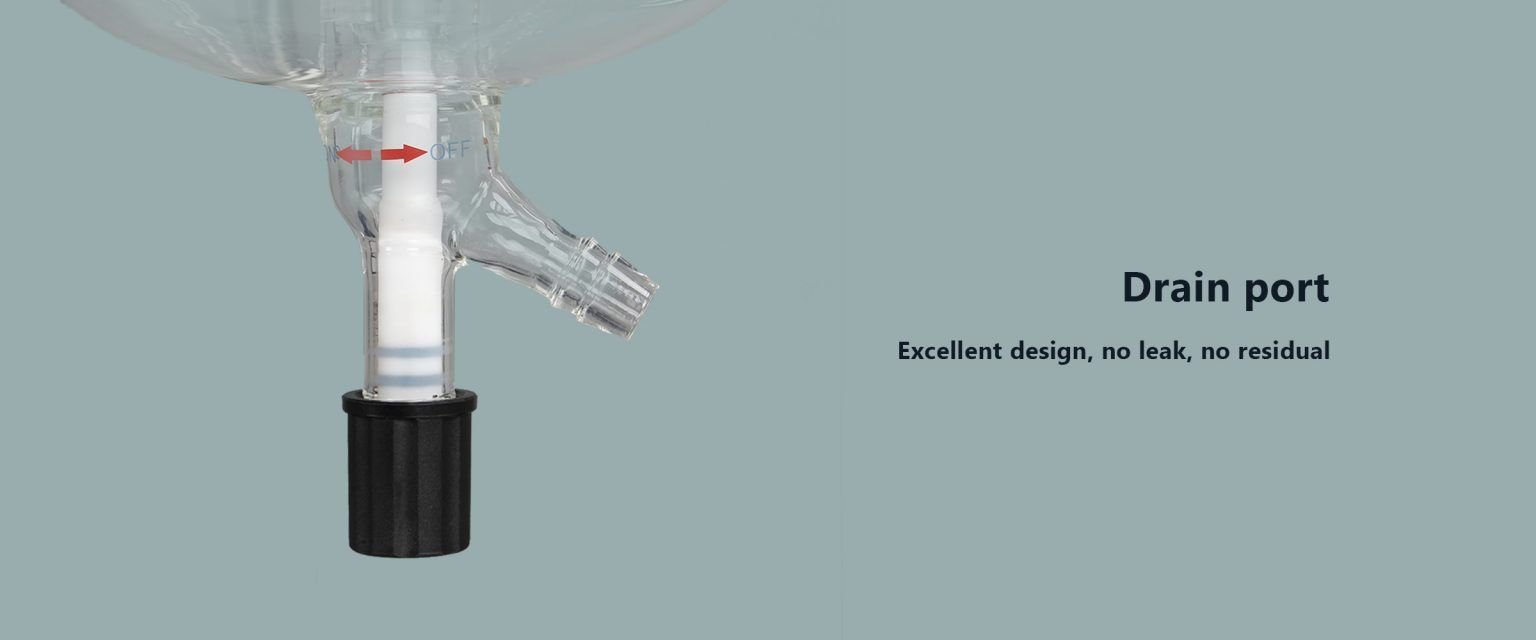

●  Drain port. Excellent design, no leak, no residual

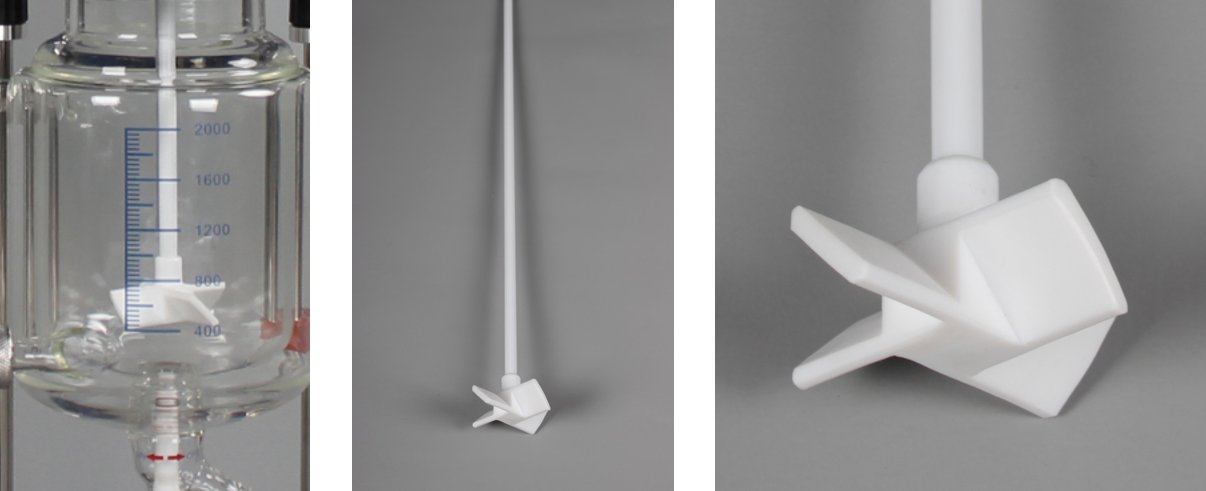

  Imported PTFE shaft stirrer

SPECIFICATIONS

Technical Data:

ModelIGR-1(CE)IGR-2(CE)IGR-3(CE)IGR-5IGR-5CEIGR-5Ex
Vessel volume1.0L2.0L3.0L5.0L5.0L5.0L
Jacket volume1.2L1.7L2.0L3.0L3.0L1.5L
Funnel volume0.2L0.5L
Pressure in the vessel-0.1 ~ 0.0MPa
Pressure in the jacket≤0.03MPa
Working temperature-80 ~ 200℃
Stirring speed40~500rpm50500rpm20~500rpm50500rpm
Power supply220-240V, 50/60HZ or 110V, 60Hz220-240V, 50/60Hz100-240V, 50/60Hz220-240V, 50/60Hz
Dimensions(W×D×H)480×420×1110mm480×420×1020mm480×420×1200mm591×520×1594mm640×520×1600 mm


BROCHURE

Innovs Glass Reactor Brochure

File Type:.pdf File Size:5.48 MB
