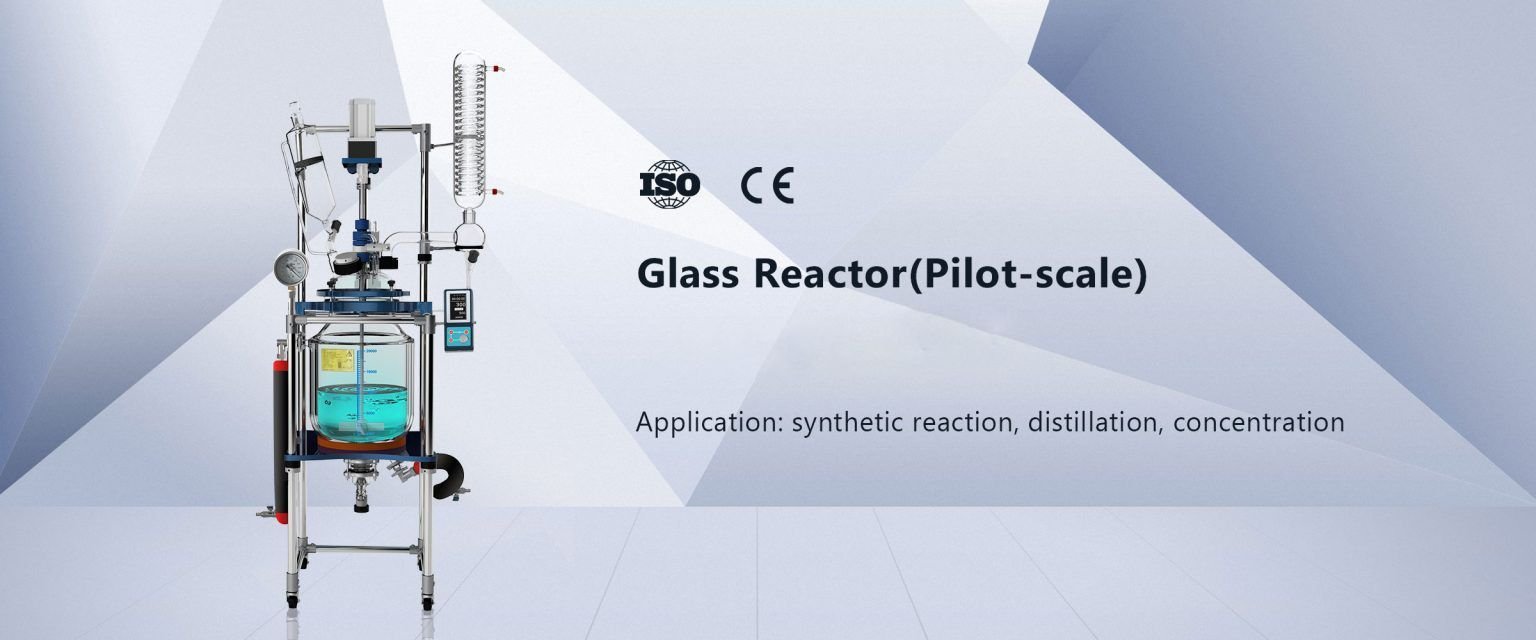

Pilot-scale Glass Reactor

Innova pilot-scale glass reactor is suitable for pilot production in chemical, pharmaceutical, material synthesis, etc. It usually works with dynamic temperature control system to meet experimental requirements.

FEATURES

Feature:

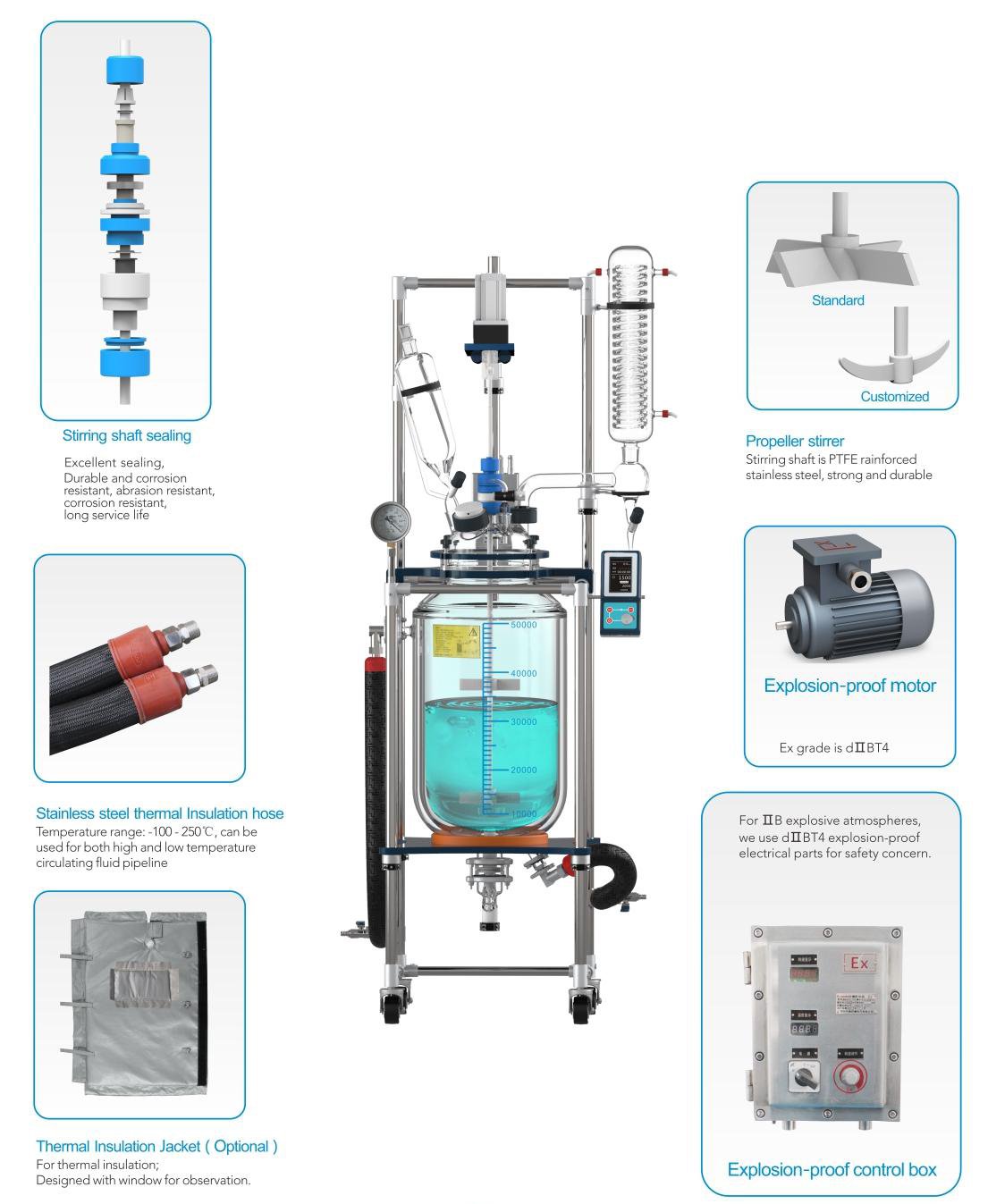

Speed-regulation glass reactors are mainly used for synthetic reaction, distillation and concentration of different types of materials. The reactor can be pumped to a negative pressure state according to some experimental requirements. A constant pressure funnel or an adjusting valve on the feeding bottle allows you to add material to the vessel at a uniform and controlled speed. Condenser helps to recover some materials distillated during reaction.

● High borosilicate glass has good physical and chemical properties.

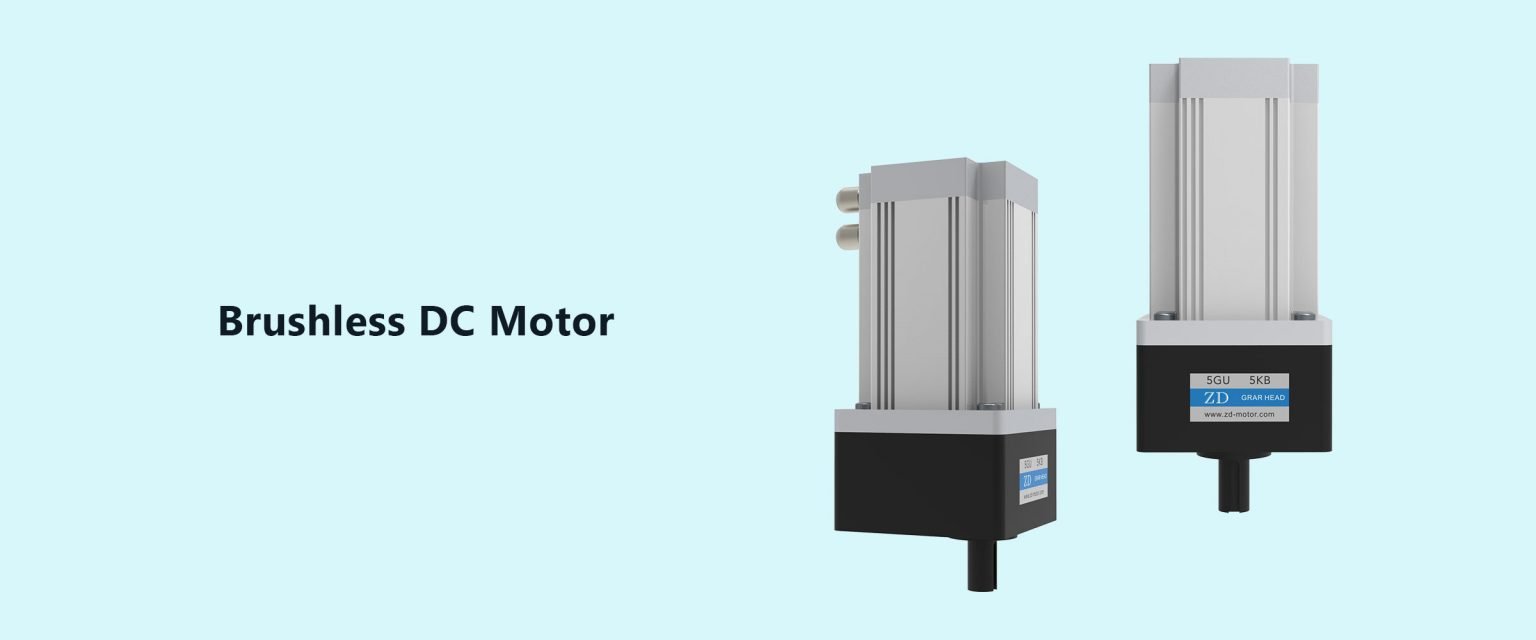

● Brushless DC motor for stable performance and long life time.

● Wide working temperature range:-80℃ to 200℃.

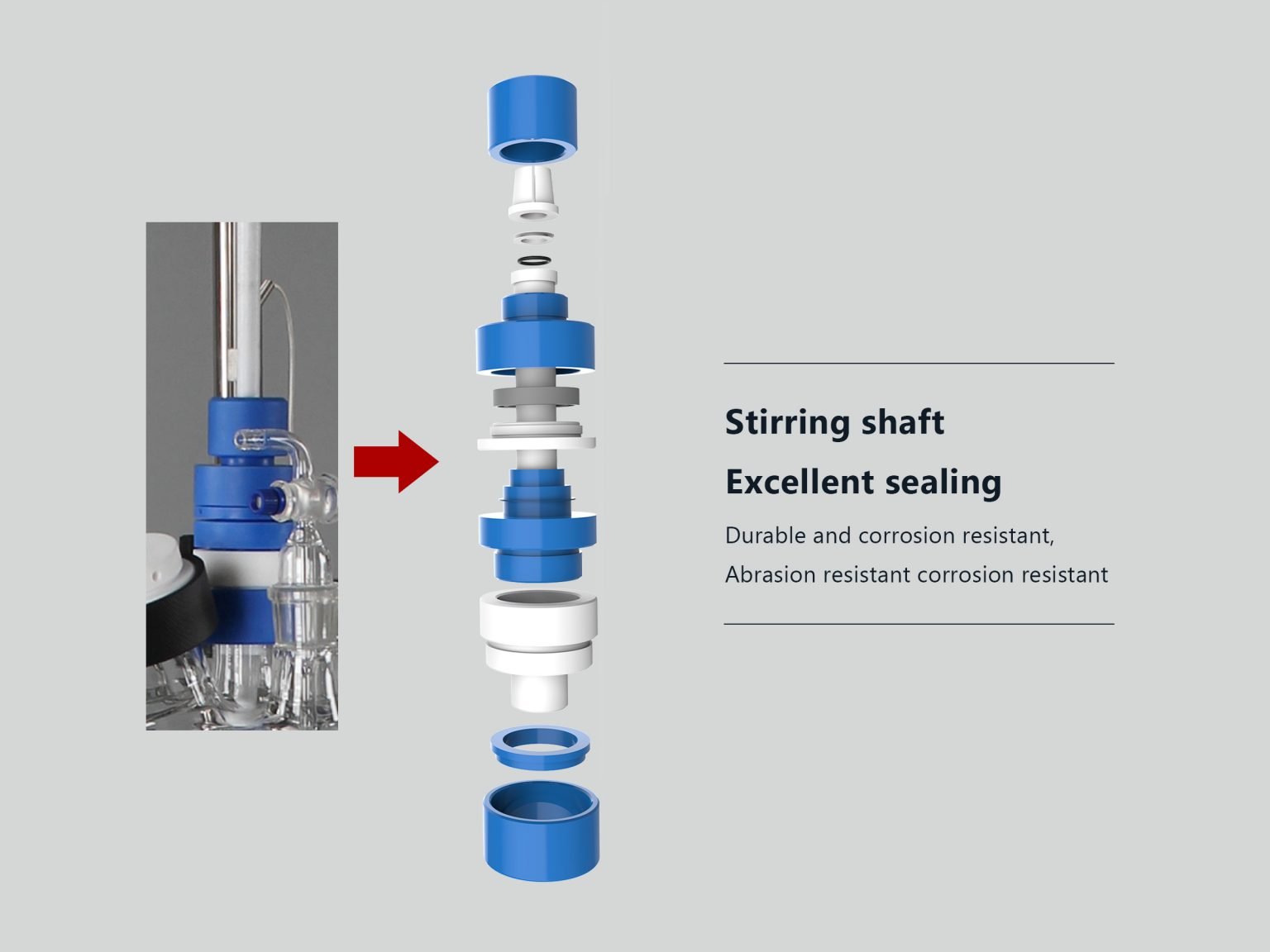

● Stirring shaft—Excellent sealing

● It can work under normal pressure and negative pressure, its vacuum degree can reach to 0.095MPa.

● The vessel can withstand the pressure range from -0.1MPa to 0MPa.

● PTFE and FV rubber material cock or discharge valve, Sealing together with PTFE covered O ring.

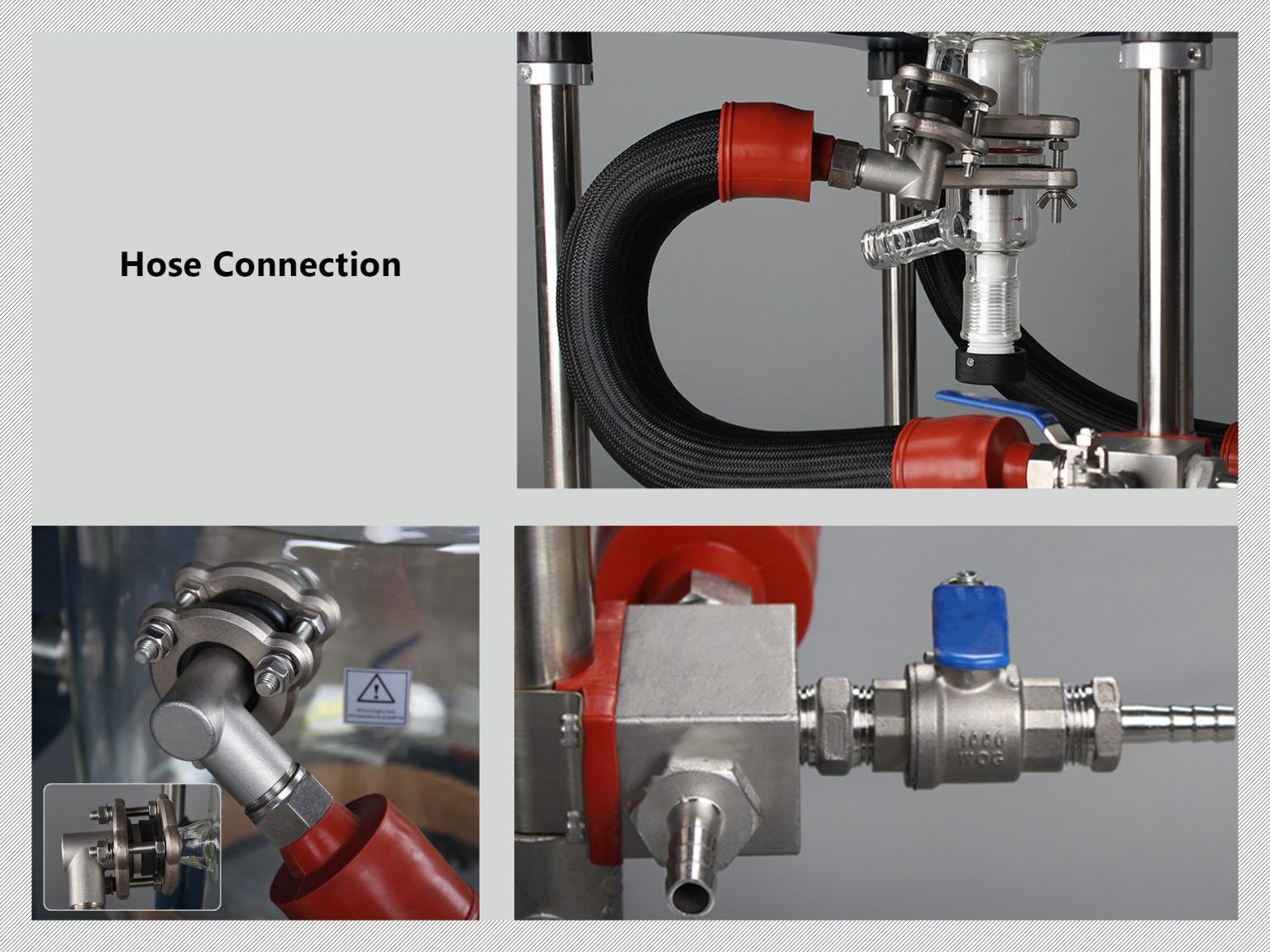

● Hose connection



SPECIFICATIONS

Technical Data 1:

ModelIGR-10IGR-10CEIGR-10ExIGR-20IGR-20CEIGR-20ExIGR-50IGR-50CEIGR-50Ex
Vessel volume10L20L50L
Jacket volume8L3L9L6L13L16L
Funnel volume1.0L2.0L2L

Operating

pressure

Ordinary or negative pressure
Working temperature-80 ~ 200℃

Condenser

cooling area

0.168 m²0.234 m²0.265 m²0.341 m²0.265 m²0.429 m²
Stirring speed50~500rpm20~500rpm50~500rpm50~500rpm20~500rpm50~500rpm50~500rpm20~500rpm50~500rpm
Power supply220-240V
50/60Hz
100-240V
50/60Hz
220-240V
50/60Hz
220-240V
50/60Hz
100-240V
50/60Hz
220-240V
50/60Hz
220-240V
50/60Hz
100-240V
 50/60Hz
220-240V
50/60Hz

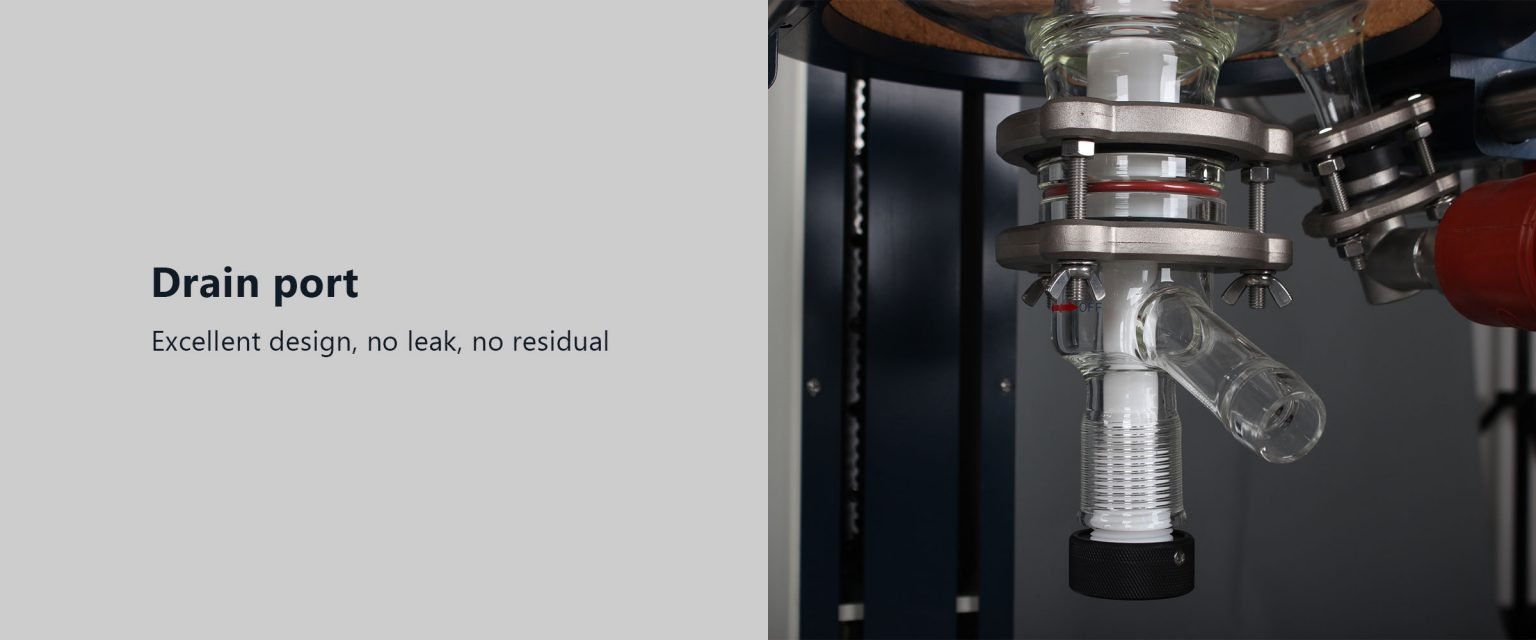

Drain port

ground clearance

355mm320mm355mm320mm355mm320mm

Dimensions mm

(W×D×H)

840×625×1780845×640×1780870×580×1910845×640×1910870×580×1910900×690×2050900*690*2100900×690×2050


Technical Data 2:

ModelIGR-100IGR-100CEIGR-100Ex
Vessel volume100 L
Jacket volume25 L30L
Feeding flask volume10 L
Receiving flask volume20 L
Glass materialHigh borosilicate glass 3.3
Frame and connection parts materialSUS304SUS304 + aluminum plate 6061-F sprayingSUS304
Operating pressureOrdinary or negative pressure
Working temperature-80~200℃
Condenser cooling area0.954 m²
Stirring speed50~500rpm20~500 rpm50~500rpm
Power supply220-240V, 50/60Hz100-240V, 50/60Hz220-240V, 50/60Hz
Drain port ground clearance340mm
Dimensions(W×D×H)1200×790×2360mm1270×810×2360mm1200×790×2360mm
