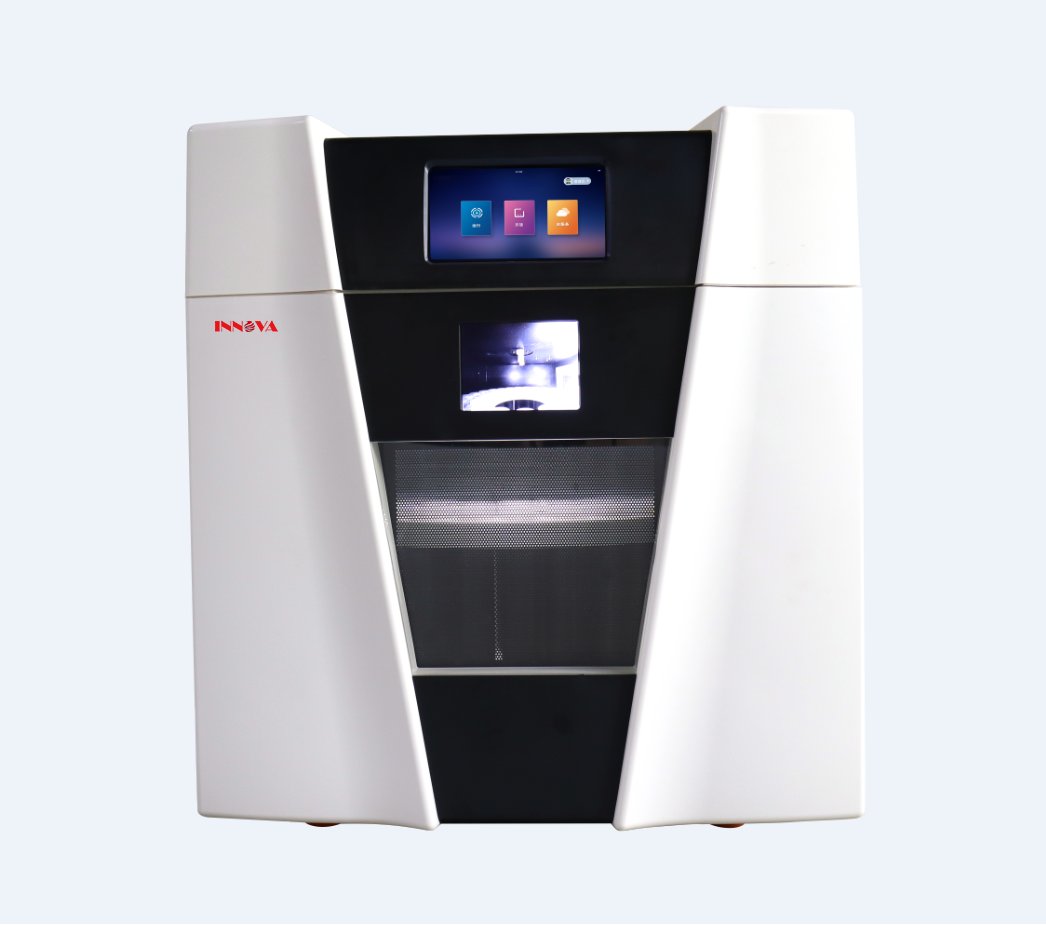

SUPER-455 Microwave Digestion Workstation

12-vessel Highthroughput processing capacity, meeting the needs of all kinds of sample preparation;Advanced multicore integrated optical fiber temperature control system, with precise temperature control and uniform digestion; UCOS-II operating system, with remote control observation, easy and comfortable operation; Aerospace fiber outer vessel, COT real-time temperature and pressure abnormity monitoring system and other multiple safety protection design;

FEATURES

Description:

12-vessel Highthroughput processing capacity, meeting the needs of all kinds of sample preparation;Advanced multicore integrated optical fiber temperature control system, with precise temperature control and uniform digestion;

UCOS-II operating system, with remote control observation, easy and comfortable operation;

Aerospace fiber outer vessel, COT real-time temperature and pressure abnormity monitoring system and other multiple safety protection design;


Applications:

Microwave digestion technology heats reagents and samples in closed containers through microwave penetration and activation. It greatly speeds up reaction and shortens sample preparation time, with increased pressure and reaction temperature in digestion vessel. Microwave digestion is a commonly seen digestion technology widely applied in many fields.


Main Features:


Comprehensive safety guarantee, combined with anti-corrosion capability

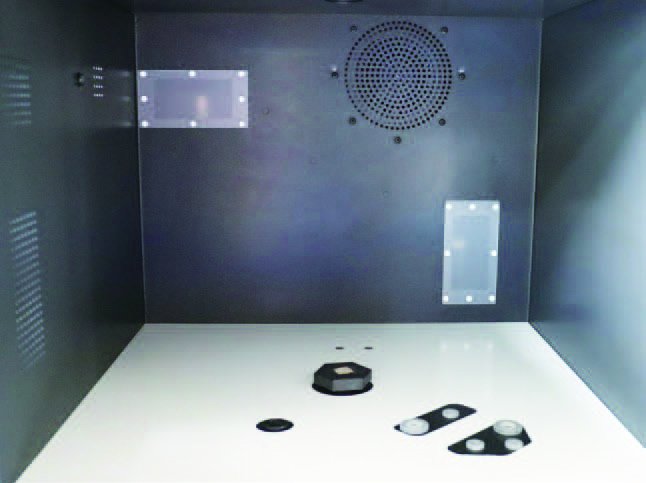

The furnace cavity is made of Grade 316L stainless steel, with a warranty of 5 years. The 3D adjustable, explosion-proof security door, installed with buffer and choke (to prevent microwave leakage), is self-sealing, impact-resistant and with interlocking linkage mechanism. The aerospace composite fiber outer vessel, wholly sprayed with PFA coating, boasts both higher anti-corrosion and higher pressure-resistance levels, compared to those of PEEK materials. The 70MPa pressure-resistance and the 600 ° C heat-resistance capabilities guarantee the safe operation of users under extreme conditions.


Dual magnetron inverter control system ensures consistent sample digestion

SUPER-455 Microwave Digestion Workstation adopts dual magnetron inverter control system and high-frequency closed-loop PID control, thereby realizing microwave continuous non-pulse output, more uniform microwave field in the cavity, higher energy utilization rate, and consistent sample digestion.


Two LCD screen, displaying real-time operation and experiment status

The 7-inch color LCD touch screen displays real-time data, such as temperature, power, time, and steps. Swift switch to display of coordinate curves greatly facilitates users to better know what is going on with the experiment. The 5-inch color LCD screen allows clear, real-time observation of operation inside the furnace cavity. Equipped with interfaces, such as USB, network port or Wi-Fi, the vessel, once permitted, can be remotely operated and monitored through computer or Pad.


Full-vessel pressure control technology

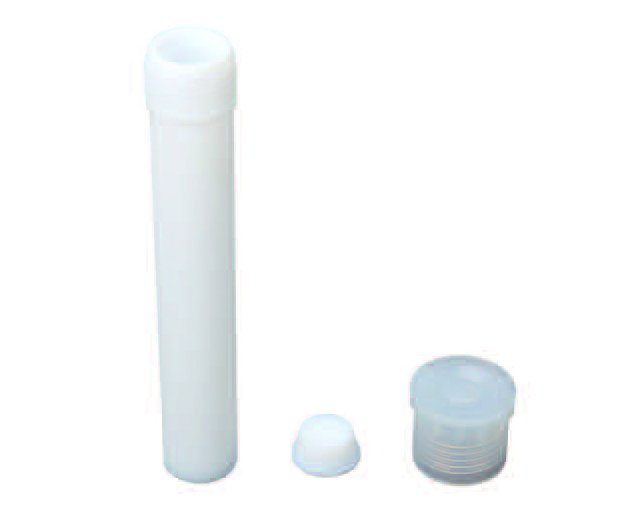

The high-pressure digestion vessel adopts elastic pressure relief and self-sealing technology. Under normal operation conditions, the vessel is completely sealed without leakage. Under overpressure conditions, the pressure is automatically and safely released together with excessive reaction gas (CO2 and nitrogen oxides); then, it is immediately sealed, ensuring smooth progress of subsequent experiments.


Full-vessel precise temperature control and monitoring, ensuring safety and digestion performance

Non-contact mid-infrared sensors at bottom monitor and visualize real-time temperature change of sample solution inside each digestion vessel. The whole vessel temperature control system effectively monitors abnormal conditions during digestion experiment. Once abnormal temperature is detected, the vessel immediately stops microwave emission and starts to sound the alarm, so that experimental safety is not disturbed.

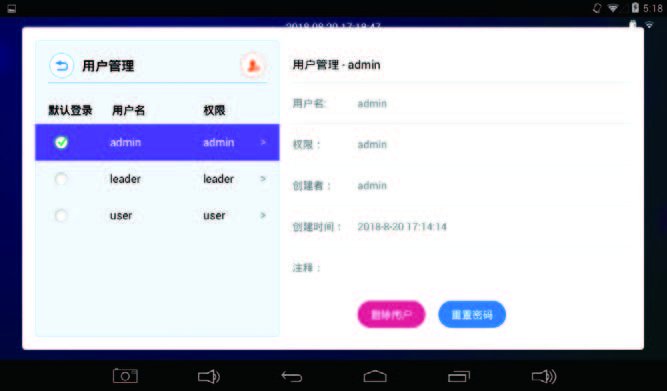

Smart software operation, conforming to FDA21CFRPart11

The vessel, running on the Android operating system, is convenient and multi-functional. It offers many functions, such as electronic signature, hierarchical permission and audit trail, all in conformity with relevant regulations of FDA21CFRPart11. The software automatically identifies model of the turntable and automatically counts the number of vessels, making the experiment easier and faster, with the absence of tedious manual counting and input.

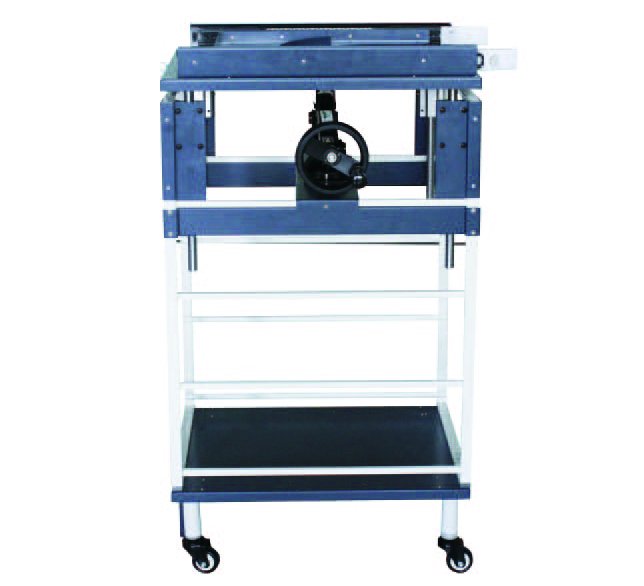

Various supporting tools, making experiment easy and convenient

Various tools are supplied to reduce workload for operators and improve the work efficiency of sample preparation. For example, a mobile and flexible tool trolley is able to transfer rotor loaded with sample into and out of furnace cavity, avoiding direct contact between operator and digestion vessel for safety concerns.



SPECIFICATIONS

SUPER-455 Microwave Digestion Workstation Parameters:

Power220~240VAC50/60Hz20A
Working environment temperature0~40℃
Relative humidity for working environment15~80%RH
Microwave source2450MHz; Maximun microwave output power 2000W, emitted from Dual magnetron inverter high-energy microwave field;

non-pulse continuous microwave output
Installed power3800W
Microwave cavityGrade 316L stainless steel microwave resonant cavity, with a wall thickness of more than 3mm, sprayed with multi-layer PFA coating
Furnace exhaust systemAutomatically adjusted air volume; cooling to room temperature in less than 15 minutes
Software systemAndroid operating system (8G memory), built-in video SOP, application method library, electronic door lock, etc.
Overall physical size/net weight600×685×660 (W*D*H)62kg
Batch amount40vessels
Inner vessel materialTFM
Outer vessel materialAerospace composite fiber with TEFLON coating
Inner vessel volume55mL
Maximum temperature300℃
Maximum pressure15Mpa


BROCHURE

Innova SUPER-455 Microwave Digestion System Brochure

File Type:.pdf File Size:2.27 MB
