Knife Mill


Knife Mill

INNOVA Knife Mill brings fast and reliable homogenized pulverization results to samples containing water and oil, making your random sampling a representative typical sample.

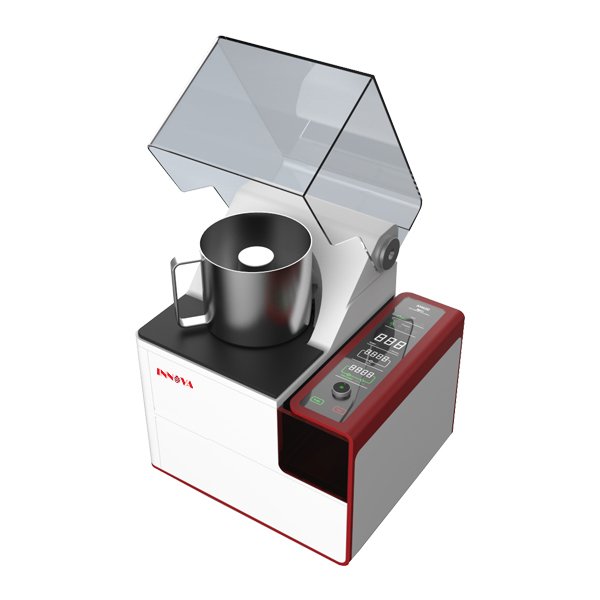

IMK600S Technical features


High speed and more efficient grinding.

Wide range of accessories and wide range of applications.

Sample vessel easy to clean and exchange.

The plugged structure rotor and containers, all grinding sets can be sterilized at high temperatures and high pressure.

One button operation, more easily.

Data digital display, memory 4 groups.

Run mode, interval、forward、backward, quick.

The instrument is equipped with a safety lock device, the machine cover can not be opened during grinding, and the instrument can not start when the machine cover is opened. Ensure the safety of operators and meet CE certification.

Knife-serrated blades make hard samples, and fat samples better homogenized.

The cover can be automatically switched.

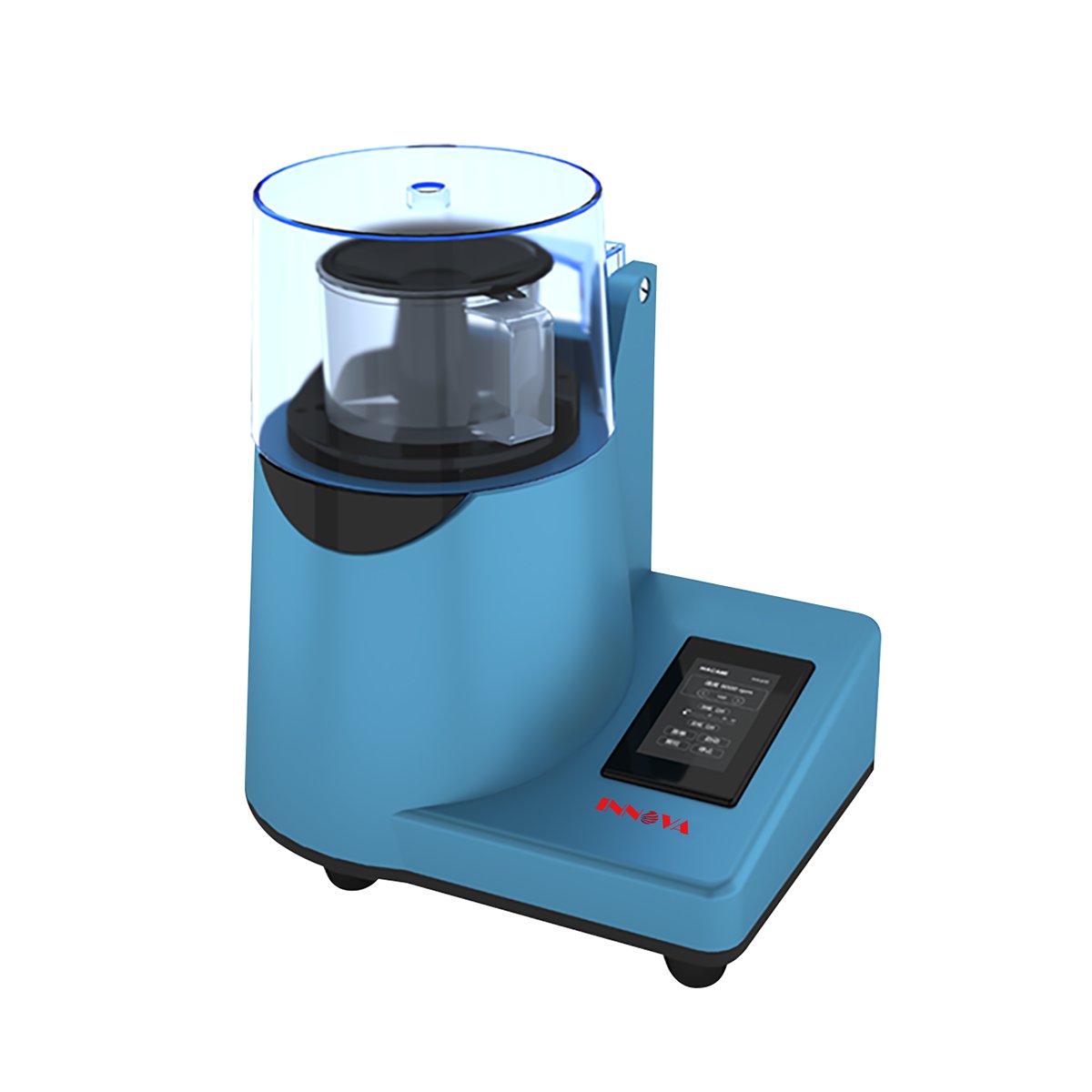

IMK600E Technical features

Can grind samples containing large amounts of water, lipids, or fibers.

Can withstand low temperatures, and grind frozen samples.

With intermittent mode, reversal mode, and point-moving mode.

Meets the highest standards of safe operation and functionality.

During the grinding process, the gravity top cover can be manually controlled to move up and down to ensure better sample homogeneity.


Sample typeDry, elastic, hard, brittle, fibrous, soft, medium-hard, moisture, oil, fat
Feed size10-50mm
Final finenessApprox. 300µm
Feeding quantityMax. 700ml
Setting Speed1000-12000rpm
Knife diameter and line speed118mm/about 12.4-62m/s
Grinding environment rangeDry, Wet, Low temperature grinding
Grinding containers and material1L,stainless, PC
Setting time1s-5min, digital display
Run modeInterval,forward, backward, quick
Knife materialStainless steel, titanium
Parameter storage4 groups
Net WeightApprox. 19kg
Electrical parameters220V/1100W

Feed size≤50mm
Final fineness≤300μm
Motor speed2000-10000rpm
Feeding quantity300-700mL
Setting grinding time00:01~09:59 h/min
Number of blades2
Capping modeDuring the grinding process, the gravity top cover can be manually controlled to move up and down
Rated power1.1KW
Power supply220V 50HZ
Package Size466×550×630mm
Net Weight26Kg
