Features:

Slide Dryer SD-H and Water Bath WB-P

• Touch-type high-definition LED digital display, equipped with heating status indicator light.

• The water bath, floatation workstation , and slide dryer machines are independent and can be combined, and can be combined online to save power ports.

• Equipped with double high-precision temperature sensors.

• Multiple temperature measurement, uniform and constant temperature control, intelligent temperature control.

• The separate water bath dish and the separate drying table are interchangeable, making replacement easy.

• The drying tank is equipped with a temperature measurement, draining and drying platform. Drain the liquid first and then dryer the slices. The tissue is not easy to slide down and prevents blistering of the slices.

• Equipped with a sealing wax tank, the tissue wax block is

• sealed and protected when the sectioning is completed, reducing the number of processes.

Floatation Bath FB-P， FB-2, and FB-3

• Temperature measurement block imported from USA with high precision, reliable performance

• New heating element, fast heating, long life, energy saving

• Unique temperature measurement design, directly collects the working environment temperature.

• With memory function, the set temperature is automatically retained after operation

• Triple overheat protection device, safe and reliable

• Low voltage DC lighting system, no glare, more clear observation

• With lighting brightness adjustment.

• With display brightness adjustment function. (FB-2 and FB-3)

• It can be preset to switch on and off at any time every week, and it can be timed for the whole machine, water bath or hot plate separately. (for FB-2 and FB-3)

• Portable wax sealing table, easy to operate, multi-purpose, value experience (optional for FB-2 and FB-3)

Technical parameter:

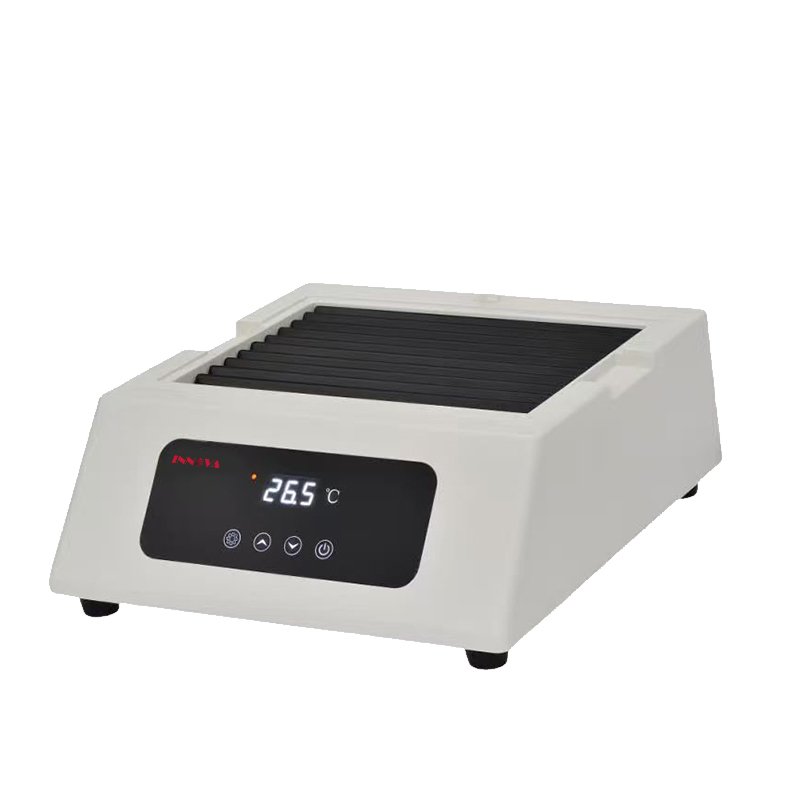

Slide Dryer SD-H

Dimensions of drying station: 256x188x52mm(W×D×H)

Capacity of drying station:100 slides (10 rows, 10 slides in each row)

Dimensions of wax sealing stand:74x46x5mm(W×D×H)

Temperature setting range:0~99℃

Drying table slope angle: 60°

Working Voltage: AC 100V~120V/AC 220V~240V

Power frequency:50Hz/60Hz

Power: 350W

Dimensions:330x375x130mm

Net weight:6 kg

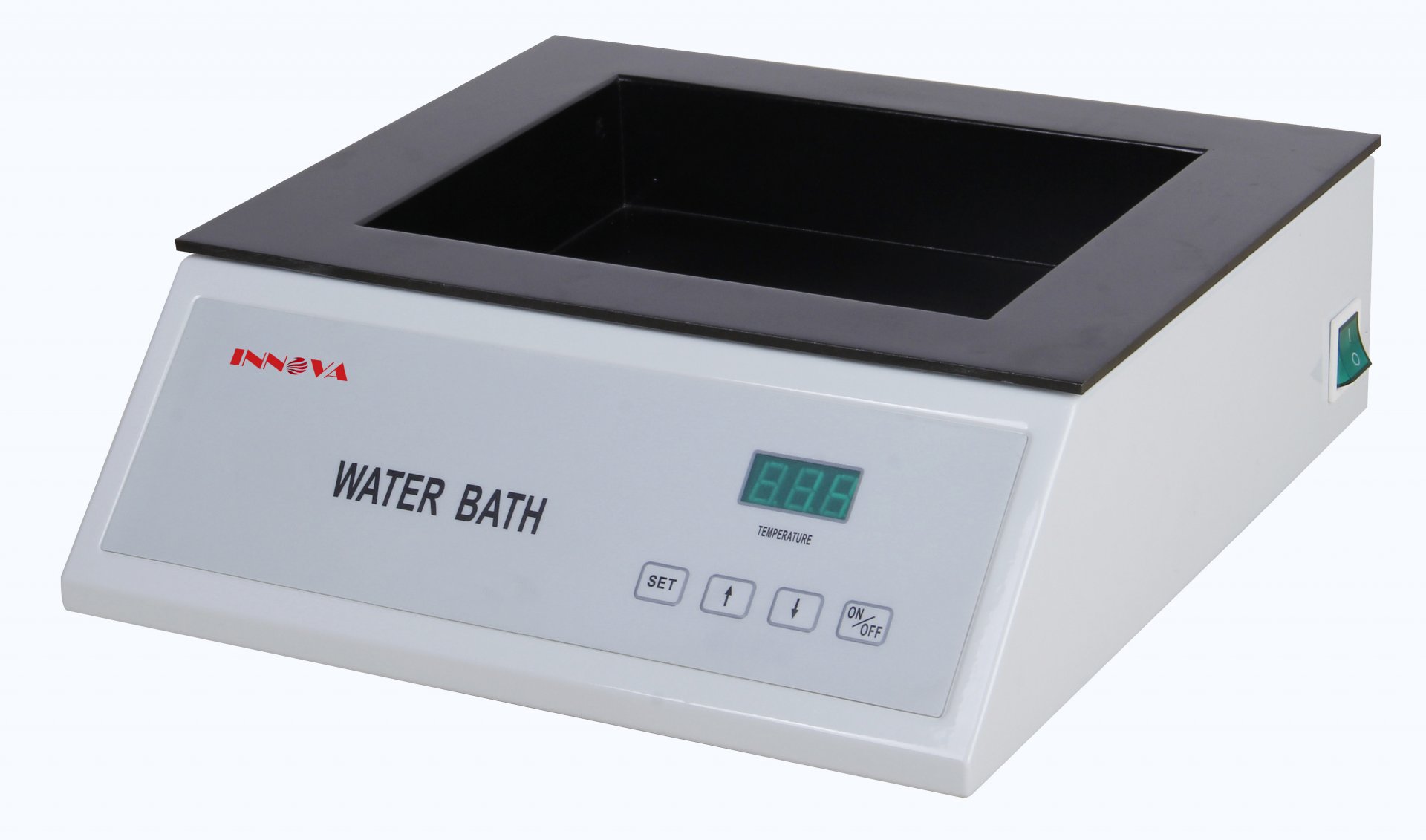

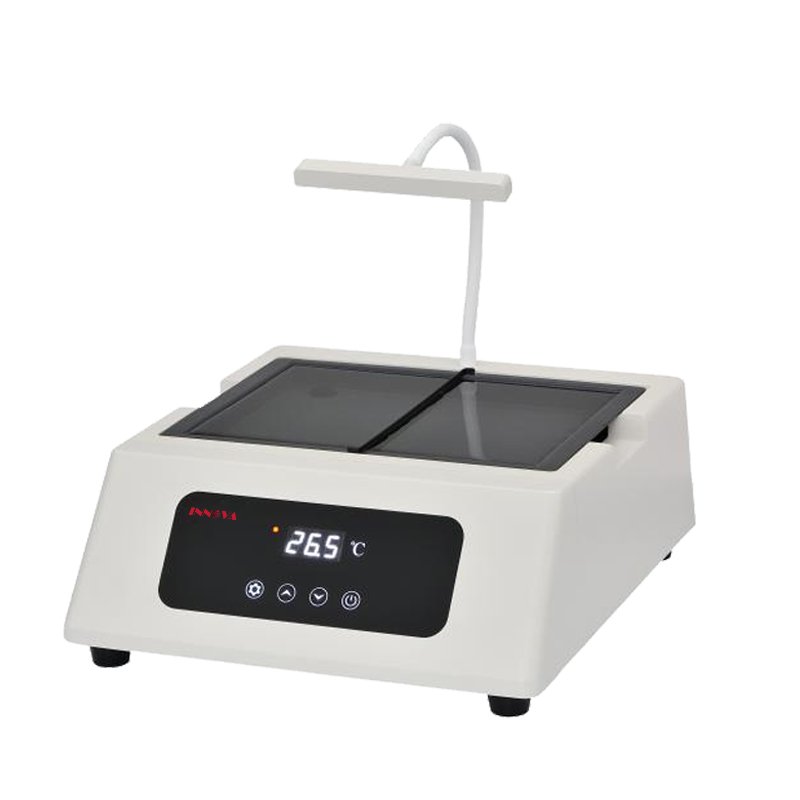

Water Bath WB-P

Dimensions of water bath dish: 247x182x55 mm(W×D×H)

Capacity of water bath dish: 2.3L

Temperature setting range:0~99℃

Light brightness adjustment: 0~5 levels

Working Voltage: AC 100V~120V/AC 220V~240V

Power frequency:50Hz/60Hz

Power:350W

330x375x130 mm

Net weight:5kg

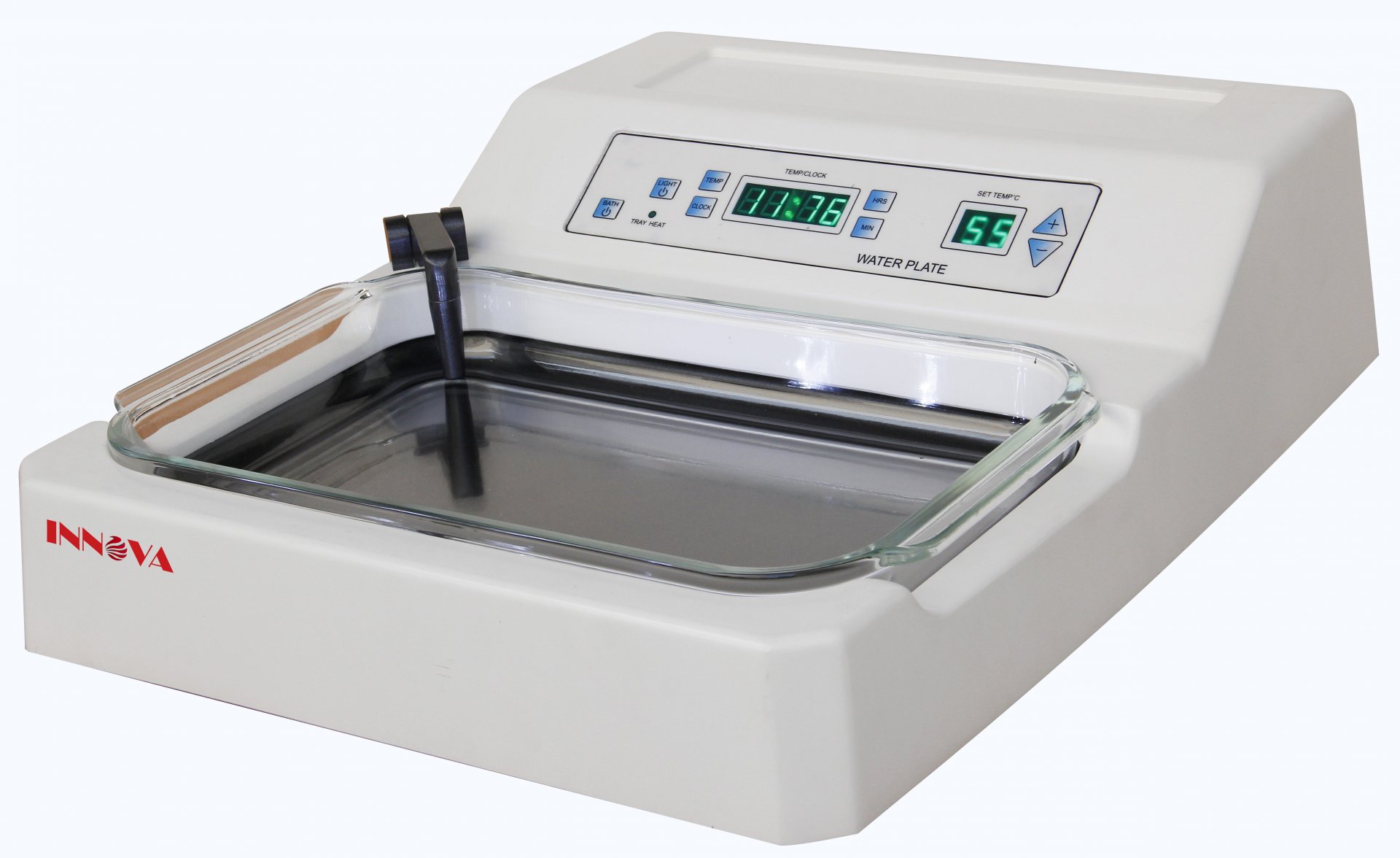

 Floatation Bath FB-P

Dimensions of bath bowl: 350mm×220mm×45mm

Temperature range: 0 - 85℃

Temperature Control Precision: ±1℃

Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz

Power: 400W

Dimensions: 515×420×150mm (W×D×H)

Net weight: 9 kg

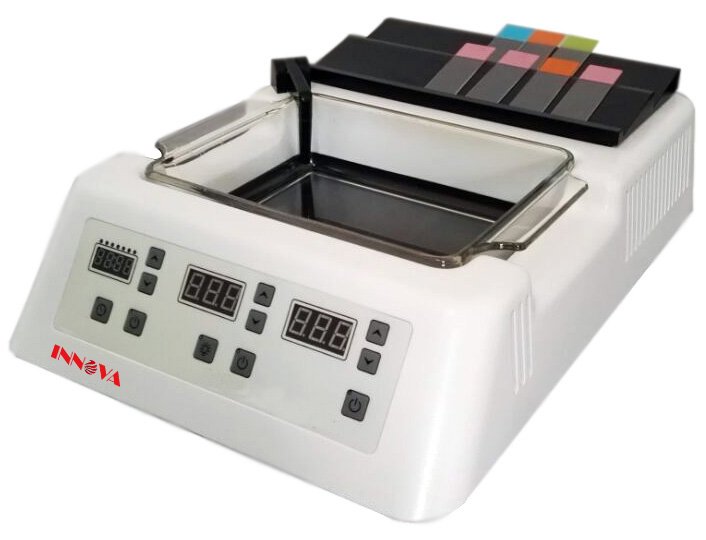

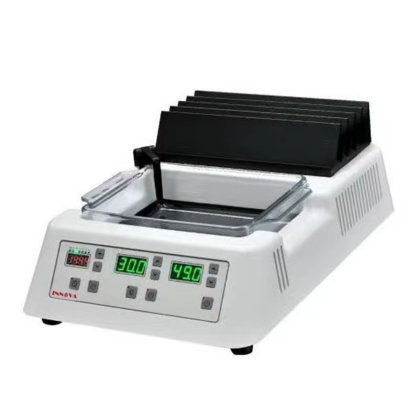

 Floatation Bath FB-2

Temperature range of water bath: RT - 70℃;

Temperature range of slide dryer: RT - 100℃

Dimensions of water bath dish: 210×170×55mm(L×W×H)

Dimensions of drying station(50pcs slides): 255*130mm

Working Voltage: AC100V-120V /AC 220V-240V

Power frequency：50Hz /60Hz

Power:400W

Dimensions: 310×460×135 mm (L×W×H)

Net weight: 6kg

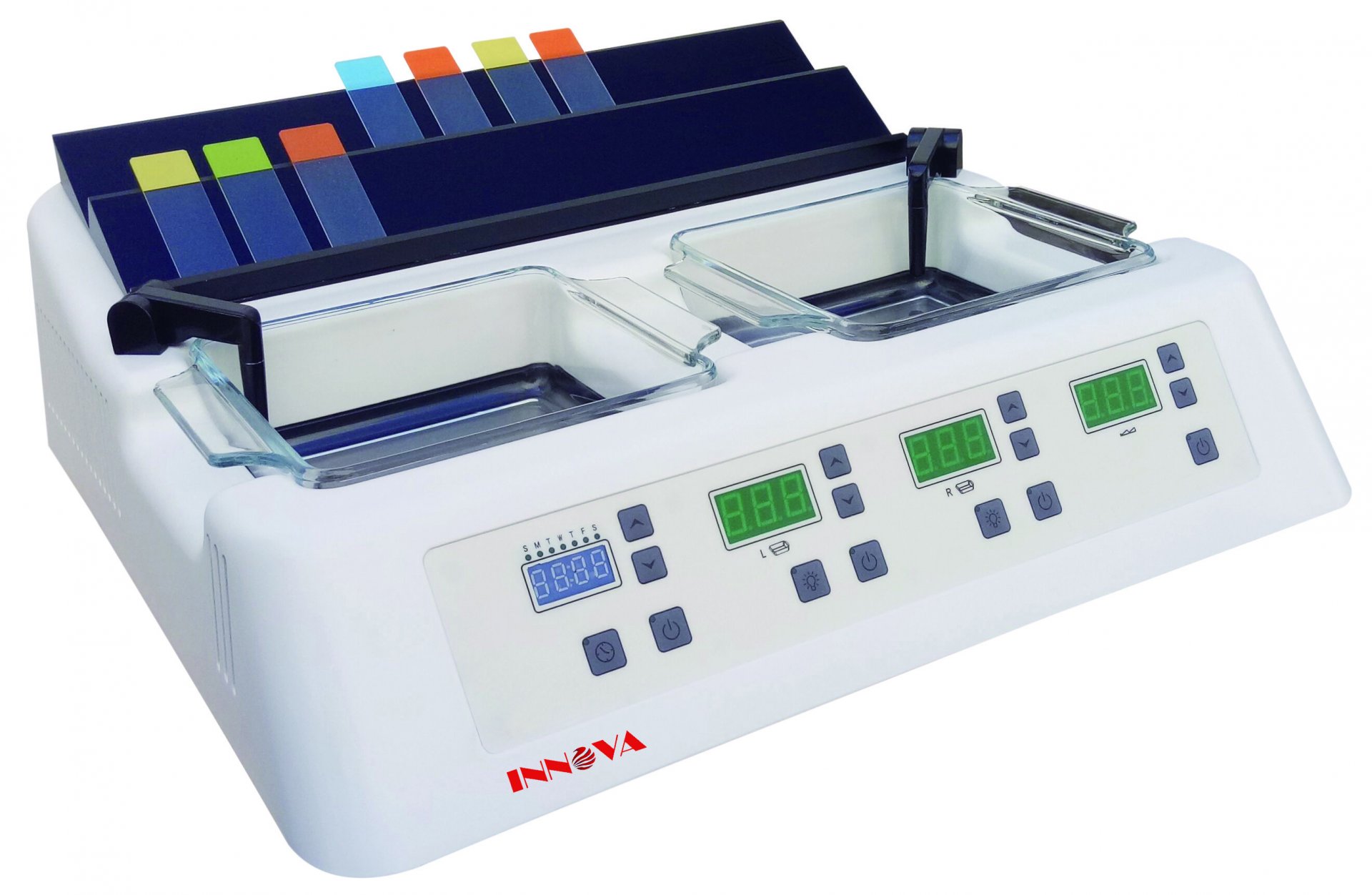

 Floatation Bath  FB-3

Left Temperature range of water bath: RT - 70℃; automatically maintained

Right Temperature range of water bath: RT - 70℃; automatically maintained

Temperature range of slide dryer: RT - 100℃; automatically maintained

Automatic memory and restoration functions: After startup, all preset temperature data are automatically stored in the system.

Temperature Control Precision:±2℃

Dimensions of water bath dish: 155×155×55mm(W×D×H)

Dimensions of drying station(32pcs slides): 405×130mm(W×D×H)

Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz

Power: 600W

Dimensions: 475×460×175 mm (W×D×H)

Net weight: 10kg
