Tissue Stainer


Tissue Stainer

The tissue staining machine is mainly used for the automatic staining of paraffin sections, frozen sections, and cells attached to glass slides in the fields of histology, pathology, and biology.



Tissue Stainer TS-1


  • Integrated imported high-quality LCD touch-screen with intuitive software offers a clear display, prompt response, high efficiency, and simple operation

  • The unique ergonomic design of the staining protocol meets different users’ needs.

  • Low noise, wear-resistant flexible transmission system using imported high-quality materials and elements to ensure reliable performance

  • An intelligent automatic water influx/efflux/drainage system ensures the cleanness of water used in each step and improves water efficiency

  • The special staining basket allows prompt staining of dozens of slides, which is a safe, reliable, and green process

  • Slides are rinsed and cleaned with circulating water, and it has a drying function.

Tissue Stainer TS-2


  • Imported high-quality parts, smooth operation, low noise, ergonomic design

  • Fully intelligent design, enabling timely determination and automatic recovery in an abnormal event

  • Wide LCD touch screen and convenient human-machine interface provides the user with clear and sufficient information about working status (online help)

  • Processing duration is automatically calculated and displayed on the screen, allowing the user to develop a more efficient work plan

  • 4 sets of editable programs in each Chinese and English can be stored in the system and can be queried online

  • Intelligent automatic water influx/efflux/ pressure-control system and water drainage system ensures sufficient washing performance at each step and improve water efficiency

  • 36 processing and staining protocols can be programmed and stored in the system, including an operation error alert function

  • Green inner-cycling air purification system to efficiently adsorb and remove poisonous gas

  • Real-time visual simulation with icons displays the working status dynamically, clearly, and intuitively

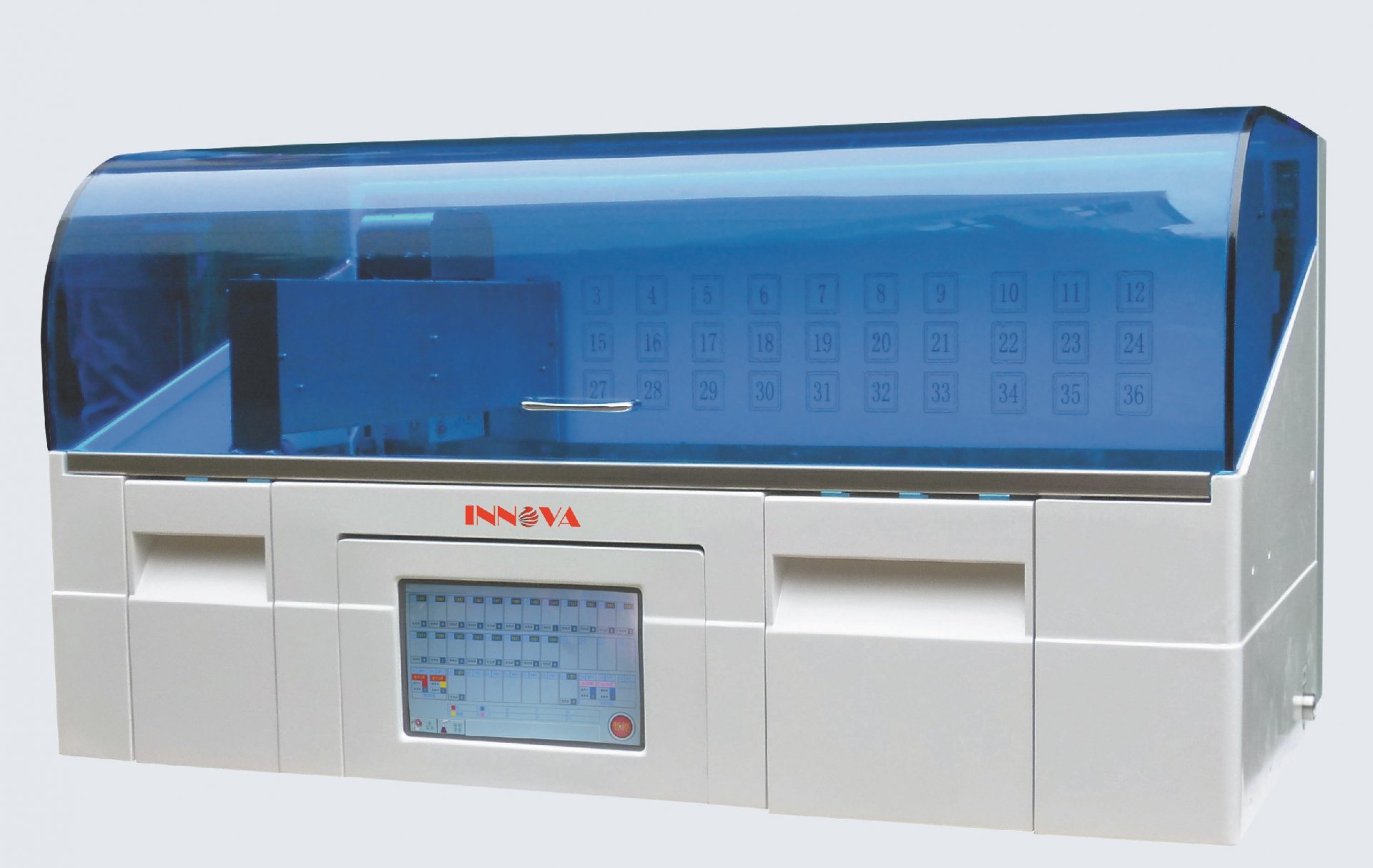

Tissue Stainer TS-5


  • Electronic Module Design. the stainer meets requirements for either conventional staining or special staining. for different laboratories.

  • And staining can achieve simultaneously or individually for good affection.

  • The color Touch screen makes date-in and searches convenient, and different staining programs,s and progress are displayed in the interface.

  • The staining program started with color code, and it was constantly shown on the Interface.

  • 10 Sets of programs and 10 pcs staining rack can be processed simultaneously, and any program runs at any time.

  • 26 Reagent Stations, two of which can be standby stations. It optimizes staining progress when several staining rack works simultaneously.

  • The staining rack enters and comes out by up and downloading drawers.2 racks for upload, and 3 racks for download.

  • Mechanical arms reach any station in 1 second at high speed.

  • The rising and Falling Frequency for the staining rack can be set

  • The capacity of staining: 400pcs slides in one hour


Technical parameter:

Tissue Stainer TS-1

Number of Processing Cups: 14 (12 cups for reagents, the one at the 8th station for washout, and the one at the 1st station for drying)

Length of Processing Time for each station: Adjustable within 0 min 0 s - 59 min 59 s for each station

Capacity of Single Cup: 1500ml;

Number of slides to be processed at same time: 72pcs

Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz

Power Requirements: 500W

Dimensions: 1180×420×470 mm (W×D×H)

Net weight: 70kg

Tissue Stainer TS-2

Number of Cups: 18 (Station 10 is for washing and Station 1 is for drying)

Number of slides processed at the same time: 52 slides

Length of Processing Time in the Cup:

Adjustable within 0 - 59 minutes and within 0 -59 seconds

Dripping Time: Adjustable within 0-30 s (shakes above cup)

Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz

Power: 500 W

Dimensions: 1175×460×470 mm (W×D×H)

Weight: 71kg

Tissue Stainer TS-5

Capacity of Staining Rack:30pcs slides

Loading Capacity:up to 10 different Racks for different programs (Continuous Loading)

Numbers of Station:36

Numbers of Reagent station:26

Numbers of Washing Tank:5

Capacity of Reagent Station:500ml

Numbers of Uploading:2

Numbers of downloading:3

Numbers of Programme:10

Touch Screen:10.4 inch colorful

Working Voltage: AC220V±10%,50/60HZ

Power Draw: 200W

Overall Dimension: 1050mm×615mm×590mm(W X D X H)

Net Weight:115kg
