Smart Halogen Moisture Analyzer for Efficient Moisture Content Measurement

Smart Halogen Moisture Analyzer
Smart Halogen Moisture Analyzer

Smart Halogen Moisture Analyzer

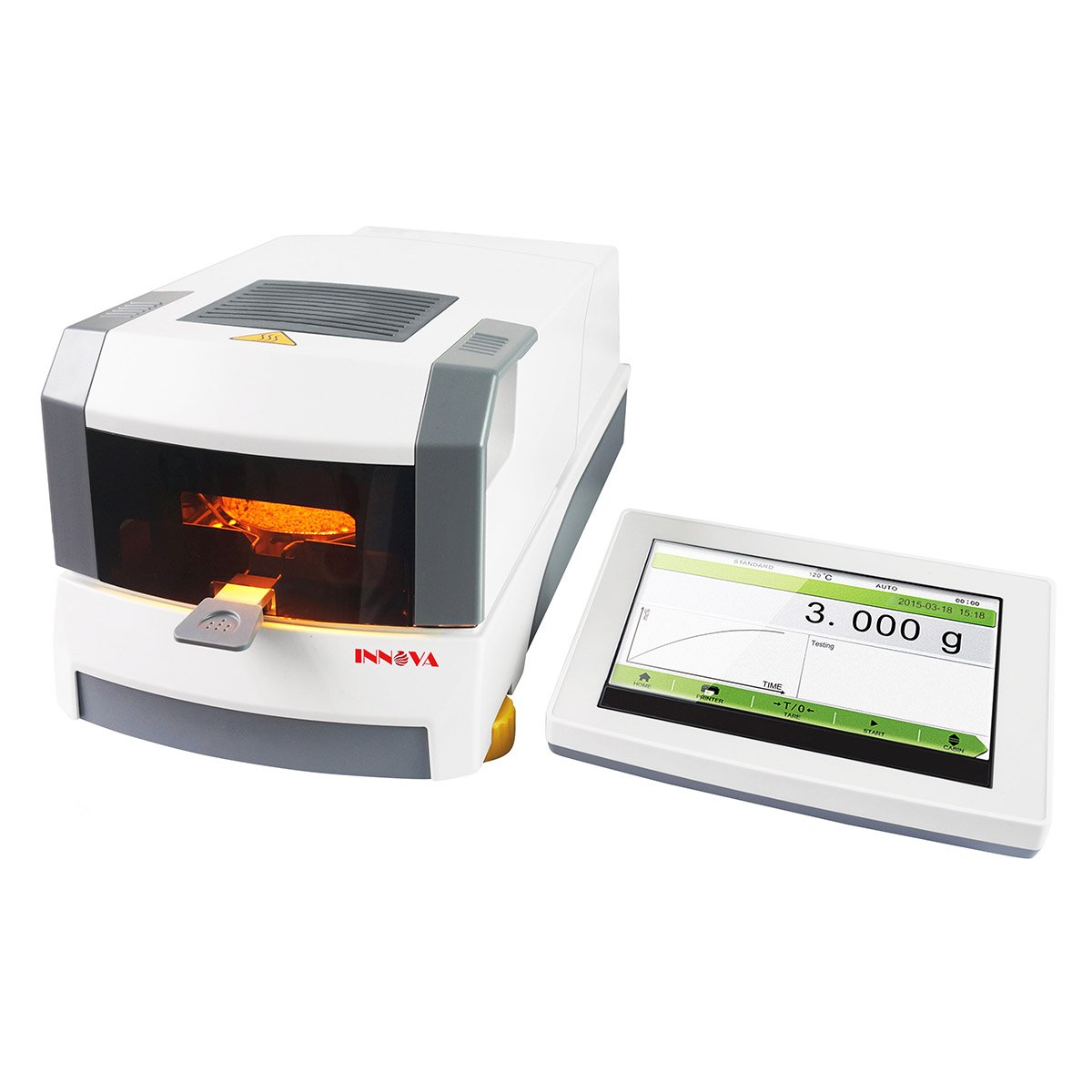

INNOVA Smart Halogen Moisture Analyzer (INO-MS, INO-MW-T) is equipped with a touch screen for easy operation. The moisture in the sample can reach the equilibrium endpoint within a few minutes to ten minutes to get the analysis result.

Inquire Now

FEATURES

INO-MS series



  • 7 inch touch screen

  • Automatic door/Transparent window

  • Highlight halogen lamp

  • Polymer materials/Heat resistant molding

  • Dual motor drive/Double fan design

  • Temp.control/Stainless steel chamber

  • Real-time dynamic curve/Date and Time

  • Temperature/Time set

  • The percentage of moisture content

  • Store historical set

  • Connect PC and printer

  • Option:Printer/USB

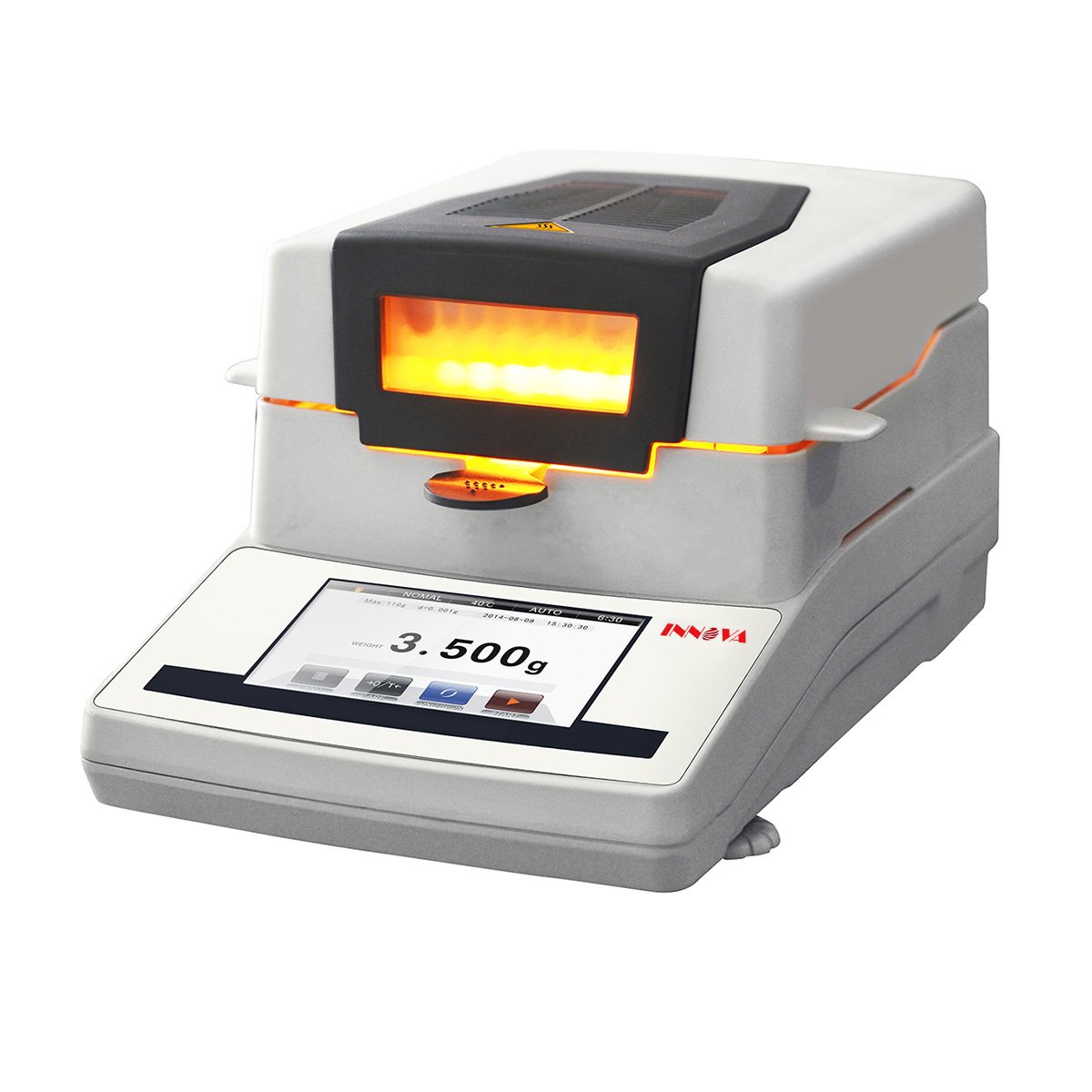

INO-100MW-T



  • 5 inch touch screen/CH and EN switch

  • Highlight halogen lamp/HBM sensor

  • Aluminum shell/Stainless steel chamber

  • Real-time dynamic curve/Date and Time

  • Temperature/Time set

  • The percentage of moisture content/dry residual

  • Store historical set

  • Option:Aluminum box/Printer/Grinder/USB


SPECIFICATIONS

ModeINO-100MSINO-100MS(plus)INO-200MSINO-200MS(plus)
ModeINO-100MW-T
Capacity110g210g
Range110g
Readability0.001g
Readability0.001g
Operating Temp5℃-35℃
Operating Temp5℃-35℃
Pan SizeØ100mm
Pan SizeØ90mm
Heat SourceHalogen Lamp
Heat SourceHalogen Lamp-2
Temp.SensorPT 100
Temp.SensorPT 100
Temp. Range40℃-230℃
Temp. Range40℃-199℃
Temp.Step1℃
Temp.Step1℃
Moisture Range0.00%-100.00%
Moisture Range0.00%-100.00%
Moisture Readability0.01%
Moisture Readability0.01%
Dry Range100.00%-0.00%
Dry Range100.00%-0.00%
Dry Readability0.01%
Dry Readability0.01%
Temp Setting40℃-230℃ By 1℃ Step
Temp Setting40℃-199℃ By 1℃ Step
Time Setting1-99min by 1 s
Time Setting1-99min by 10 s
Number of  Storage20
Number of  Storage20
Number of  History20
Number of  History20
Heater220V ±15% 50HZ / 110V±15% 60HZ / 400W
Heater220V ±15% 50HZ / 110V±15% 60HZ / 400W
BalanceInput: 220V 50HZ / 110V 60HZ, Output:9V
BalanceInput: 220V 50HZ / 110V 60HZ, Output:9V
MachineInput: 220V 50HZ / 110V 60HZ, Output:24V  (Dual-drive)
Packing Size490×350×360mm
Host Dimension215×195×415mm
Gross Weight7.5kg
Indicator Dimension200×75×135mm
Display5 inch touch panel
Operation Height275mm
CalibrationExternal Calibration
Chamber Height35mm
InterfaceRS232(Standard) / USB(Optional)
Display7 inch touch panel

InterfaceRS232(Standard) / RJ45/USB(Optional)
Communication ModeCableWirelessCableWireless
Rechargeable BatteryNo10,000mAhNo10,000mAh


BROCHURE

Moisture Analyzer

File Type:.pdf File Size:2 MB
