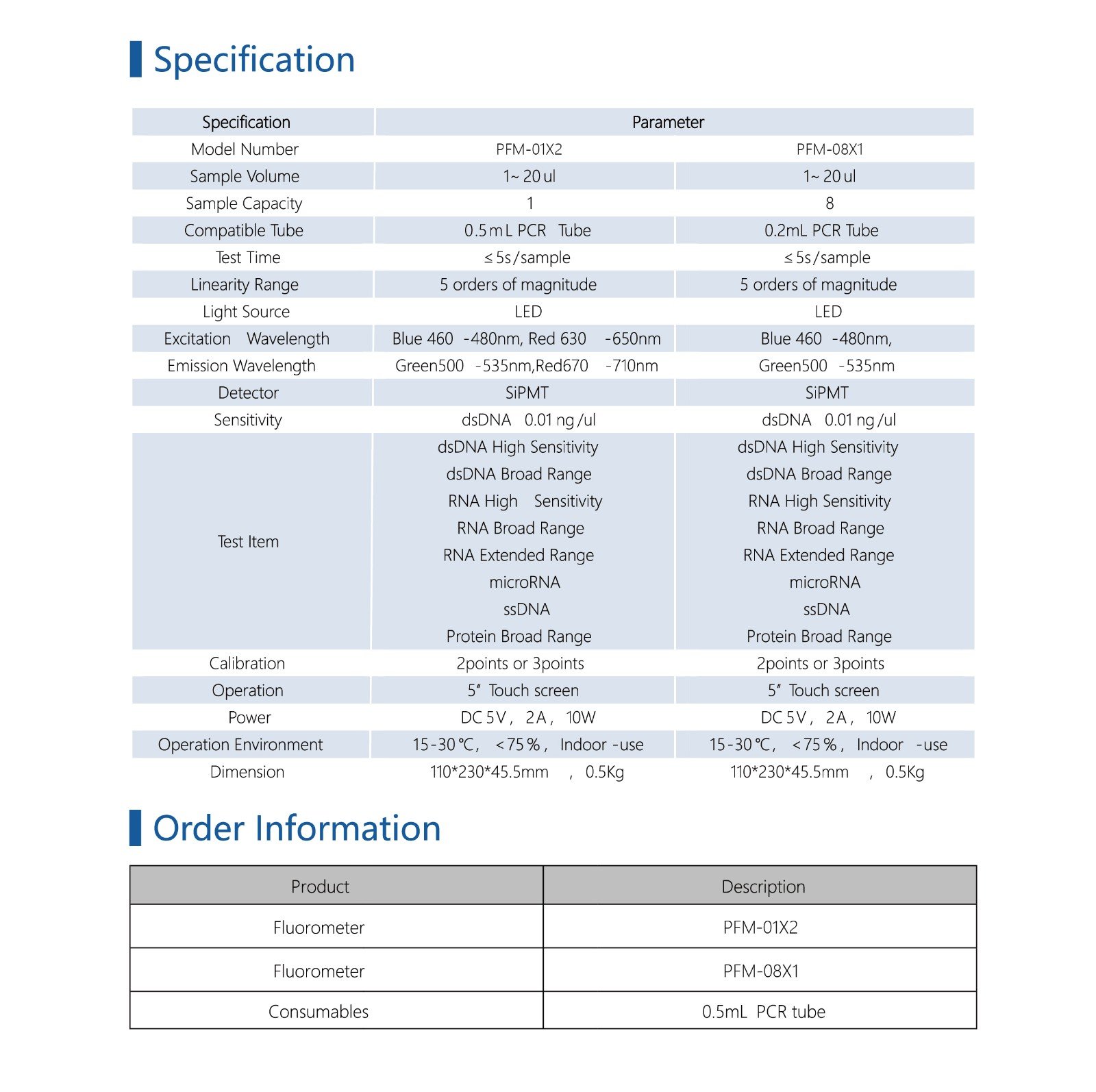

Model Number

PFM-01X2

PFM-08X1

PFM-08X2

Sample Volume

1~20ul

1~20ul

1~20ul

Sample Capacity

1

8

8

Compatible Tube

0.5mL PCR Tube

0.2mL PCR Tube

0.2mL Clear PCR Tube

Test Time

≤5s/sample

≤5s/sample

≤5s/sample

Linearity Range

5 orders of magnitude

5 orders of magnitude

5 orders of magnitude

Light Source

LED

LED

LED

Channel

1

1

2

Excitation Wavelength

Blue 460-480nm, Red 630-650nm

Blue  460-480nm

Blue 460-480nm, Red 630-650nm

Emission Wavelength

Green500-535nm,Red670-710nm

Green 500-535nm

Green500-535nm,Red670-710nm

Detector

SiPMT

SiPMT

SiPMT

Sensitivity

dsDNA 0.01ng/ul

dsDNA 0.01ng/ul

dsDNA 0.01ng/ul

Test Item

dsDNA High Sensitivity
dsDNA Broad Range
RNA High Sensitivity
RNA Broad Range
RNA Extended Range
microRNA
ssDNA
Protein Broad Range
Kinetic

dsDNA High Sensitivity
dsDNA Broad Range
ssDNA
microRNA
Protein Broad Range
Kinetic

dsDNA High Sensitivity
dsDNA Broad Range
RNA High Sensitivity
RNA Broad Range
RNA Extended Range
microRNA
ssDNA
Protein Broad Range
Kinetic

Calibration

2 points or 3points

2 points

2 points

Operation

5'' Touch screen

5'' Touch screen

5'' Touch screen

Power

DC5V，2A，10W

DC5V，2A，10W

DC5V，2A，10W

Operation Environment

15-30℃，<75%，Indoor use

15-30℃，<75%，Indoor -use

15-30℃，<75%，Indoor-use

Dimension

110*230*45.5mm，0.5Kg

110*230*45.5mm，0.5Kg

110*230*45.5mm，0.5Kg
