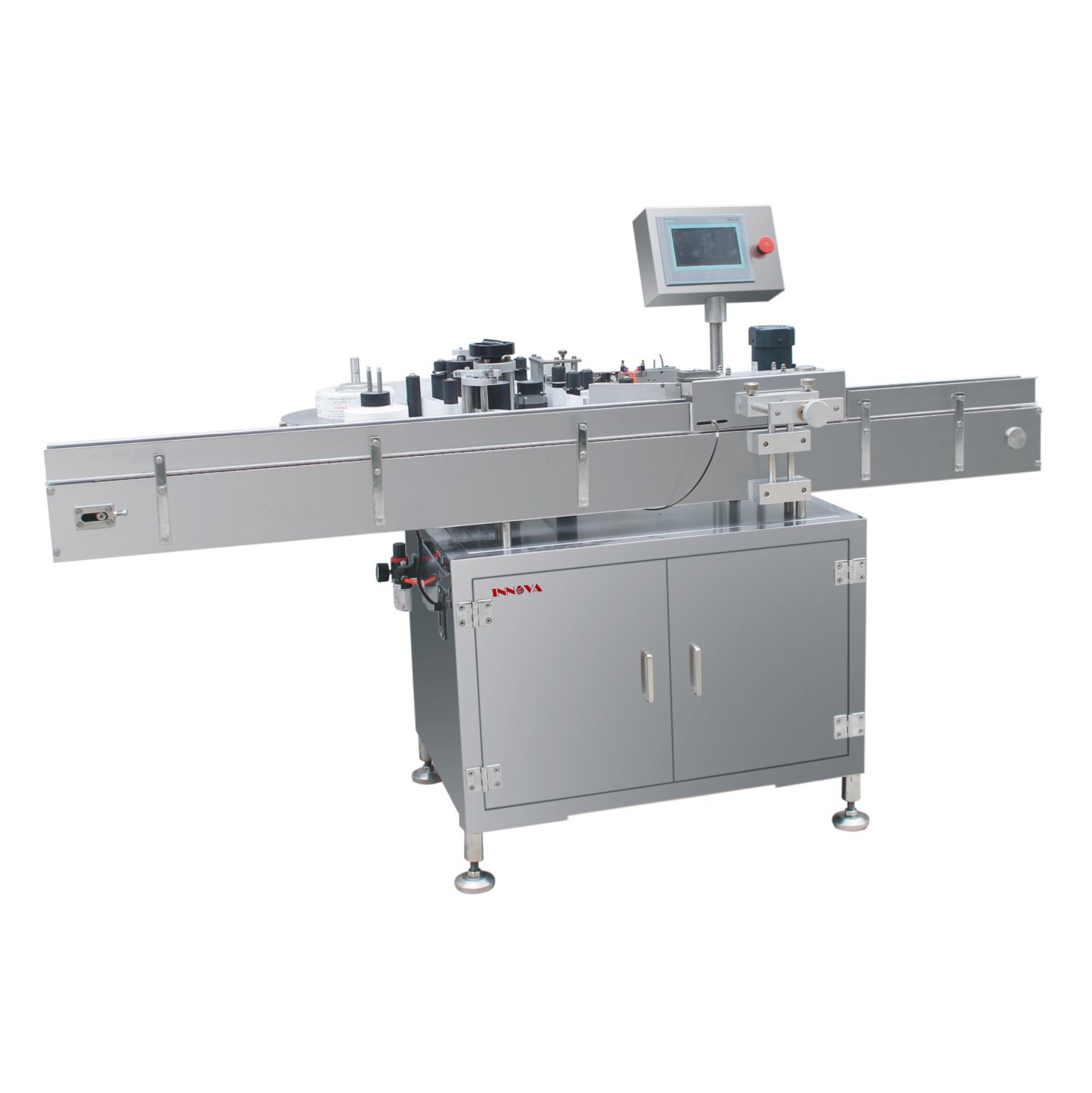

Vertical labeling machine
ILT is suitable for labeling round tube-type bottles and round objects. It is controlled by a stepping motor or servo motor.

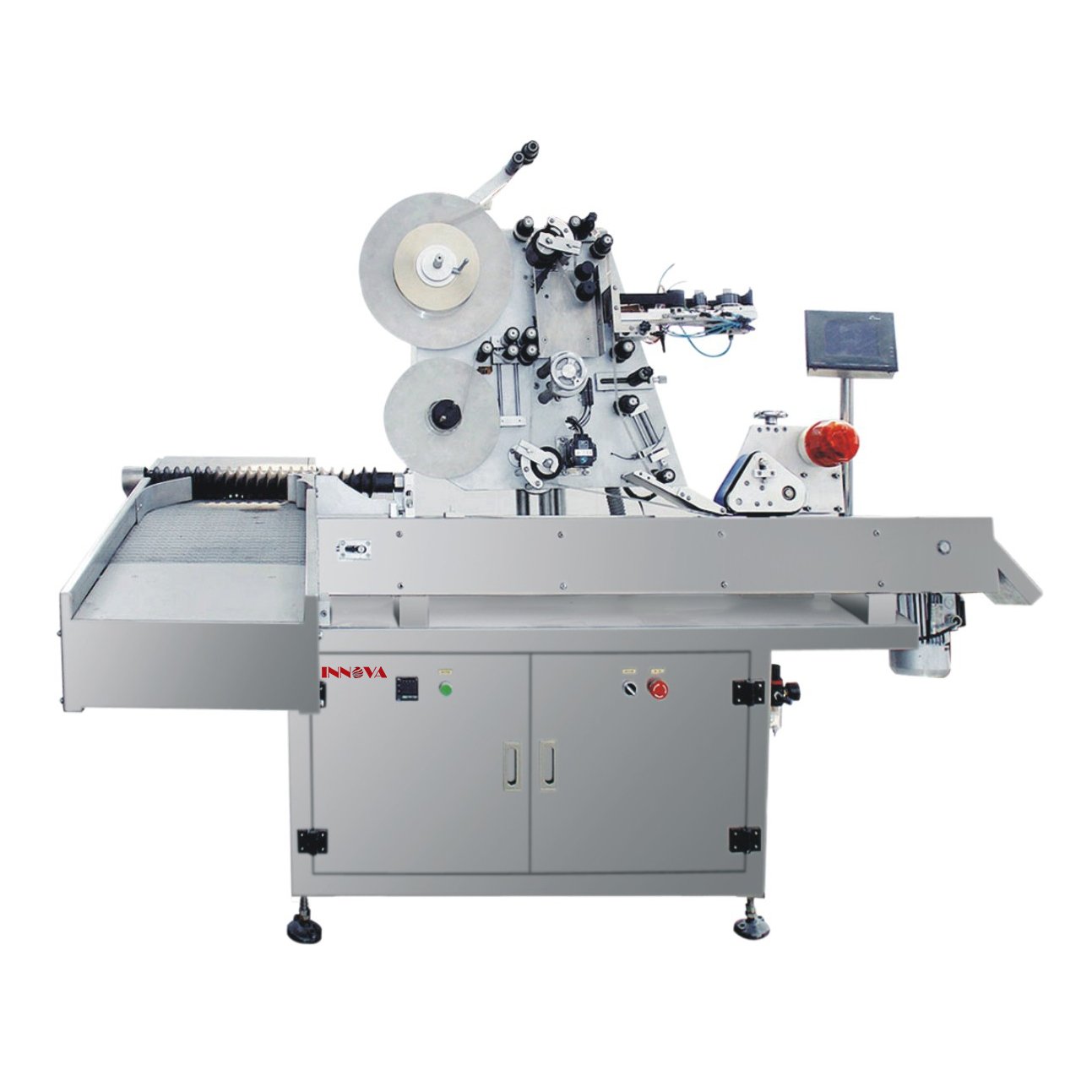

Horizontal labeling machine
IWT is suitable for labeling round tube-type bottles and round objects. It is controlled by a stepping motor or servo motor.
| Type | Labeling machine | |
| Vertical labeling machine | Horizontal labeling machine | |
| Model | ILT | IWT |
| Label length | 10-200 mm | |
| The inner diameter of the label’s core | 76 mm | |
| Outer maximum diameter | 350 mm | |
| Label width | 10-80 mm | |
| Label speed | ≤ 35 m/min | |
| Bottle range | 18-100 mm | |
| Total power | 0.8 kW | |
| Power supply | 220V 50Hz | |
| Total weight | 300 kg | |
| Overall size | 2000*600*1350 mm | 2150*700*1350 mm |
