Fluorescence Rejection By Shifted Excitation Raman Difference Spectroscopy (SERDS) INOPDRS

Fluorescence Rejection By Shifted Excitation Raman Difference Spectroscopy (SERDS)  INOPDRS
Fluorescence Rejection By Shifted Excitation Raman Difference Spectroscopy (SERDS)  INOPDRS

Fluorescence Rejection By Shifted Excitation Raman Difference Spectroscopy (SERDS) INOPDRS

INOPDRS adopts the international leading Fluorescence Rejection By Shifted Excitation Raman Difference Spectroscopy(SERDS). In the shifted excitation, the Raman signal is verysensitive to the excitation, but the fluorescence signal is not sensitive.The differential technology is used to reject the fluorescence. It candirectly measure high fluorescent substances, anti-interference, antinoise, improve the detection sensitivity and SNR of the whole system, filter out interference peaks (such as ambient light peak,fluorescence peak, etc.), retain only pure Raman peaks, and capturetiny signal difference.

FEATURES

  • Difference Ramanspectroscopy can effectively reject fluorescence;

  • Dual-band aser coupling technology;

  • High sensitivity and TE-Cooled CCD.

  • Ultra low noise circuit,

  • Powerful embedded software.

  • Can eliminate fluorescent background;

  • Search and display peak easy;

  • Liquid crystal screen: 10.1;

  • Android 6.0 operating system;

  • The 11.6-inch capacitivetouchscreensupports multi touch control;

  • USB 2.0;

  • Kindly Human Machine Interaction;

  • Battery > 4h;

  • Support LAN remote control;

  • IP67 dustproof and waterproof industry protection.

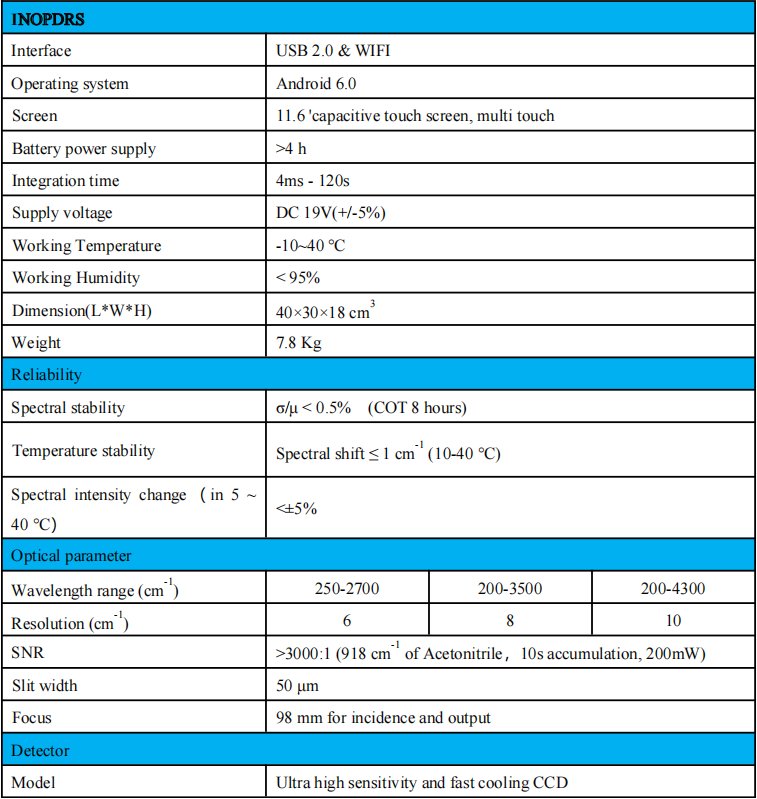

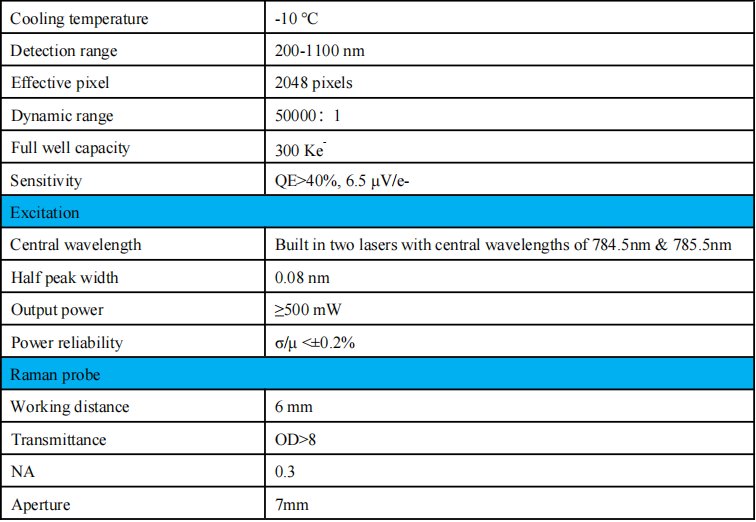

SPECIFICATIONS

BROCHURE

Portable Differential Raman Spectrometer-INOPDRS Series

File Type:.pdf File Size:3.68 MB
