Filling & Closing Machine

INNOVA can customize the entire filling line according to requirements of the production process, such as filling, stoppering and capping in any combination. Suitable for filling glass bottles or plastic bottles in pharmaceutical, healthcare, food industry, etc.

Inquire Now

None

FEATURES
SPECIFICATIONS
BROCHURE

FEATURES

1. Filling, stoppering, and capping machine

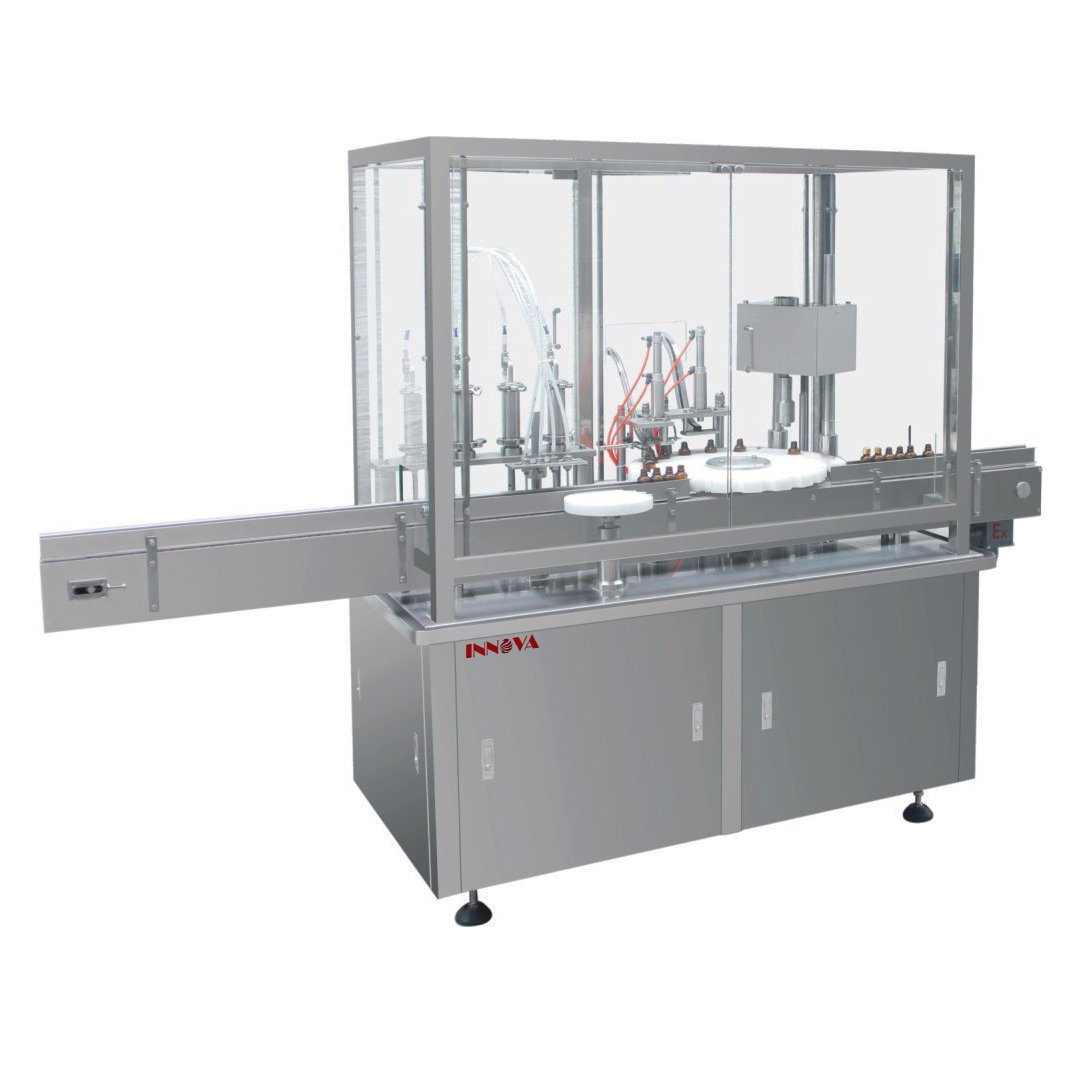

IGSZ is suitable for liquid filling, stoppering, and capping. Uses a single rail to feed the bottle, the bottle is transferred by conveying belt, and the dialing wheel positions the bottle.

2. Filling and stoppering machine

IGS series are suitable for liquid filling and stoppering. Use a single rail or dual rail to feed the bottle, the bottle is transferred by conveying belt, and the dialing wheel positions the bottle.

3. Filling and capping machine

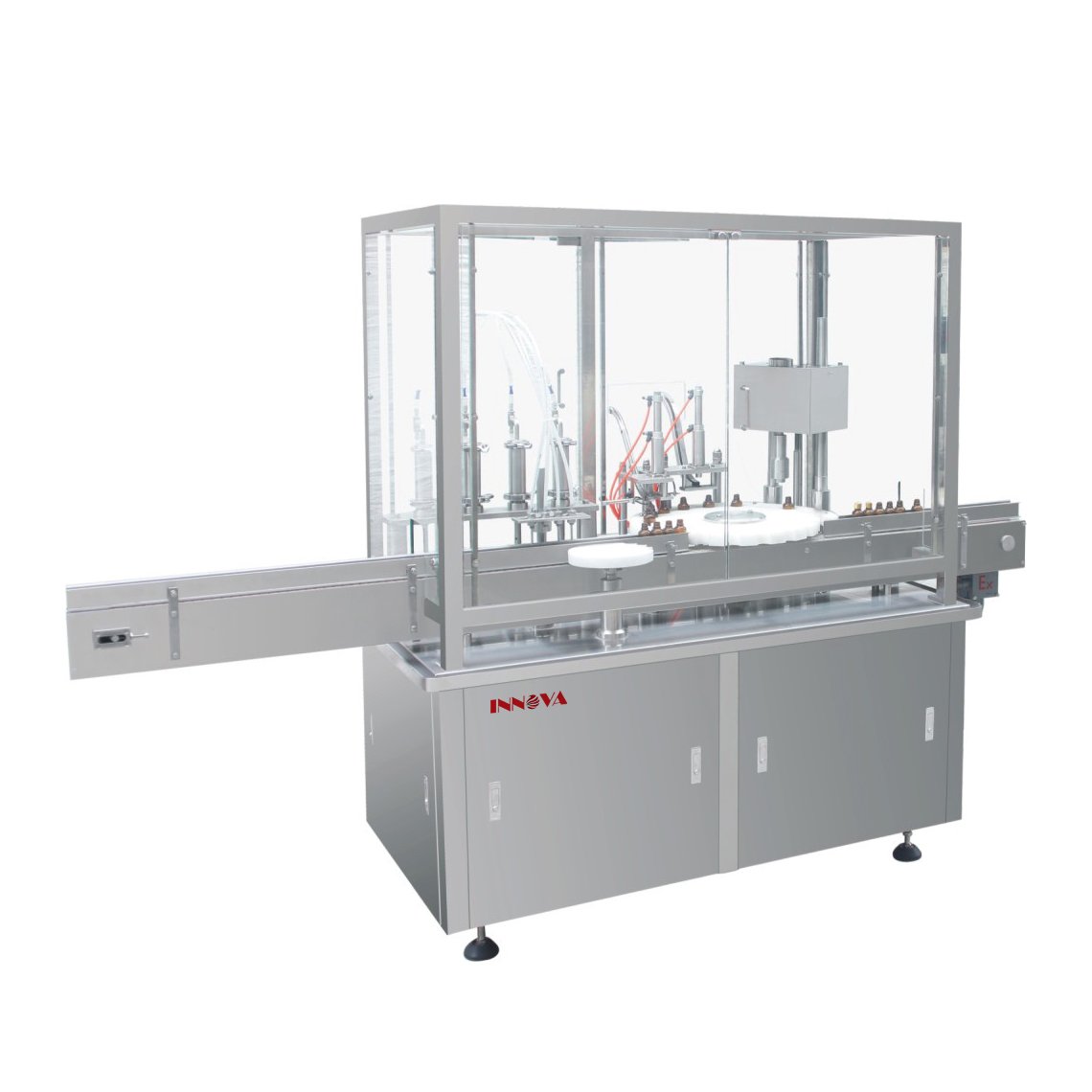

IGZ series is suitable for liquid filling and capping. Uses a single rail or dual rail to feed the bottle, the bottle is transferred by conveying belt, and the dialing wheel positions the bottle.

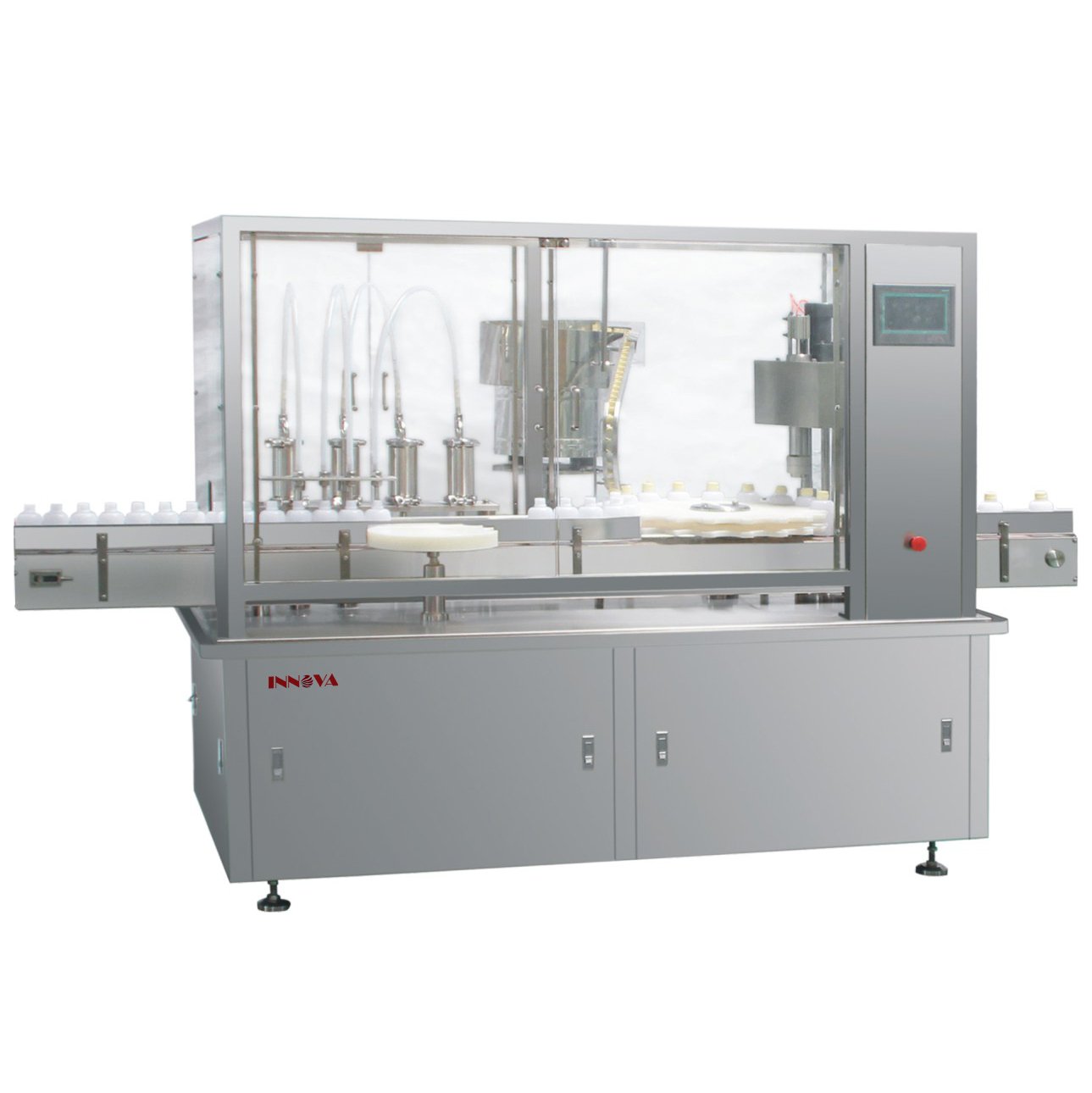

IYGZ is suitable for liquid filling and capping of special-shaped bottles. Uses a single rail to feed the bottle, the bottle is transferred by conveying belt, and the dialing wheel positions the bottle.

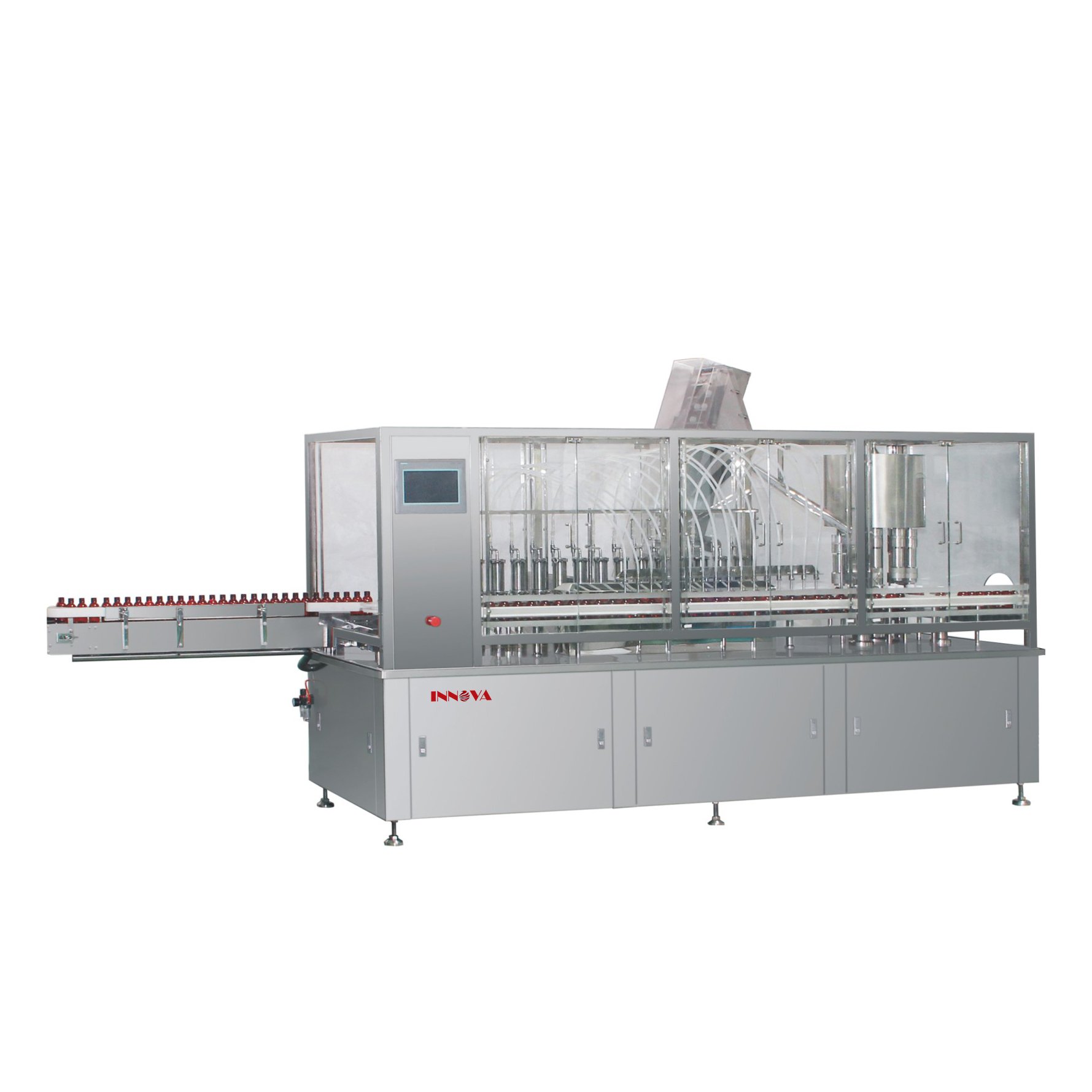

IGX is suitable for liquid filling and screw capping. This machine uses a dialing wheel to feed the bottle, the bottle is transferred by a synchronous belt, and the filling needle is reciprocating tracking, and uses 10-head screw capping.

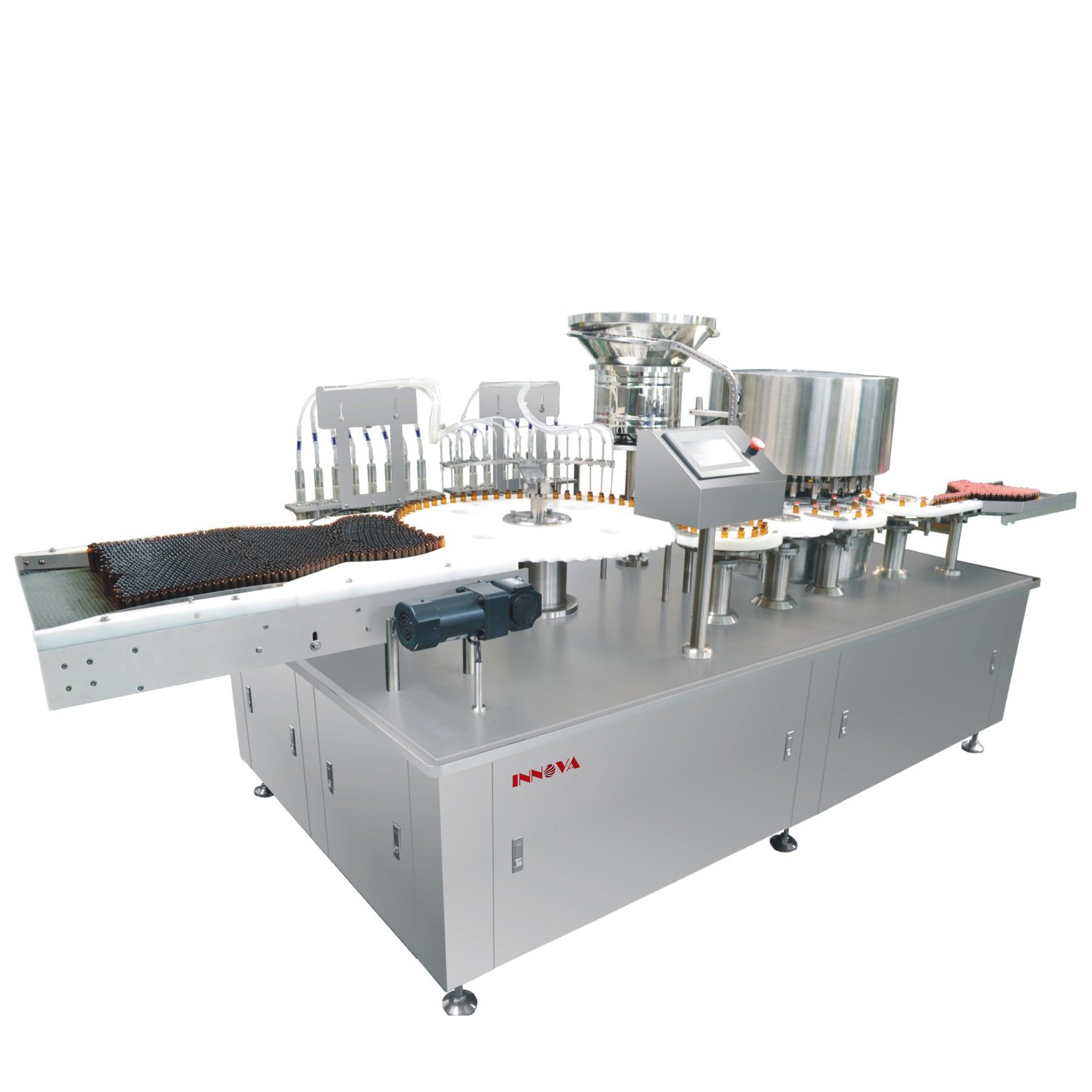

IKF-24 is suitable for oral liquid filling and capping, adopts mesh belt inlet bottle rotary wheel transfer, the filling needle is reciprocating tracking, and the single capping knife is rotary pressing, it can automatically execute bottle feeding, filling, unscrambling on the cap, and capping, etc.

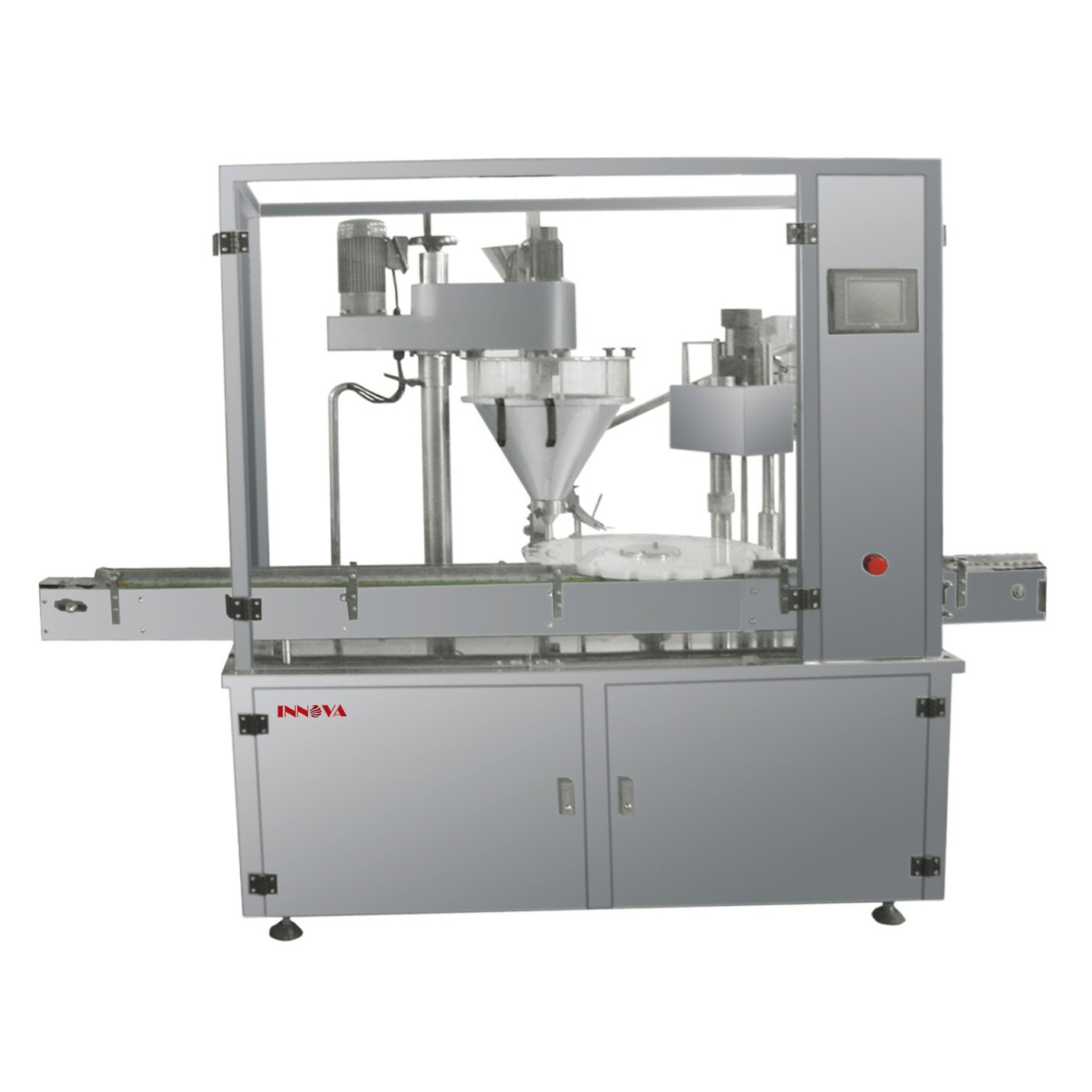

IFZ is a powder filling and capping machine and is applicable to the packaging of powder, and solid particles in the pharmaceutical and food industry with functions of filling, caps screwing, and capping. This equipment is a kind of machine type Single-headed or double-headed filling/capping is available according to the client's specific requirements.

4. Capping machine

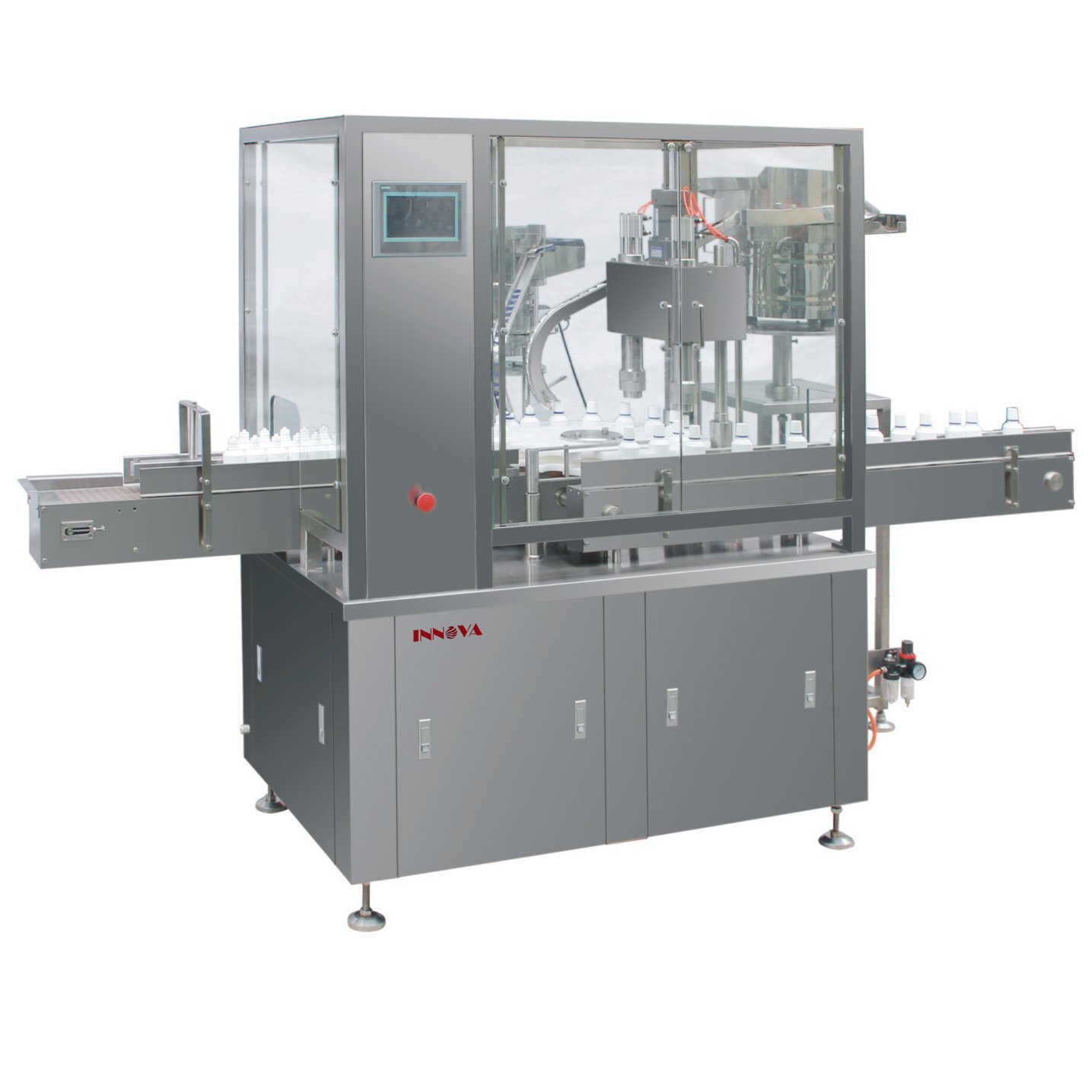

ITX series are ferrule capping machines, suitable for gargle bottle capping.

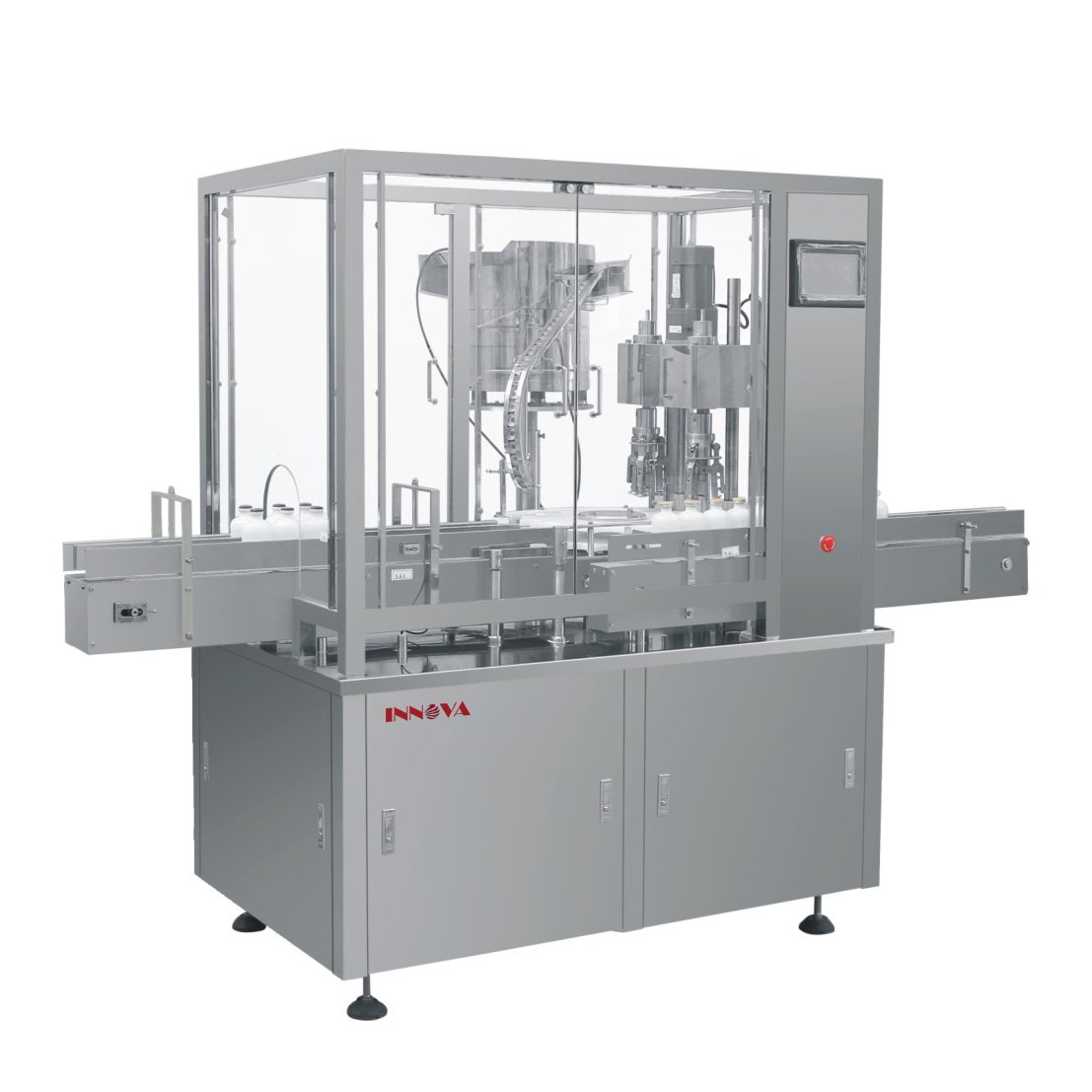

IZ series are star wheel positioning type capping machines, suitable for the screw (crimp) capping. With 3 knife sealing, and 4 knife screw capping.

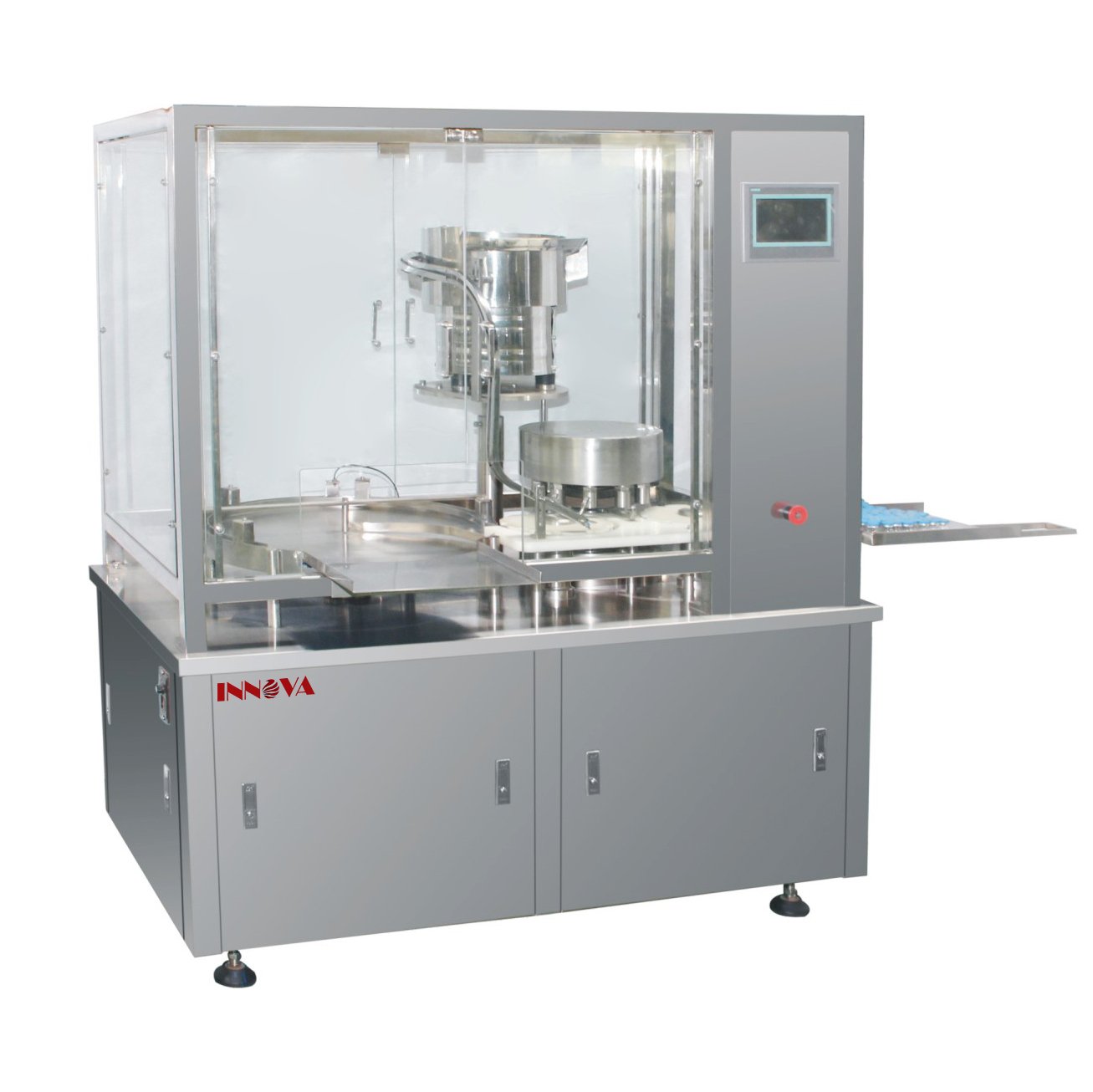

IYZ is a single knife high-speed capping machine, mainly applicable to capping operations for antibiotic bottles in pharmaceutical factories.

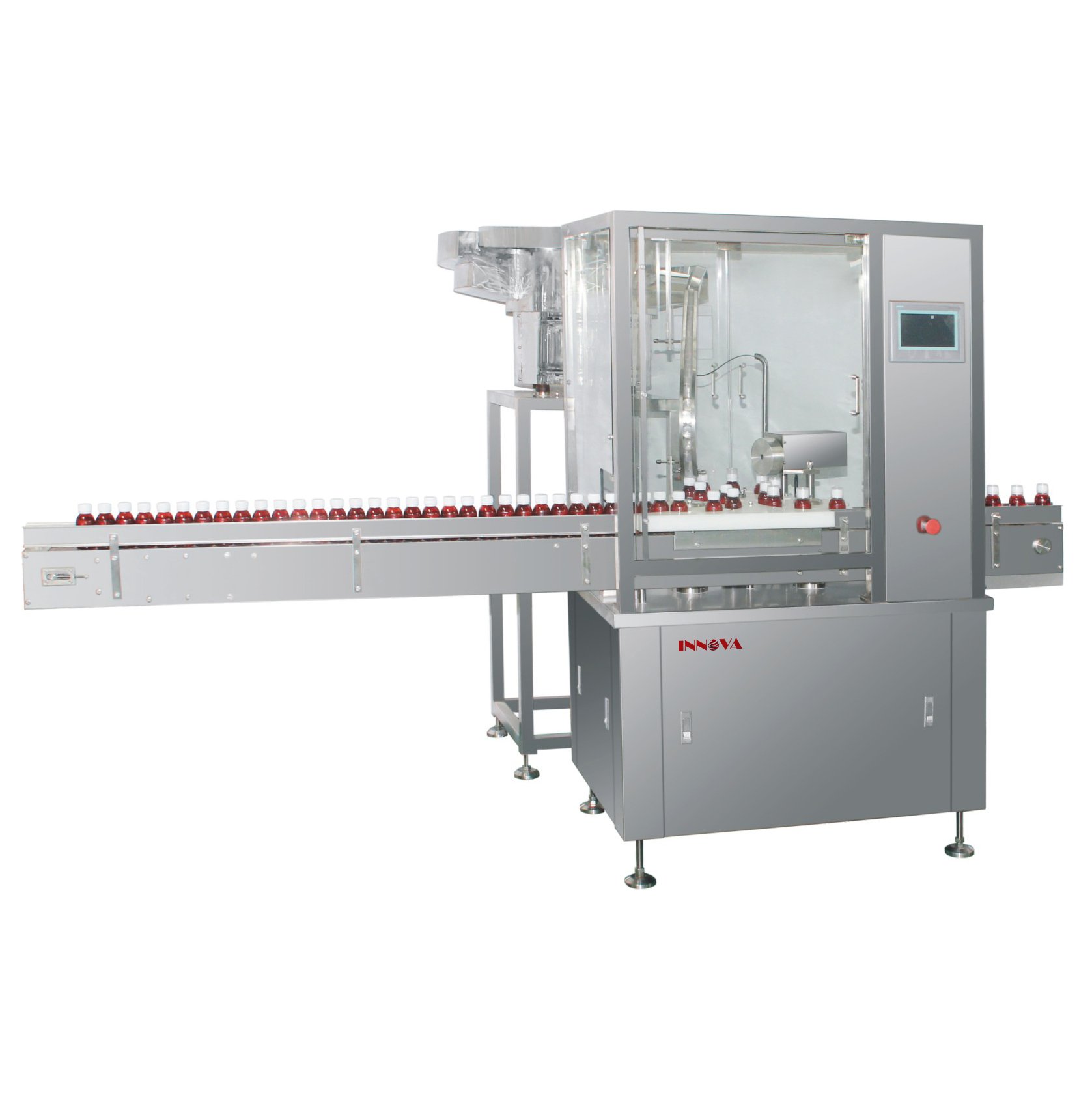

IDL is a cupping machine, suitable for syrup putting cup, the machine structure is reasonable, uses a three-star wheel, and continuously feed bottle and cup.

SPECIFICATIONS

Filling & Closing Machine
Type	Filling&stoppering machine		Filling, stoppering& capping machine	Filling and capping machine			Filling and screw capping machine	Oral liquid filling and capping machine	Powder filling and capping machine	Spray filling and capping machine
Model	IGS-1	IGS-2	IGSZ	IGZ-1	IGZ-2	IYGZ	IGX	IKF-24	IFZ	IPGX-1	IPGX-2
Applied range	30-500ml		1-500 mL	30-500ml			5-300ml	5-25ml	3-500g	3-25ml
Capacity	40-60 b/min	80-100 b/min	40-100 b/min	40-60 b/min	80-100 b/min	40-60 b/min; 80-100 b/min	150-200 b/min	250-450 b/min	15-30 b/min single-headed; 20-60 b/min double-headed	40-60 b/min	60-80 b/min
Filling method	Peristaltic pump optional		Servo system stainless steel pump Peristaltic pump optional	Servo system+stainless steel pump			Servo system stainless steel pump	Glass pump peristaltic pump, ceramic pump optional	/	Servo system+2 ceramic pump
Filling accuracy	± 1%		± 1%	± 1%			± 1%	± 1%	0.5-2%
Compressed air consumption	0.5-0.6 MPa 5m3/h		0.5-0.6 MPa 10m3/h	0.5-0.6 MPa 5m3/h			0.5-0.6 MPa 10m3/h	0.5-0.6 MPa 10m3/h	/	5 m3/h
Filling head	4 heads	10 heads	4 heads	4 heads	10 heads	4 heads	10-16 heads	10-16 heads	1 or 2 heads	2 heads
Stoppering head	1 head	2 heads	1 head	/	/	/	/	/	/	/
Capping head	/	/	/	1 head	2 heads	1 head	10 heads	24 heads	1 or 2 heads	1 head
Total power	2.0 kW		2.5 kW	2.0 kW			3.5 kW	3.0 kW	1.5-2.0 kW	2.0 kW
Power supply	220V 50Hz		220V 50Hz	220V 50Hz			380V 50Hz	220V 50Hz	220V 50Hz	220V 50Hz
Noise	≤65 dB/A		≤65 dB/A	≤65 dB/A			≤65 dB/A	≤65 dB/A
Total weight	Around 800 kg	Around 900 kg	Around 800 kg	Around 800 kg	Around 1000 kg	Around 800 kg	Around 2000 kg	Around 2000 kg	750 kg
Overall size: mm	244012001700	330012001700	244013501700	244013501700	330011001700	244013501700	450022301700	350015001700	240012001800	244013001700	300013501700

Closing Machine
Type	Ferrule capping machine		Star wheel positioning type capping machine		Single knife high-speed capping machine	Cupping machine
Model	ITX-1	ITX-2	IZ-1	IZ-2	IYZ	IDL
Applied range	20-500 mL		30-500ml	30-500ml	2-30 mL	5-500 mL
Capacity	40-60 b/min	80-100 b/min	40-60 b/min	80-100 b/min dual rail to feed bottle, dual head screwcapping	240-300 b/min	100-200 b/min
Capping head	1 head	2 heads	1 head	2 heads	6, 8, 12 capping knife
Total power	1.0 kW		1.0 kW		1.0 kW	1.5 kW
Power supply	220V 50Hz		220V 50Hz		220V 50Hz	220V 50Hz
Noise	≤65 dB/A		≤65 dB/A		≤65 dB/A	≤65 dB/A
Total weight			Around 600 kg	Around 650 kg	500 kg	Around 600 kg
Overall size	240013501700 mm	260013501700 mm	244012001700 mm	260011001700 mm	1500114801382 mm	244016501700 mm
Overall size	240013501700 mm	260013501700 mm	244012001700 mm	260011001700 mm	1500114801382 mm	244016501700 mm
