Embedding & Cooling System


Embedding & Cooling System

The tissue embedding machine is used to fix the processed tissue for easy tissue slicing. It is suitable for use in laboratories of medical colleges, hospital pathology departments, medical research units, animal and plant research units, and food testing departments.

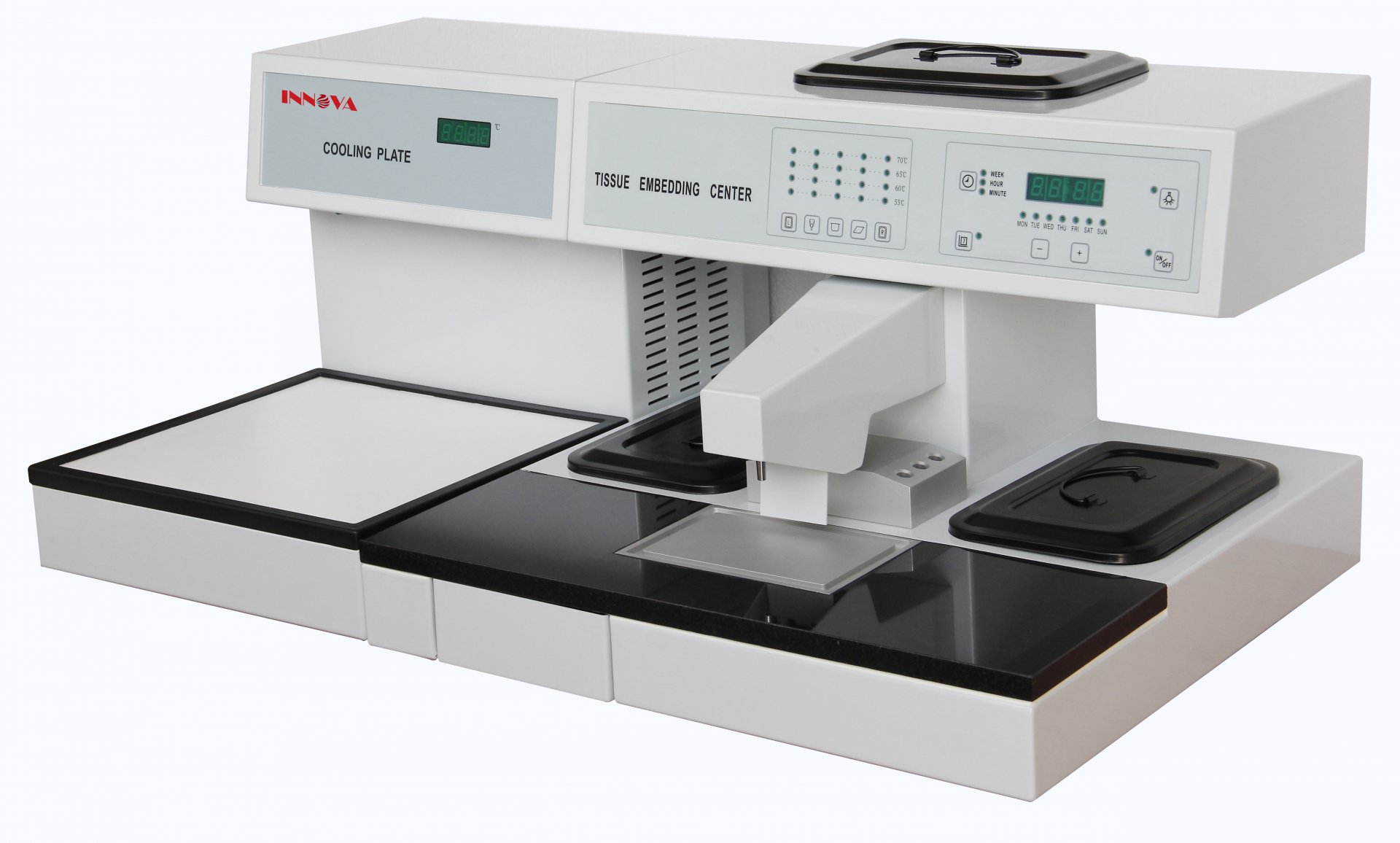

EC-3M/EC-3L Embedding & Cooling System


  • Fully programmable computer controls allow automatic system start and stop anytime (weekly);

  • Temperature is controlled by microprocessors made in the USA and they are displayed  using color-changing LEDs to enable clear visibility of working status;

  • Five heated areas, including Paraffin Chamber, Paraffin Dispenser, left and right Thermal Storage Compartments, and heating plate (working area), are individually controlled and work independently without interference from each other;

  • Flexible heating mechanism overcomes the shortcomings of traditional technology that can result in excessive temperature differences.

  • The system provides fast heating and precise temperature control. In addition, the dual protection from overheating is safe, reliable and energy-saving;

  • Automatic memory and restoration functions: After startup, all preset temperature data are automatically stored in the system;

  • Flexible module configuration options through a design that separates the Cryo Module from Embedding Module;

  • Safe and reliable low-voltage illumination system;

  • Heated working plates and forceps wells make tissue embedding more convenient;

  • A large granite working area eases the cleanup of excessive paraffin.

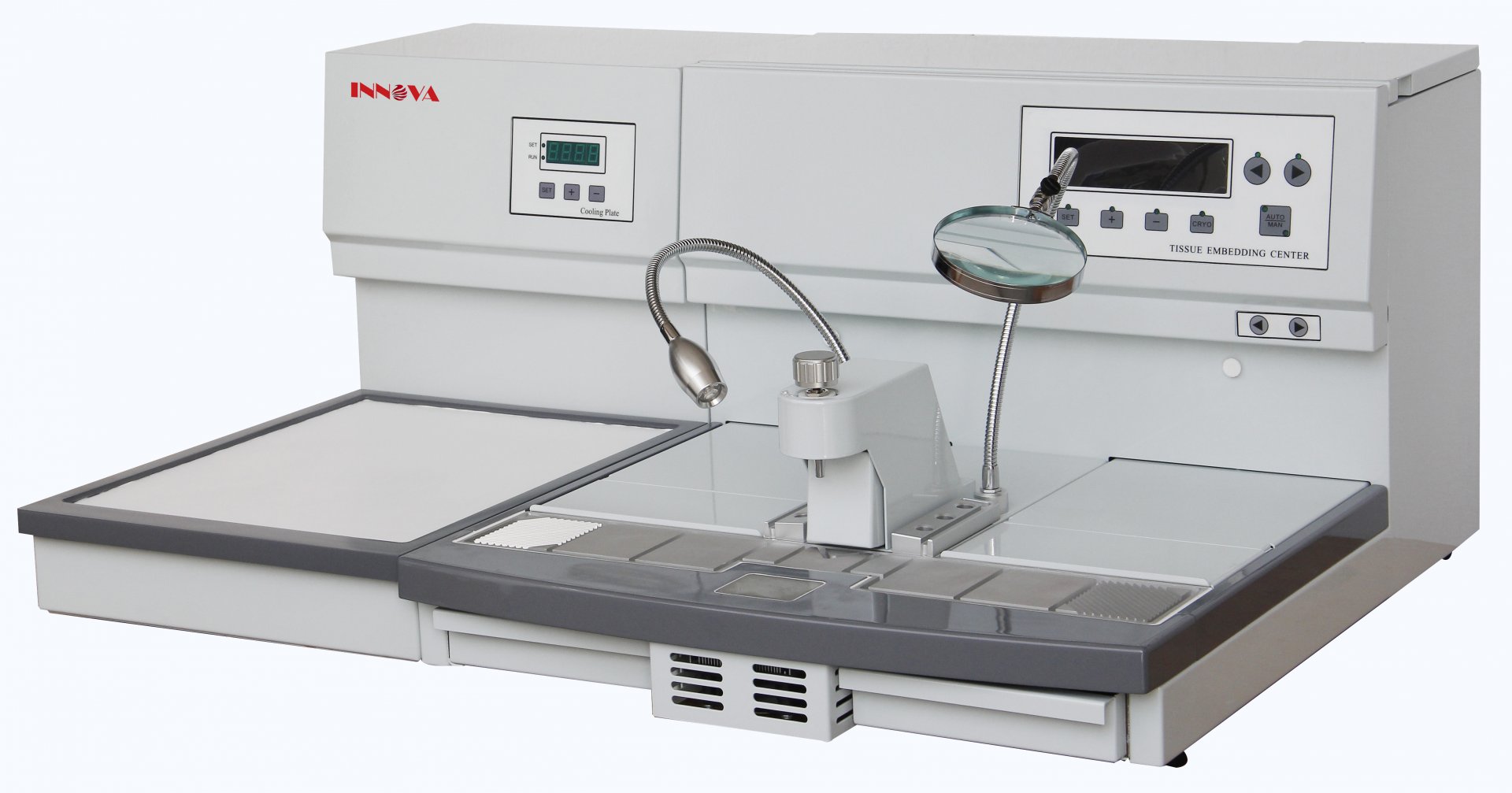

EC-6M/EC-6L Embedding &Cooling System


  • OLED screen: energy-saving, crisp display without the necessity of background light, clear vision without blind spots from any angle;

  • Flexible heating mechanism and PID technology are used to achieve fast heating and precise temperature control;

  • Seven working areas, including Paraffin Chamber, Paraffin Dispenser, left and right Thermal Storage Compartments, heating plate (working plate), small Cooling Plate, and Cryo Module are individually controlled and work independently without interference by each other;

  • Adjustable gravity-feed paraffin dispenser using latest heating and DC low-voltage control mechanism: dispenser is heated with wrapping-type heating film to achieve smooth, safe, and reliable heating;

  • Trimming plates at both sides for convenient tissue block trimming;

  • A big magnifying glass can be adjusted at any direction and angle, suitable for embedding extremely small tissue specimens;

  • Manual and automated operation modes: under a manual mode, the system can be started and stopped any time; under an automated mode, ON/OFF can be set at any weekday, hour, and minute; all settings are automatically stored once the program starts to run;

  • All buttons are equipped with lamination to clearly show the working status;

  • Low-voltage, safe, and bright LED lamp: both angle and brightness are adjustable, enabling easy and convenient specimen observation;

  • Flexible module configuration options (left-to-right or right-to-left) through a design separating Cryo Module from Embedding Module; Cryo Module can be automatically started or stopped along with Embedding Module by optionally using a power serial port;

  • Freezing temperature can be adjusted due to the use of a new-type inverter compressor;

  • There is an automatic actuation, that can make sure the unit will continue working after a power-down.


The volume of Paraffin Chamber3L6L
The volume of Right/Left Heating box225x145x55mm/1.8Liters240x160x55mm/2Liters
Size of Working table180x120(mm)540x93(mm)
Small cold spotnoyes
Starting time settingcan set starting time(any hour,minutes) of the week
Wax dispensing modefinger touch or foot pedal
Paraffin flowing speedthe mode can control flow in speed
Lightingfixed cold lightwarm low-voltage lighting
Paraffin Waste Trayone traytwo trays
Left/Right heating boxSeparate boxes,can take outpush/pull type, can't take out
Wax Trimming fuctionnoyes

Size of cooling table320x300mm/315x380mm
Temp.Rangeno temp.controlling system,it makes cooling immediately once switch on.: +5℃~20℃
Lowest temp.-30℃-28℃
Cooling Moderefrigeration compressorrefrigeration compressor
Keypad settingno keypadwith keypad, temp.range adjustable
