Colorimeter for Accurate Color Measurement

Colorimeter
Colorimeter

Colorimeter

INNOVA Colorimeter includes benchtop and portable type, suitable for detection of industrial wastewater and river water; drinking water, and low turbidity solutions.


FEATURES

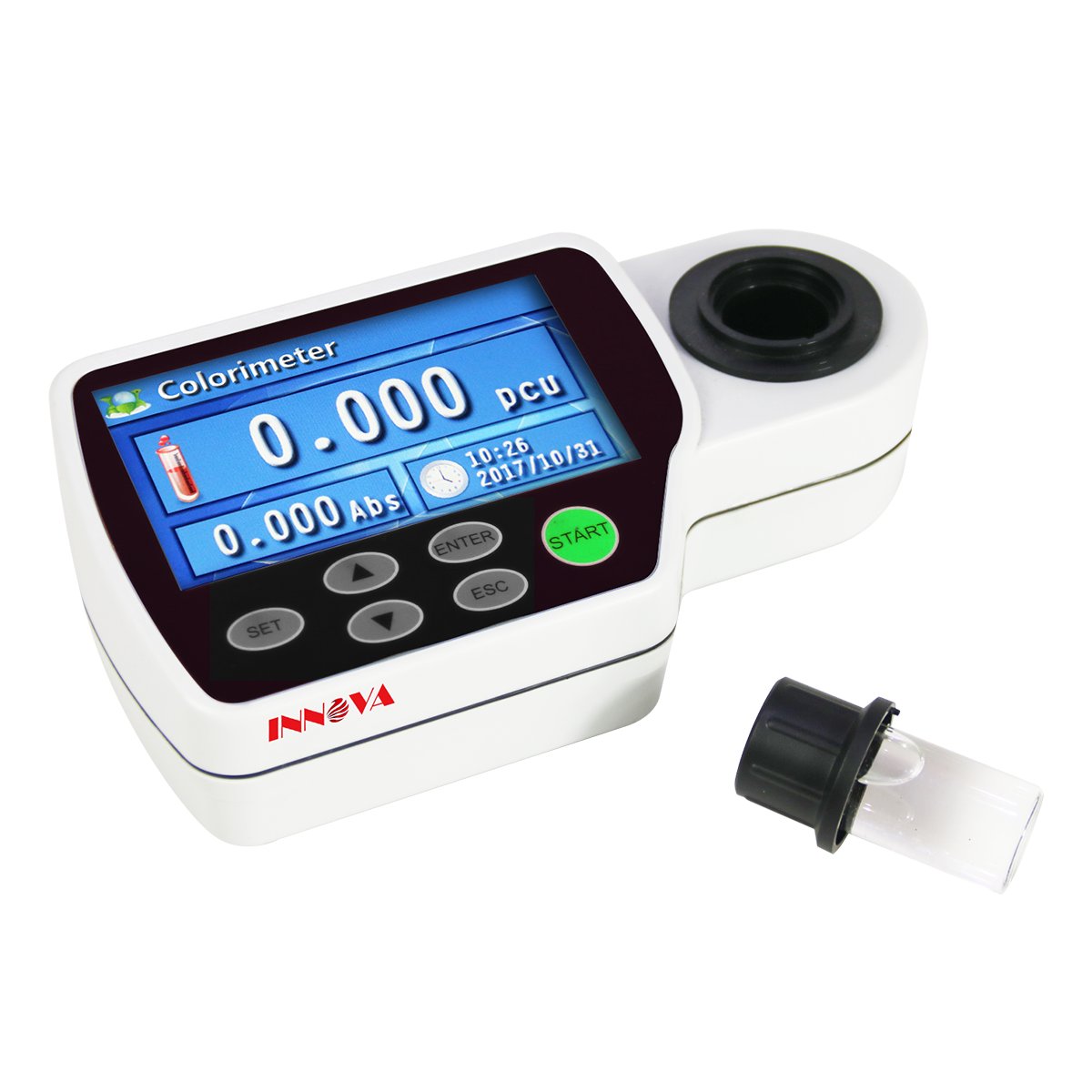

IPC-4000H Portable Colorimeter Main Features


Features

  1. 3 inch color screen with friendly UI.

  2. The unique high-precision filter system makes theinstrument more stable and accurate.

  3. Direct reading of concentration, automatic power-off.

  4. With built-in standard curve. Users can build curves

  5. according to different requirements.

  6. Support up to 7-point calibration (new curve creation).

  7. Support restoring factory calibration data.

  8. With large-capacity storage of 5000 sets of test data.

  9. Rechargable battery can last for 10 hours. Auto

  10. power-off time can be set.

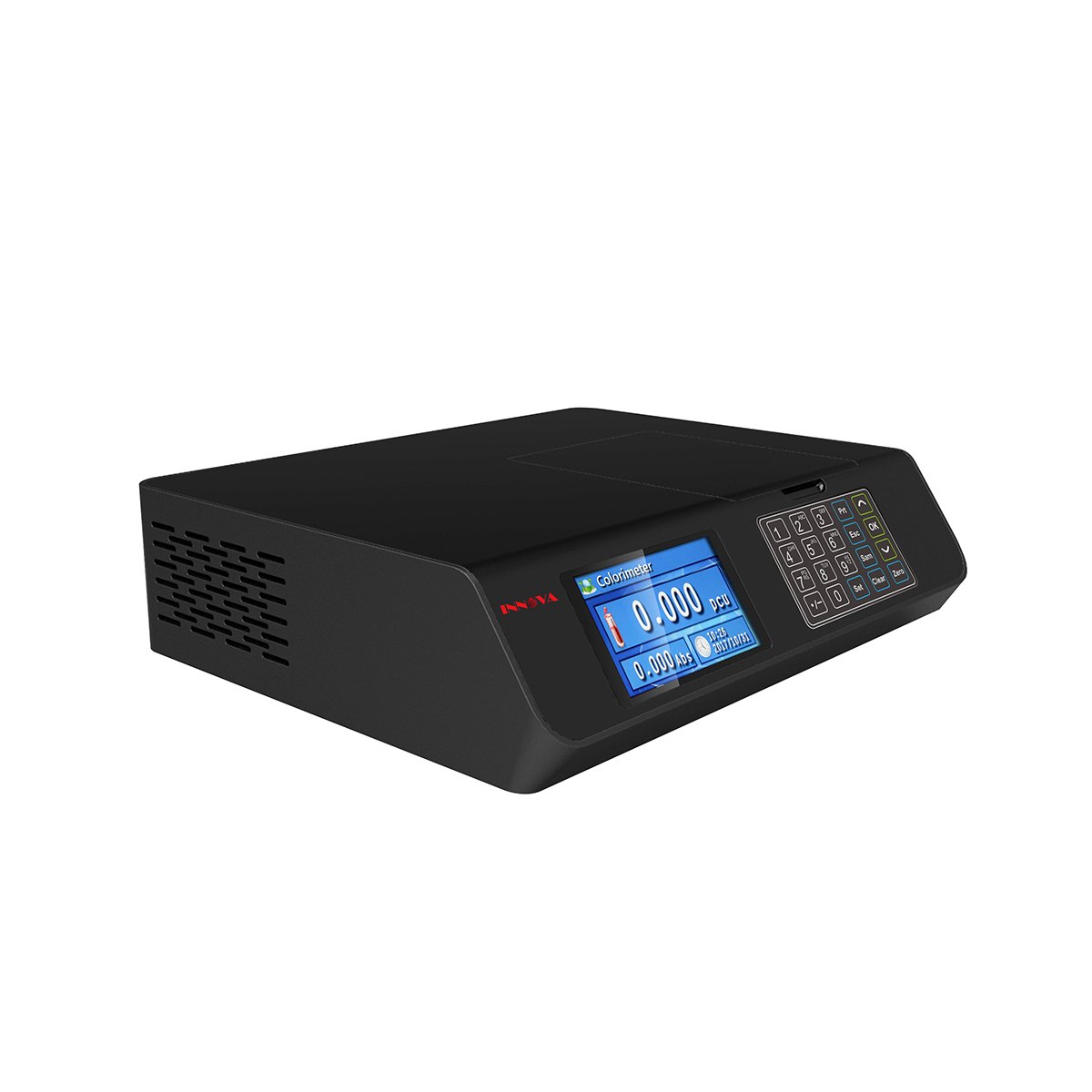

IBC-4000D Benchtop Colorimeter Main Features

  1. 4.3 inch color LCD screen with friendly Ul makes operations easy.

  2. Big storage space and support USB storage and data transfer to USB drive.

  3. There is one standard curve in the system. Customers can create up to 200 piecewise curves subject to different concentrations which will literally improve measurement precision.

  4. Adopt ARM9 main control chip which makes operations easy and smooth, instrument respond quickly.

  5. USB and RS232 port for data transfer and printer connection.

  6. Adopt special and high precision light filter system to ensure the instrument's stability and measurement precision.

  7. Cold light source, narrowband interference, with long lifetime up to 100,000 hours.


SPECIFICATIONS

ModelIPC-4000H
Measurement MethodPlatinum-Cobalt Colorimetry
Measuring Range20-500 PCU
Abs Range-0.3~3A
Colorimetric MethodTube Colorimetric
Accuracy±5%
Resolution0.01 PCU
DetectorImported Silicon Photodiode
Display3-inch color screen
OutputMicro USB(Battery charging)
PowerPower adapter/Rechargeable lithium battery
Waterproof LevelIP54
Ambient Temperature(5-40)°C
Ambient HumidityRelative humidity S 85% (No condensation)
Dimensions/N.W.100x210x70 mm/1kg
Shipping Size/G.W.355x265x150mm/2kg
Standard AccessoriesSample bottle x5 pcs, Power adapter(Charger), Manual



ModelIBC-4000D
DescriptionDrinking Water Colorimeter
Minimum readout(PCU)0.01/0.1/1
Measuring range(PCU)0-500
Basic error±5%FS
Repeatability≤0.5%
Zero drift±0.5%FS
ApplicationsDrinking water and low chroma solutions
