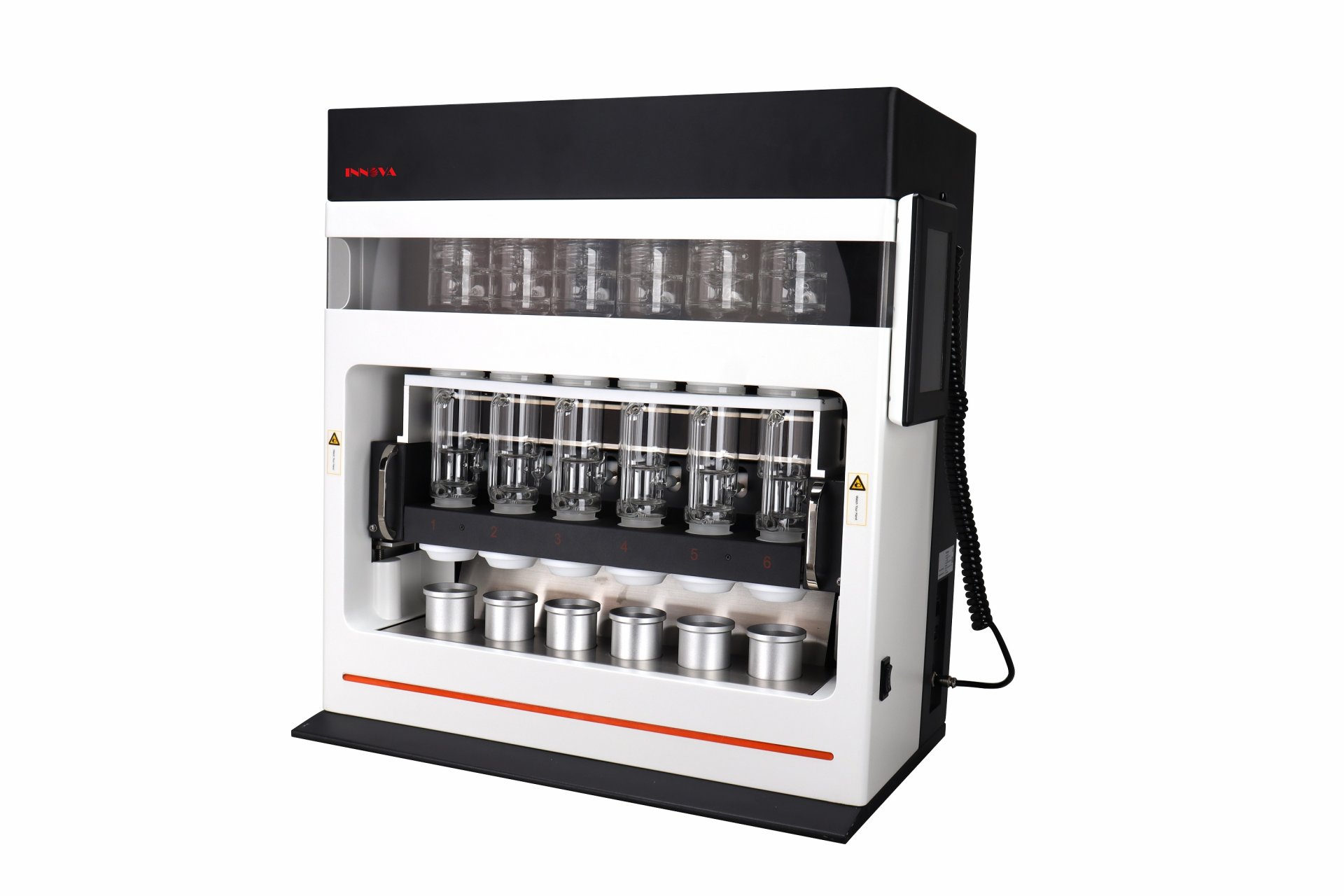

INOF7 Automatic Soxhlet Extractor


INOF7 Automatic Soxhlet Extractor

INOF7 Automatic Soxhlet Extractor, designed based on the Soxhlet extraction principle with weight method to determine the fat content. It has five extraction methods to meet different demands from customer. The whole metal heating module, heating up fast, good effect, low power consumption; access to all-round water temperature, flow control, environmental protection more economical; built-in ether leak detection device to ensure experimental safety. It is widely used in agricultural/ food /chemical /environment and other areas, especially for the drug ,soil, sludge,cleaner and other substances in the extraction of soluble organic compounds.

Inquire Now


Features :

Automatic extraction

One touch to start extraction, lifting, pre-heating, extraction, dilution, and solvent recovery automatically.

In-built 5 unique methods of extraction, handy operation.

Include Soxhlet Extraction, Soxhlet Hot Extraction, Continue Flow Extraction, Hot Extraction, CH Standard methods

Apply to all organic solvents

Customized by glass and PTFE, which can block all impurities and possess a high rate of accuracy, apply to all organic solvents, satisfying the requirements of users.

ECO-friendly and conservation

Full temperature and flow control for reducing consumption of condensed water.


  • Apply to all organic solvents to satisfy all demands.

  • Automatic Soxhlet standard method, it customized by glass and PTFE, which can block all impurities and possess high rate of accuracy.

  • One-click manipulation for start and pause, that makes operation with high proficiency.

  • Analyzer allows its controller to adsorb on any surface that made by iron.

  • Vertical screen, more humanization.

  • In-built 5 methods of extraction, handy operation.

  • Preset common reagent options, one-click manipulation for repeated trials

  • The overall heating module, that possesses features of warming faster, favorable effect and low power consumption.

  • Full temperature and flow control for environmental and economy.

  • In-built ether leak detection device to ensure experiment safety.

  • Efficient solvents recovering system for reduce experimentation cost.



Technical parameter

Temperature rangeRoom temperature +5℃~ 300℃
Measuring range0.1 ~ 100%
Temperature accuracy±1℃
ReproducibilityRelative error 1%
Sample weight0.5 ~ 15g
Capacity per batch6pcs/batch
Solvent cup volume150mL
Solvent recovery≥85%
ControllerExternal via cable
Power supply220VAC±10%, 50Hz
Display7 inches color touch screen
Net Weight50Kg

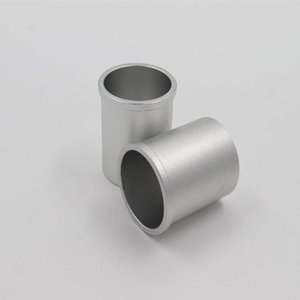

Aluminum heating cup for storage and heating of solvents.

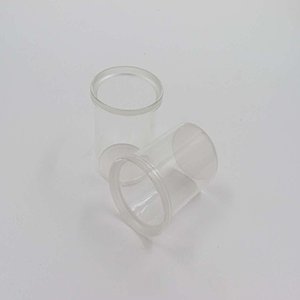

Glass heating cup for storage and heating of solvents.

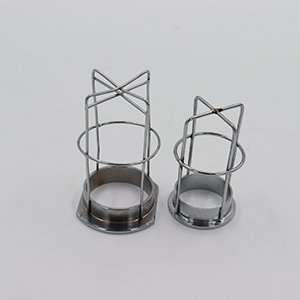

Filter paper tube hanger, used to hold samples and filter paper frames.

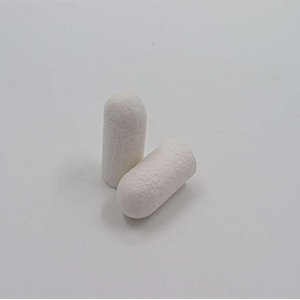

Filter paper cartridges for holding samples.


Innova INOF7 Automatic Soxhlet Extractor Brochure

File Type:.pdf File Size:1.06 MB
