In biochemical research lab, benchtop bioreactors serve as the core small-scale culture equipment for strain screening, process exploration and medium optimization. With compact layout, flexible modular configuration and full-process precise parameter control, they build a stable microenvironment for microbial, animal and plant cell culture, directly guaranteeing the repeatability and comparability of lab trial data, covering the whole cycle of early-stage bioprocess research.
I. Diversified Application Scenarios: Empower All Kinds of Lab Cultivation Work
Core Carrier for Strain Screening & Medium Formula Optimization
For microorganism culture including bacteria and fungi, benchtop bioreactors support batch culture, fed-batch culture and semi-continuous culture modes. Multi-parallel benchtop systems can operate 2–108 tanks simultaneously, realizing multi-variable contrast tests at one time. Precise control of temperature, stirring speed, pH and dissolved oxygen eliminates experimental deviation caused by inconsistent culture conditions, greatly shortening the screening cycle of high-yield strains and optimal medium formulas.
Reliable Platform for Animal & Plant Cell Precision Culture
Benchtop cell bioreactors are equipped with magnetic stirring and low-shear impellers, perfectly matching fragile suspension cells, adherent cells on microcarriers and Fibra Disk carriers. The adjustable illuminance of 100–10000 lux on plant cell models meets the photosynthetic culture demand of plant tissues. Automatic gas mixing of air, O₂, CO₂ and N₂ stabilizes cell metabolism, widely applied in vaccine preparation, antibody expression and secondary metabolite research.
Efficient Tool for Process Parameter Exploration & Small-Scale Amplification
From shake flask trials to pilot-scale transition, benchtop bioreactors simulate industrial fermentation conditions in miniaturized volume (0.1–50L). Researchers can verify feeding strategies, DO linkage ventilation and defoaming parameters in advance, summarize mature process data, and lay a reliable data foundation for subsequent scale-up production. It is also an ideal teaching device for university biotech labs.
II. Core Performance Advantages: Standardized Configuration for Lab Precision Experiment
Flexible Volume & Compact Layout
Optional volume ranges from 0.1L mini multi-tank to 50L single tank, loading rate controlled at 30%–75%. Small floor space saves laboratory bench area; dual/triple/multi-connected integrated controller realizes independent parameter setting for each tank without mutual interference.
Complete Intelligent Control System
Standard configuration covers temperature, rotation speed, pH, DO, defoaming and feeding linkage control. Two gas control modes are optional: manual rotor flowmeter and automatic mass flowmeter linked with DO value. Equipped with 4 standard peristaltic pumps per tank, external feeding pumps can be expanded to meet complex fed-batch culture demands.
Diversified Sterilization & Stirring Matching
All glass tank models adopt off-autoclave sterilization to realize thorough high-temperature disinfection and avoid cross-contamination. Stirring modes are optional: mechanical stirring for high-viscosity microbial fermentation, magnetic stirring for low-shear cell culture. Customizable multi-layer stirring impellers optimize mass transfer and oxygen transfer efficiency.
Multiple Temperature Control Solutions
Three temperature control schemes for selection: electric heating blanket + external cold water, double-layer glass jacket circulating water, bottom stainless steel jacket heat exchange. Uniform temperature distribution effectively avoids local overheating and protects cell activity.
III. Standard Operation Specifications: Standardized Use to Extend Equipment Service Life
Classified Selection According to Culture Objects
Microbial culture chooses mechanical stirring benchtop reactors; animal cell culture matches magnetic stirring low-shear models; plant cell experiments select illuminance-adjustable dedicated tanks. It is forbidden to use mismatched configurations to cause cell damage or poor fermentation effect.
Reasonable Ventilation & Feeding Setting
Adjust gas flow rate according to real-time DO value; avoid excessive air flow leading to cell shear damage. For variable-speed peristaltic pumps, set segmented feeding speed based on strain growth curve to maintain stable nutrient concentration in broth.
Post-Experiment Full Cleaning & Disinfection
After each batch of culture, thoroughly clean tank body, stirring shaft, pipeline and sensors. All disassembled parts are sterilized in autoclave; residual medium is forbidden to remain inside the tank to prevent biofilm and miscellaneous bacteria pollution.
IV. Daily Maintenance System: Stable Long-Term Operation of Benchtop Bioreactors
Regular Consumable Inspection
Check air filter, peristaltic pump hose and sealing ring every 1–3 months and replace aging parts timely. Calibrate pH, DO and temperature sensors monthly to ensure accurate data output.
Data Record & Traceability
Record key parameters including temperature, stirring speed, pH, DO and feeding volume during each experiment, store complete operation logs. Meet CNAS laboratory certification requirements and realize full-process data traceability of culture experiments.
In biochemistry research laboratories, benchtop bioreactors are the foundational core equipment for all bioprocess exploration. From flexible model selection, standardized operation to regular precise maintenance, a complete set of laboratory culture management system is formed. It provides stable, repeatable and high-precision experimental support for strain research, cell engineering and biopharmaceutical early-stage development.

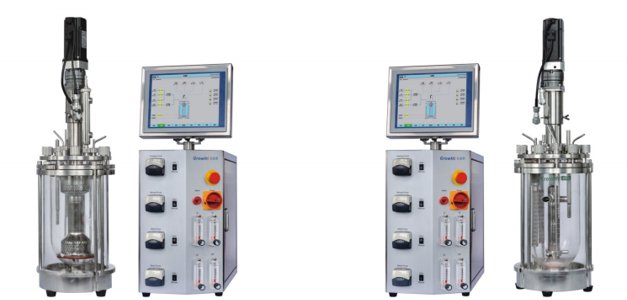

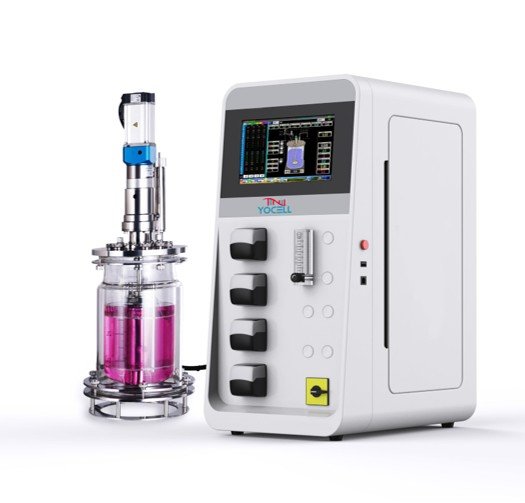

INNOVA Bio-Meditech —— Benchtop Bioreactor
Entry-level and easy-to-operate, the vessel material is glass, with excellent performance and compact size, making it more suitable for laboratory use. We have mature series for you to choose, or customize a suitable solution according to your needs.
