INNOVA can customize the entire filling line according to requirements of the production process, including loading machine. Suitable for filling glass bottles or plastic bottles in pharmaceutical, healthcare, food industry, etc.
Inquire Now
Automatic unscrambler loading machine
ILP series is suitable for plastic bottles automatically unscrambling in the pharmaceutical industry. It is suitable for the 5-200ml round bottle.

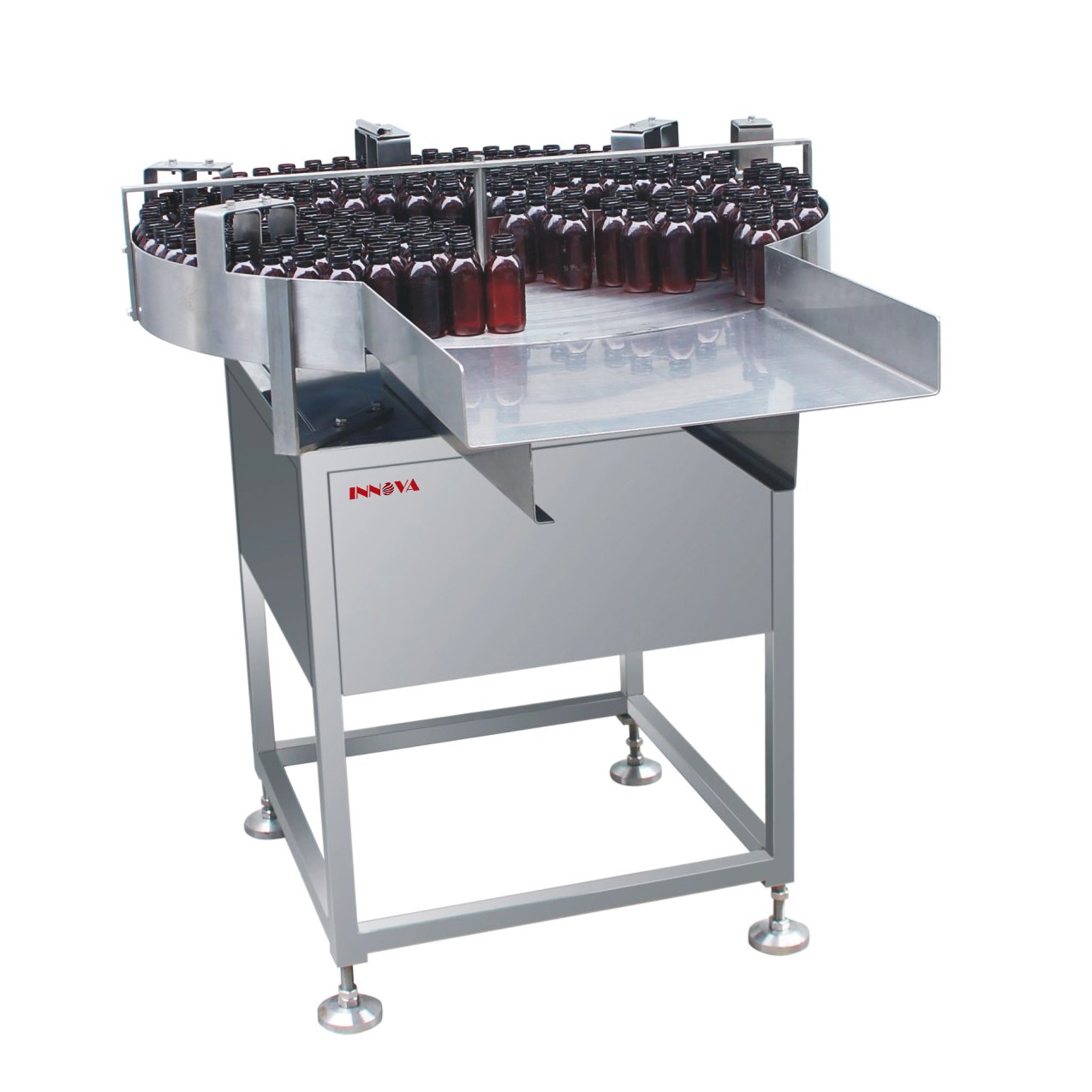

Turntable loading machine
IGP is suitable for liquid and infusion bottle manual feeding and automatically organizing battles in the pharmaceutical industry. The machine adopts turntable to let the bottle go into the bottle feeding rail.
| Type | Model | Applied range | Capacity | Power supply | Power | Overall size | |
| Loading Machine | Automatic unscrambler | ILP-1 | 3-25 mL | 40-130 b/min | 220V 50Hz | 0.09 kW | 1000*1600*1650 mm |
| ILP-2 | 30-50 mL | 80-150 b/min | 0.12 kW | 1170*1800*1650 mm | |||
| ILP-3 | 60-80 mL | 80-150 b/min | 0.5 kW | 1200*1900*1650 mm | |||
| ILP-4 | 60-100 mL | 100-160 b/min | 1400*2320*1650 mm | ||||
| ILP-5 | 120-300 mL | 120-200 b/min | 1650*2660*1650 mm | ||||
| Turntable | IGP | 30-500mL | Matched with connected machine | 220V 50Hz | 0.09 kW | 950*1200*1100 mm | |
