Lifting Glass Reactor

产品主图
产品主图

Lifting Glass Reactor

Innova lifting glass reactor is suitable for pilot production in chemical, pharmaceutical, material synthesis, etc. It usually works with dynamic temperature control system to meet experimental requirements.

FEATURES

Features:

Lifting glass reactors are mainly used for synthetic reaction, distillation and concentration of different types of materials. The reactor can be lifted and rotated. The reactor can be pumped to a negative pressure state according to some experimental requirements.

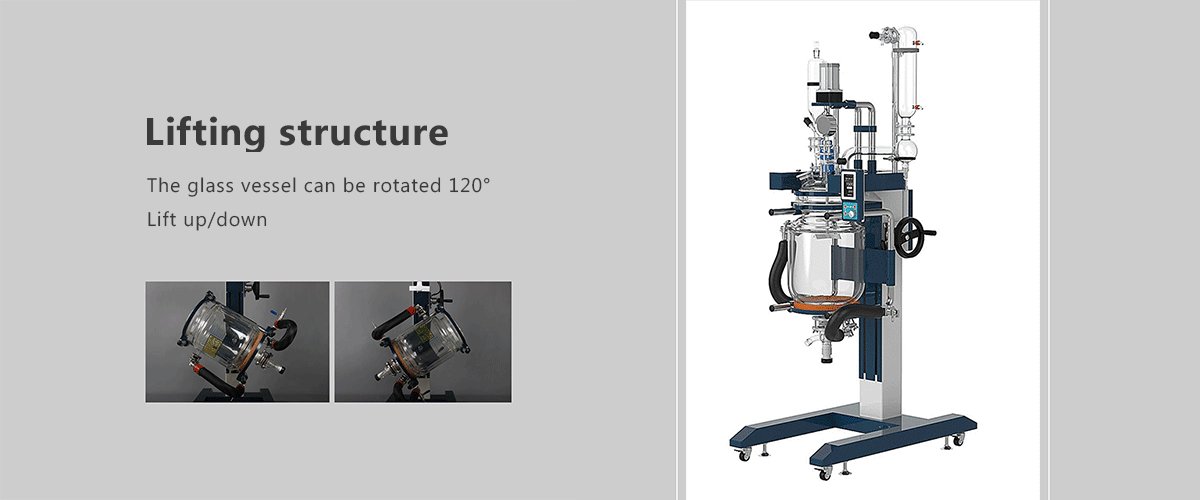

 The reaction vessel and the lid can be separated, the glass vessel can be lifted up, and can be angled 120 degree both sides, which makes it more convenient to operate and clean.

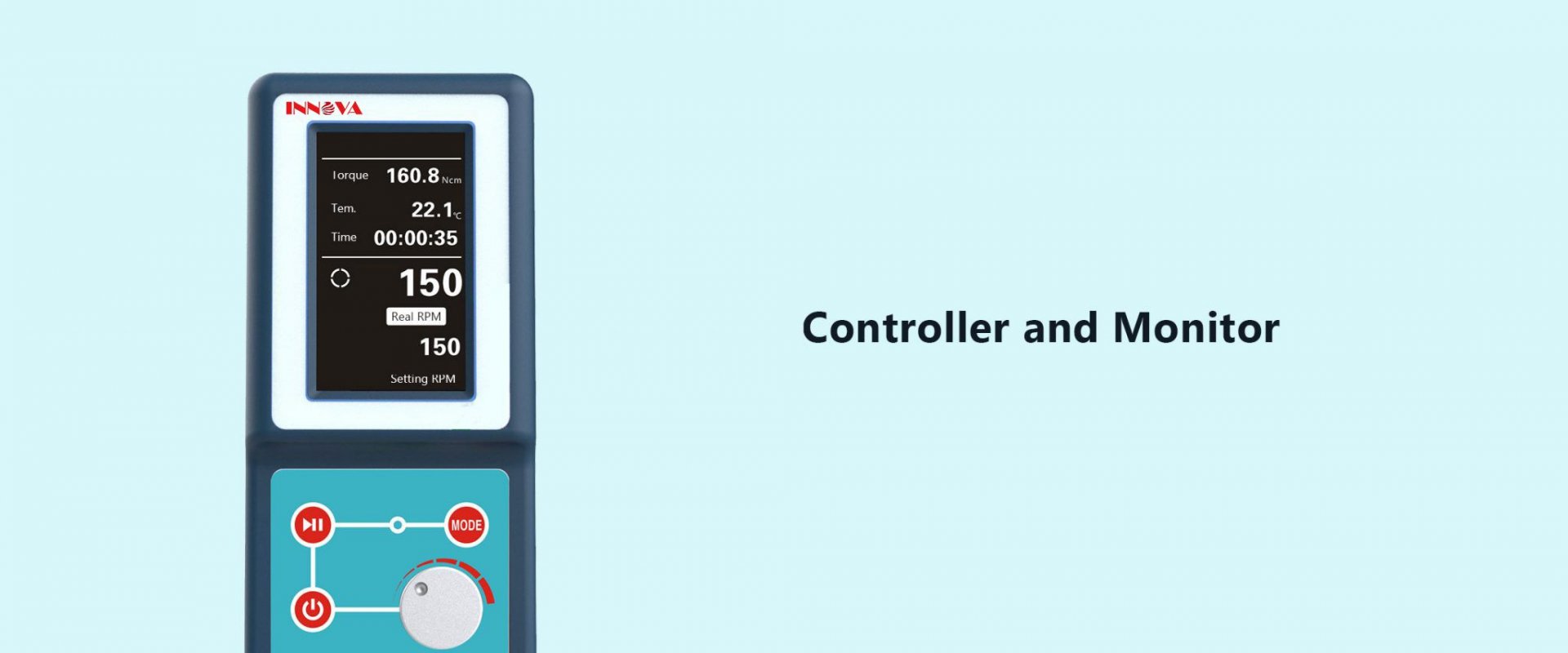

 4.3″, 65K true color LCD screen operation box, the torque value, temperature, running time, setting speed and actual speed can be displayed simultaneously.

 "工" shape stainless steel frame is much more stable than standard type during mixing process.

 Wide working temperature range from -80℃ to 200℃.

 Openings are sealed with flanges, ensuring higher vacuum degree, easy to disassemble.

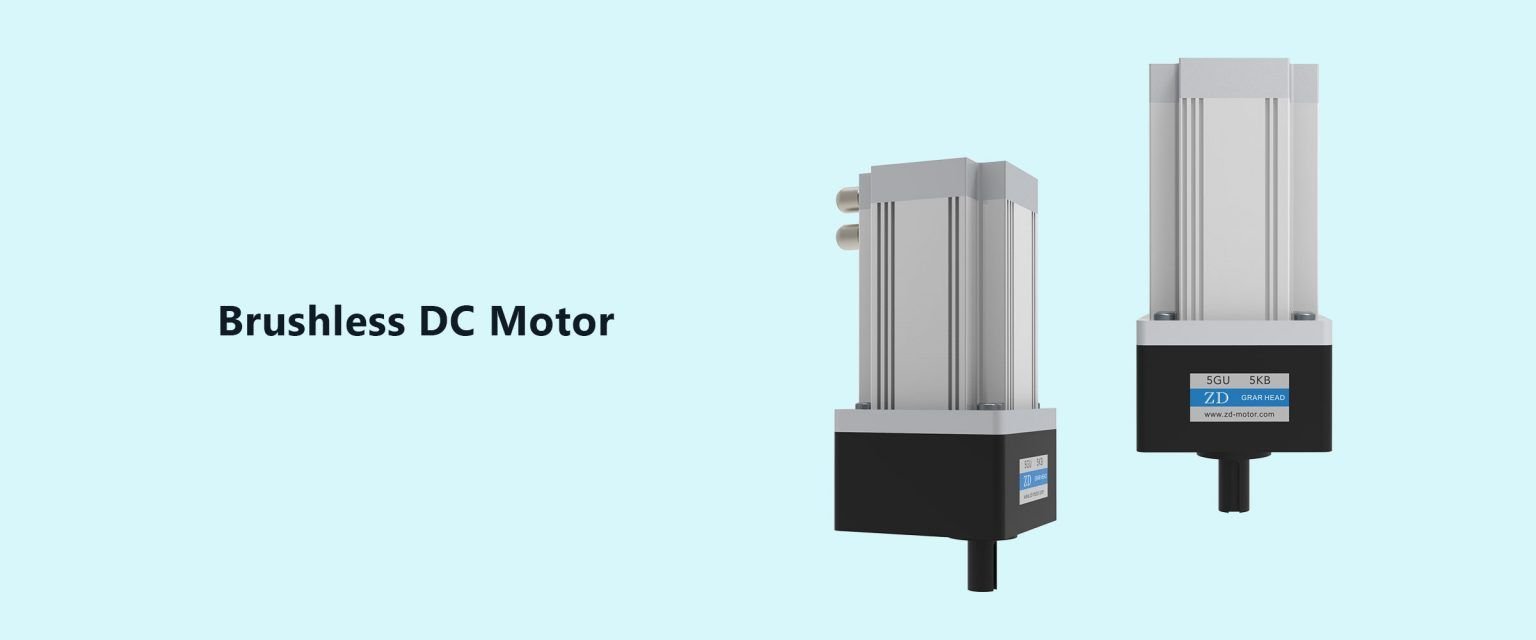

 Brushless DC motor for stable performance and long life time.

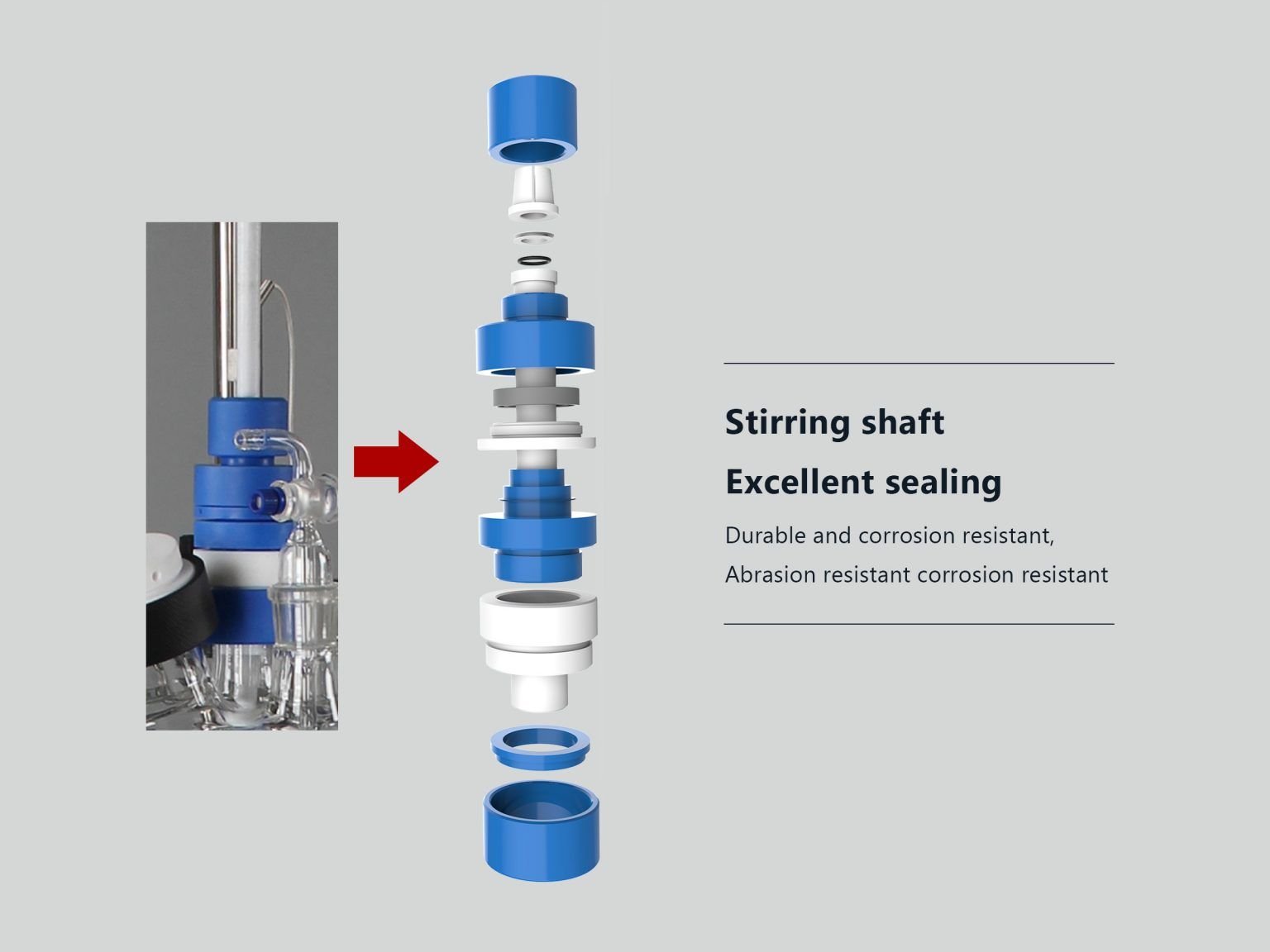

 Stirring shaft excellent sealing. Durable and corrosion resistant.

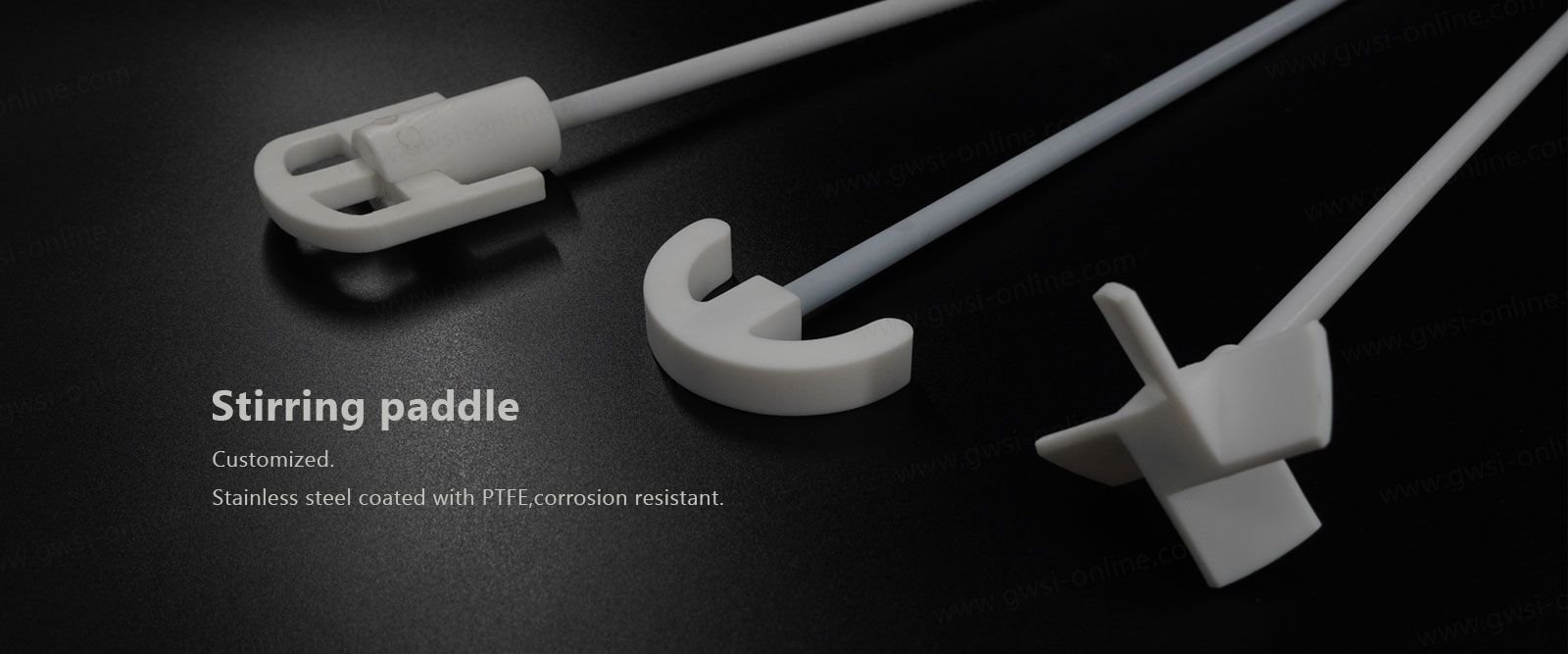

 Customized stirring paddle. Stainless steel coated with PTFE, corrosion resistant.



SPECIFICATIONS

Technical Data 1:


ModelIGRL-10IGRL-10CEIGRL-10ExIGRL-20IGRL-20CEIGRL-20ExIGRL-50IGRL-50CEIGRL-50Ex
Vessel volume10L20L50L
Jacket volume8L9L13L
Funnel volume1L1L1L
Glass materialHigh borosilicate glass 3.3
Operating pressureOrdinary or negative pressure
Working temperature-80~200℃
Condenser
cooling area
0.245 m²0.420 m²
Stirring speed50~500rpm20~500rpm50~500rpm50~500rpm20~500rpm50~500rpm50~500rpm20~500rpm50~500rpm
Power supply220-240V
50/60Hz
100-240V
50/60Hz
220-240V
50/60Hz
220-240V
50/60Hz
100-240V
50/60Hz
220-240V
50/60Hz
220-240V
50/60Hz
100-240V
 50/60Hz
220-240V
50/60Hz

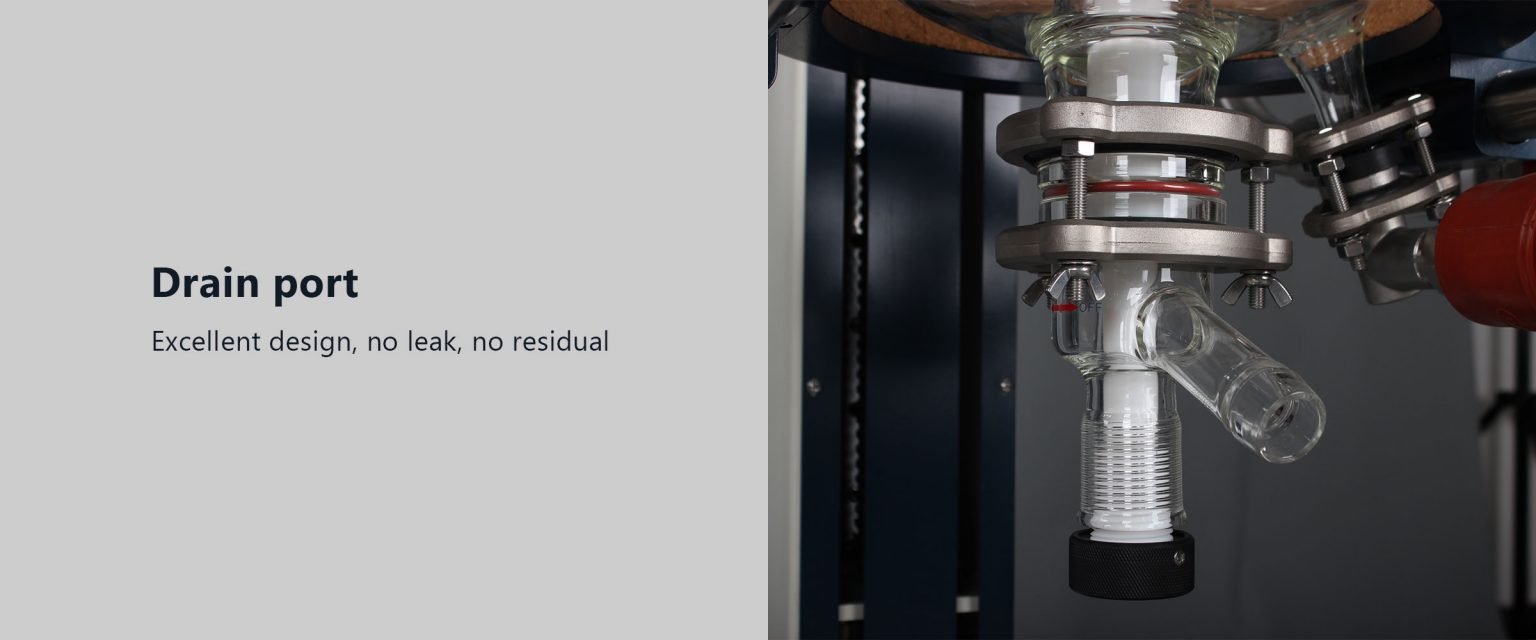

Drain port
ground clearance
580mm530mm570mm
Lifting distance400mm400mm400mm
Dimensions
(W×D×H)
850×1100×2050mm860×1100×2500mm



Technical Data 2:

ModelIGRL-50F
Vessel volume50L
Jacket volume16L
Interface size of liquid outlet/inletRc 3/4"
Condenser heat exchanging areaAbout 0.42 m²
Funnel volume2L
Material of glass partsHigh borosilicate glass 3.3
Reactor lid openingsStirring port50# flange port
Temperature sensor port35# flange port
Condenser connection port50# flange port
Vacuum gauge installation port35# flange port
Funnel elbow port35# flange port
Solid charging port80# flange port
Filter partsMaterialPolypropylene/polyester
Filtration accuracy1~250μm available
Performed filter plate hole size available30~50μm
16~30μm
7~16μm
4~7μm
Filtration areaAbout 0.16m²
Material of filtration base platePTFE
MobilityLockable casters + adjustable foot
Working temperature range-80~200℃
Pay attention to the Max. tolerable temperature of filter cloth
Max temperature difference inside/outside the vessel△T≤80
Operating pressureOrdinary pressure
Max. jacket pressure≤0.03MPa
Max. filtration pressure difference0.1 MPa
Stirring motor power370W
Max. torque5.4N·m
Stirring speed range20~500rpm
Power supply100-240V, 50/60Hz
Material of sealing partsPTFE
Lifting distance About 350mm
Dimensions(W×D×H)1100×760×2050mm
