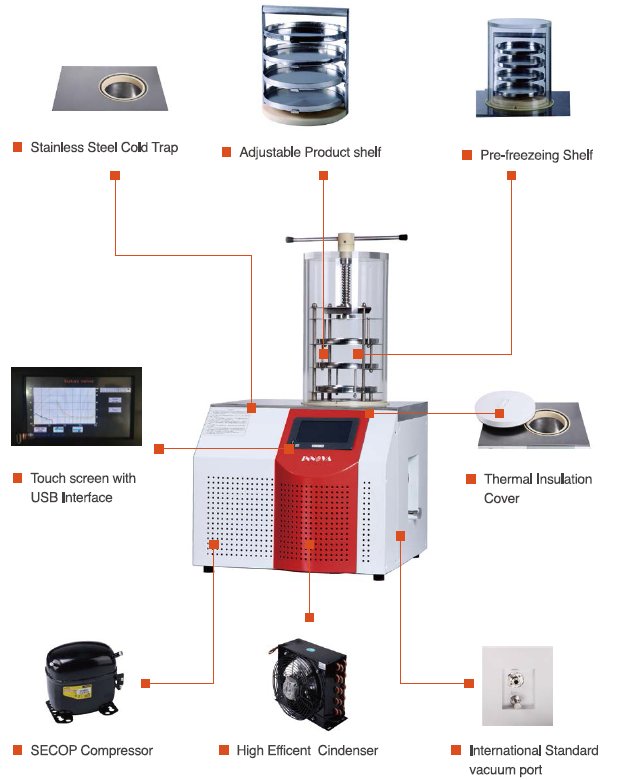

Innova INOFD freeze dryer is specialized designed for small batch test in laboratory. The Bench top and Console freeze dryers are with advanced design and occupies small area.

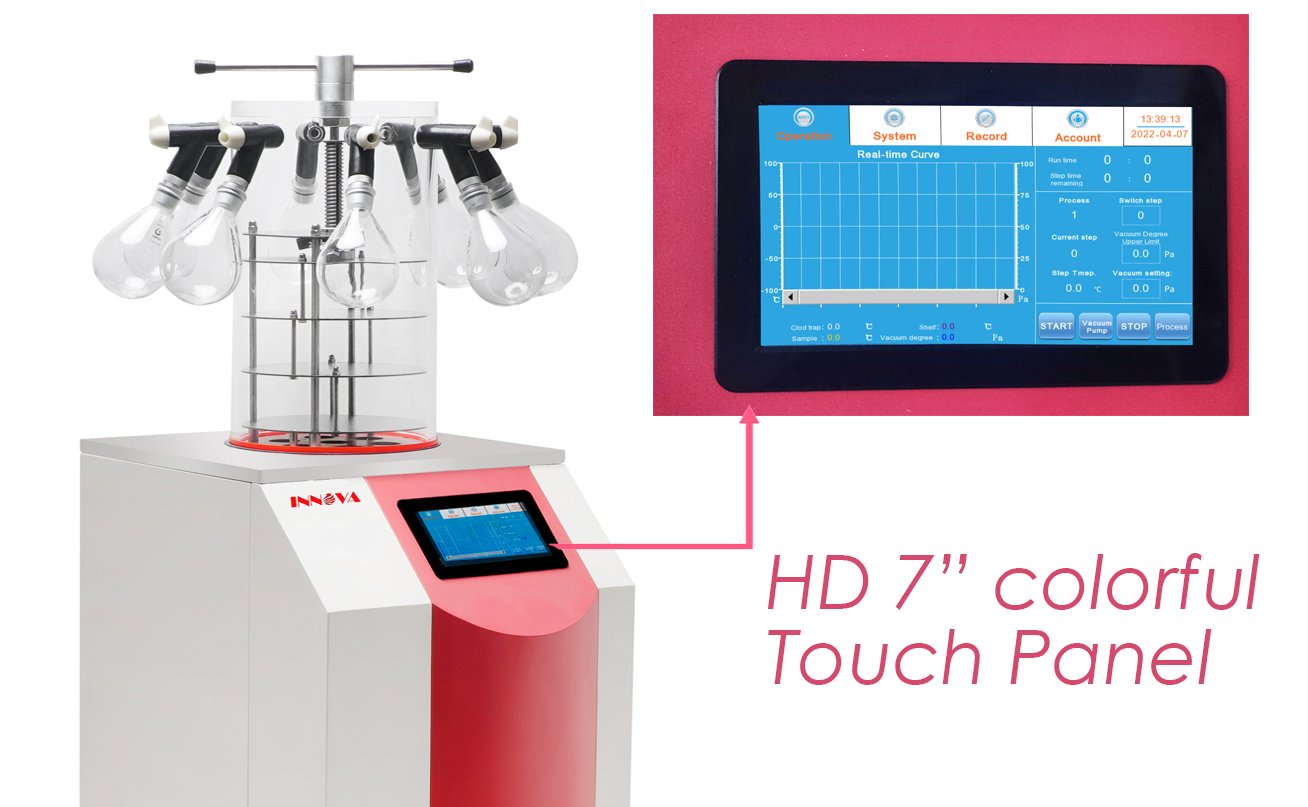

7“ colorful touch panel, can display the product samples temperature, cold trap temperature
and vacuum etc in digital and curve.
Touch panel with tilt design conforms to ergonomics and operate more comfortably.
Condenser temperature of -80℃ is optional (Except bentch top models);
Shelf heating function is optional;

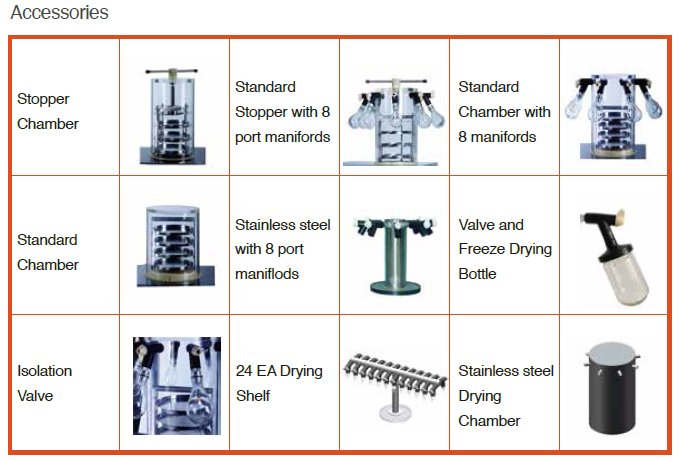

Accessories for different chamber and manifold are optional;
The vacuum pump is standard accessory, which is packed in a separate package, needs to be installed in user's site indepedently,
Model | INOFD-10S | INOFD-10T | INOFD-10P | INOFD-10PT |
Type | Standard chamber | Stoppering chamber | Standard chamber with 8 port manifold | standard stoppering |
chamber with 8 port manifold | ||||
Final condenser temp (℃) | -55 | -55 | -55 | -55 |
Vacuum Degree (Pa) | <10 | <10 | <10 | <10 |
Condenser volume (L) | 9 | 9 | 9 | 9 |
Freeze drying area (m2) | 0.12 | 0.09 | 0.12 | 0.09 |
Ice condenser capacity (Kg/24h) | 3 | 3 | 3 | 3 |
Qty of shelf | 4 | 3 | 4 | 3 |
Material loading capacity/shelf (ml) | 300 | 300 | 300 | 300 |
Material loading capacity (ml) | 1200 | 900 | 1200 | 900 |
Freeze drying time (h) | 24 | 24 | 24 | 24 |
Manifold | / | / | 8 pieces | 8 pieces |
USB Interface | Y | Y | Y | Y |
Drying Chamber(standard) | Transparent acrylic | |||
Vacuum Pump(standard) | Model: 2XZ-2, Speed: 2L/S (China-Made) | |||
Control System | Microprocessor, touch screen | |||
Power supply (V/Hz) | 220V/50Hz,60Hz | |||
Exterior dimension (WxDxH mm) | 582*625*530/960 | |||
Note | Shelf(plate) heating and cold trap(ice condenser) defrosting function are optional; | |||
The vacuum pump is independently packed in a separate package; | ||||
The freeze dryer shipment includes vacuum pump, standard drying chamber and all accessories, like valve, flask etc, if needed |
Model | INOFD-12S | INOFD-12T | INOFD-12P | INOFD-12PT |
Type | Standard chamber | Stoppering chamber | Standard chamber with 8 port manifold | standard stoppering |
chamber with 8 port manifold | ||||
Final condenser temp (℃) | -55 or -80 | -55 or -80 | -55 or -80 | -55 or -80 |
Vacuum Degree (Pa) | <10 | <10 | <10 | <10 |
Condenser volume (L) | 9 | 9 | 9 | 9 |
Freeze drying area (m2) | 0.12 | 0.09 | 0.12 | 0.09 |
Ice condenser capacity (Kg/24h) | 3 | 3 | 3 | 3 |
Qty of shelf | 4 | 3 | 4 | 3 |
Material loading capacity/shelf (ml) | 300 | 300 | 300 | 300 |
Material loading capacity (ml) | 1200 | 900 | 1200 | 900 |
Freeze drying time (h) | 24 | 24 | 24 | 24 |
Manifold | / | / | 8 pieces | 8 pieces |
USB Interface | Y | Y | Y | Y |
Drying Chamber(standard) | Transparent acrylic | |||
Vacuum Pump(standard) | Model: 2XZ-2, Speed: 2L/S (China-Made) | |||
Control System | Microprocessor, touch screen | |||
Power supply (V/Hz) | 220V/50Hz,60Hz | |||
Exterior dimension (WxDxH mm) | 480*620*920/1370 | |||
Note | Shelf(plate) heating and cold trap(ice condenser) defrosting function are optional; | |||
The vacuum pump is independently packed in a separate package; | ||||
The freeze dryer shipment includes vacuum pump, standard drying chamber and all accessories, like valve, flask etc, if needed |
Model | INOFD-18S | INOFD-18T | INOFD-18P | INOFD-18PT |
Type | Standard chamber | Stoppering chamber | Standard chamber with 8 port manifold | standard stoppering |
chamber with 8 port manifold | ||||
Final condenser temp (℃) | -55-55 or -80 | -55-55 or -80 | -55-55 or -80 | -55-55 or -80 |
Vacuum Degree (Pa) | <10 | <10 | <10 | <10 |
Condenser volume (L) | 23 | 23 | 23 | 23 |
Freeze drying area (m2) | 0.18 | 0.135 | 0.18 | 0.135 |
Ice condenser capacity (Kg/24h) | 6 | 6 | 6 | 6 |
Qty of shelf | 4 | 3 | 4 | 3 |
Material loading capacity/shelf (ml) | 450 | 450 | 450 | 450 |
Material loading capacity (ml) | 1800 | 1350 | 1800 | 1350 |
Freeze drying time (h) | 24 | 24 | 24 | 24 |
Manifold | / | / | 8 pieces | 8 pieces |
USB Interface | Y | Y | Y | Y |
Drying Chamber(standard) | Transparent acrylic | |||
Vacuum Pump(standard) | Model: 2XZ-2, Speed: 2L/S (China-Made) | |||
Control System | Microprocessor, touch screen | |||
Power supply (V/Hz) | 220V/50Hz,60Hz | |||
Exterior dimension (WxDxH mm) | 560*710*950/1390 | |||
Note | Shelf(plate) heating and cold trap(ice condenser) defrosting function are optional; | |||
The vacuum pump is independently packed in a separate package; | ||||
The freeze dryer shipment includes vacuum pump, standard drying chamber and all accessories, like valve, flask etc, if needed |
Optional for gas interface: can inject inert gas
Optional for Cold trap electrical heating defrost function
Optional for rack heating which is help to test in production
Eutectic point testing, it can have sublimation temperature
