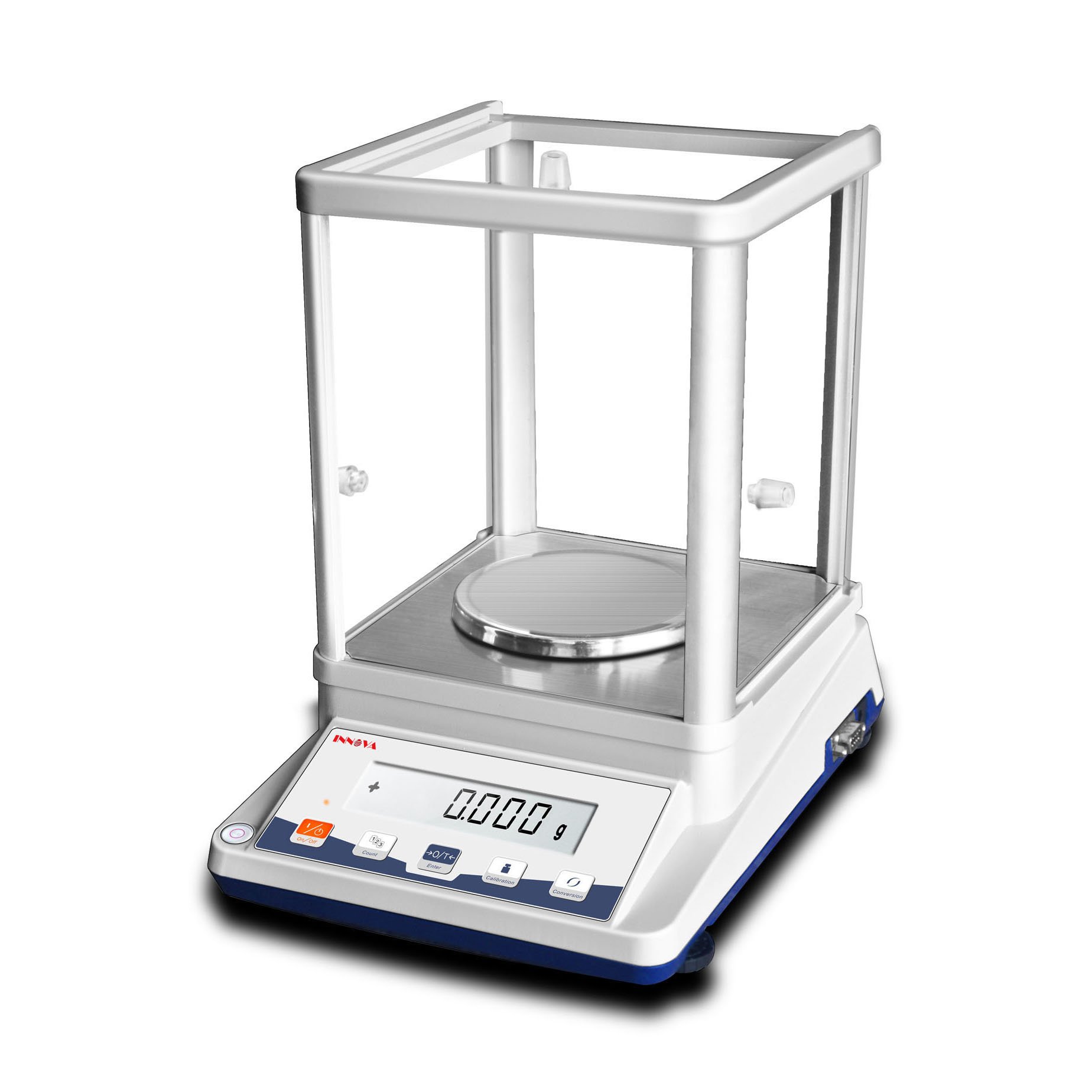

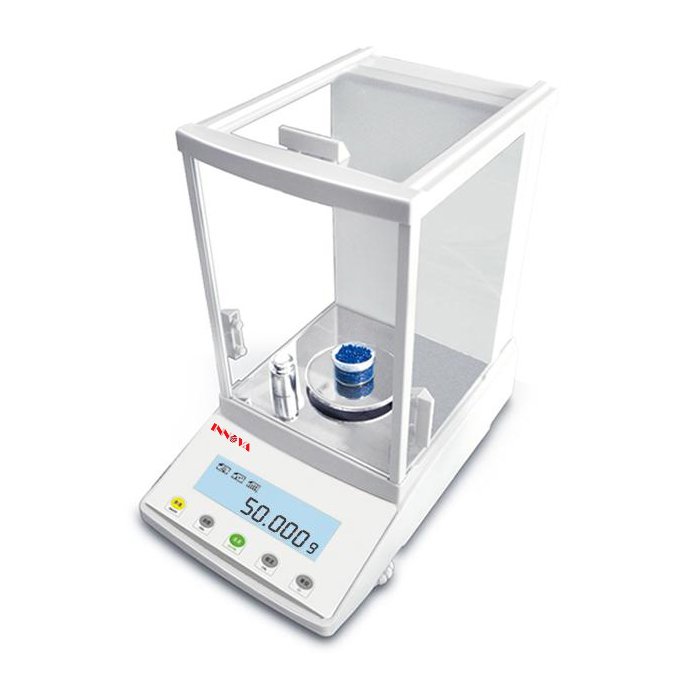

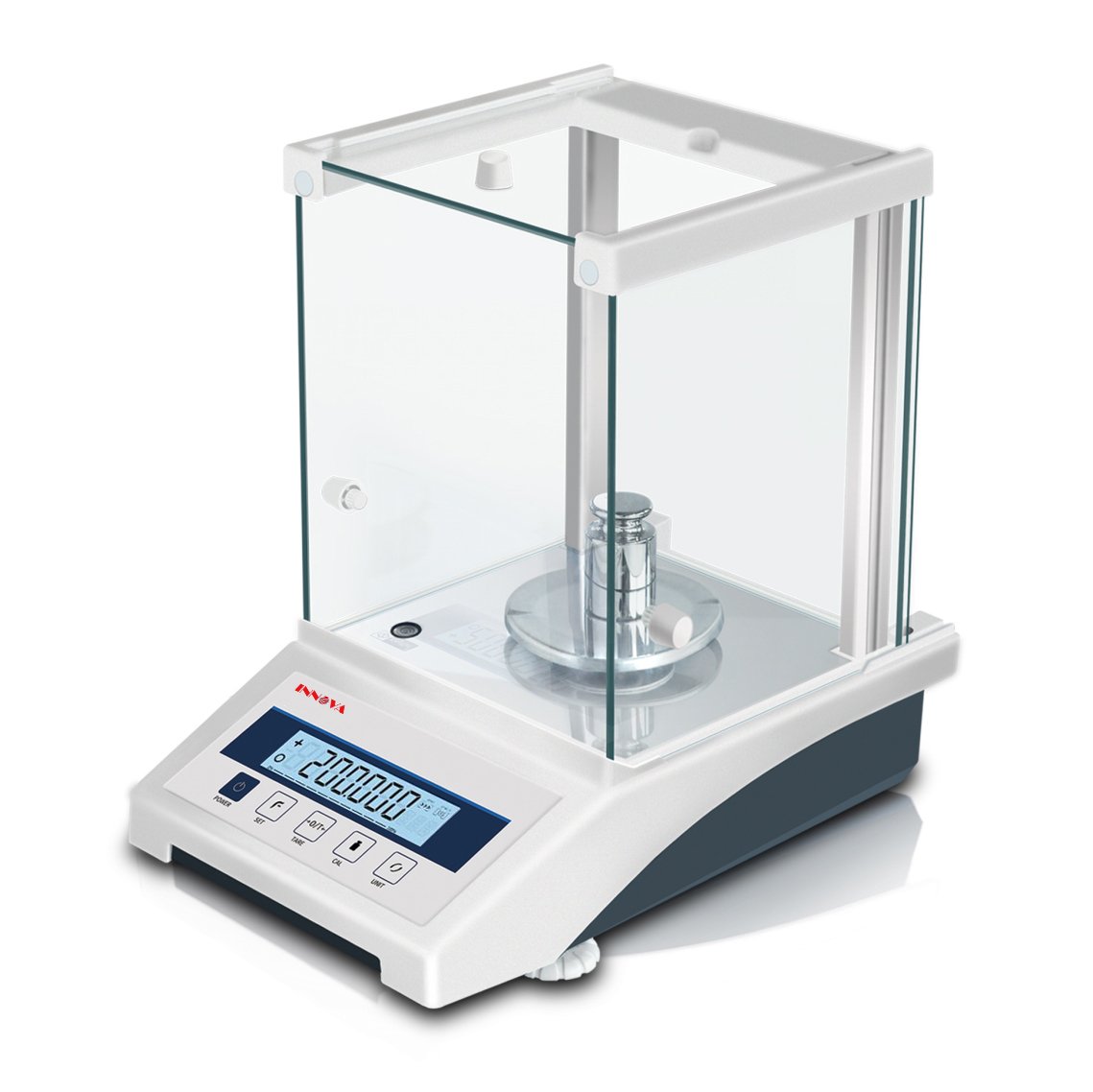

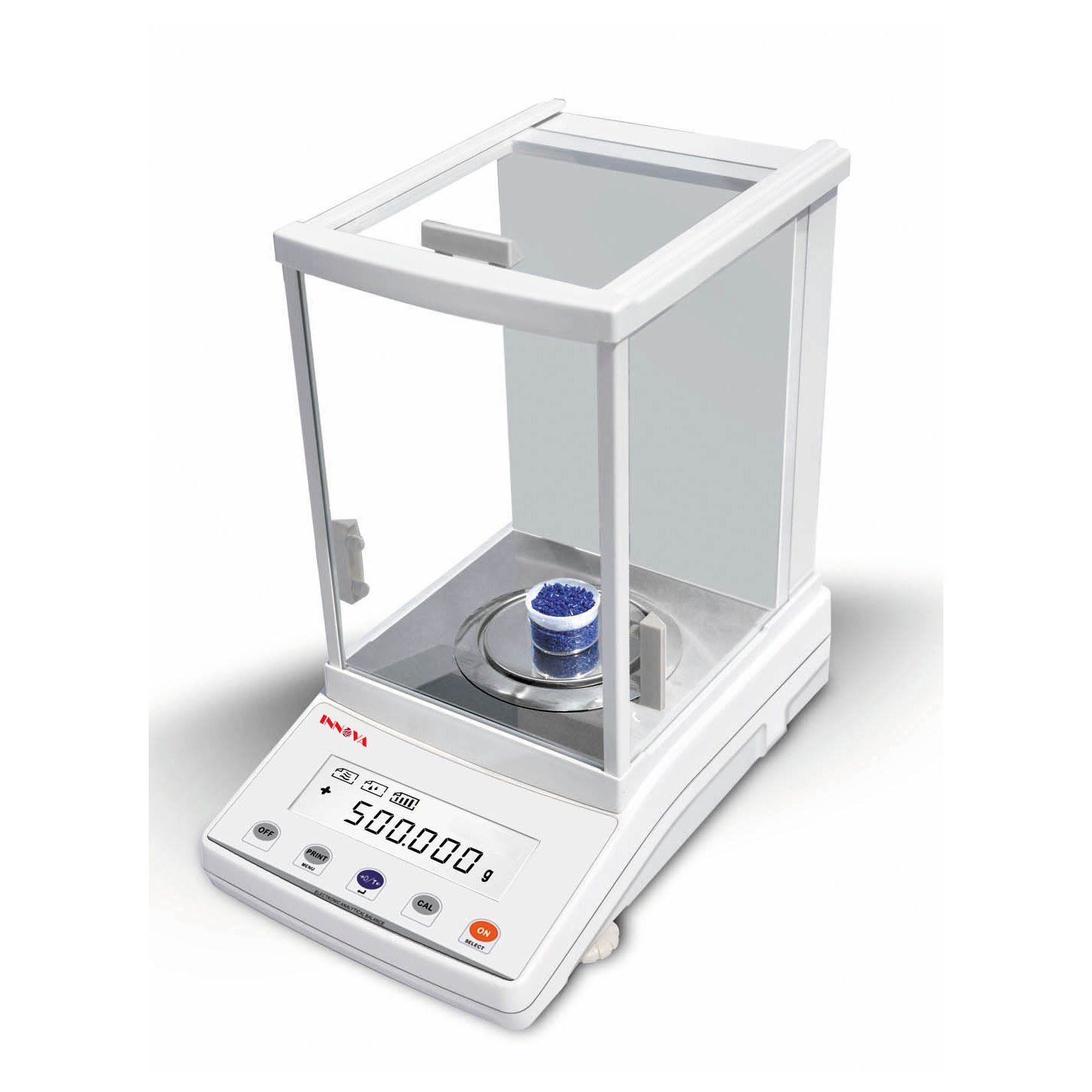

1mg Analytical Balance

INNOVA analytical balance with 1mg resolution, different ranges can be selected, equipped with external or internal calibration function.

Inquire Now

Last product Next product

FEATURES

IBJ(N) series

IBJ-E series

IBJ-H series

IBJ-P series

IBJ(N) Series
Model	IBJ203(N)	IBJ303(N)	IBJ503(N)	IBJ603(N)	IBJ1003	IBJ1203
Capacity	200g	300g	500g	600g	1000g	1200g
Readability	1mg
Min weighing	0.004g
Stable Time	≤3s
Pan size	Φ80mm				Φ100mm
Operation temp	15-35℃
Repeat ability	±0.002g
Linearity	±0.003g
Dimension	340×215×350mm
Draft shield size	240×190×265mm
Calibration	Internal calibration for IBJ-N, External calibration for IBJ
Option	Printer/Under weighing
Packing size	Inside：415×285×430mm Outside：475×315×485mm
G . weight	10kg for IBJ, 11kg for IBJ-N				11kg

IBJ-E Series			IBJ-H Series
Model	IBJ203E	IBJ503E	Model	IBJ103H	IBJ203H	IBJ303H
Capacity	200g	500g	Capacity	110g	210g	310g
Readability	1mg		Readability	1mg
Min weighing	0.004g		Min weighing	0.004g
Stable Time	≤3s		Stable Time	≤3s
Pan size	Φ80mm (standard), Φ90mm (optional)		Display	LED/LCD
Operation temp	5-25℃		Pan size	Φ90mm
Repeat ability	±0.002g		Repeat ability	±0.002g
Linearity	±0.003g		Linearity	±0.003g
Dimension	300×200×295mm		Dimension	340×215×350mm
Draft shield size	180×175×200mm		Draft shield size	240×190×265mm
Calibration	External calibration		Interface	RS232(Standard)
Packing size	425×320×415mm		Calibration	External calibration
G. weight	8kg		Option	Printer/Under weighing
N. weight	6kg		Packing size	Inside：415×285×430mm Outside：475×315×485mm
Interface	RS232C(Standard), USB/Printer(Optional)		G. weight	7.5kg
Sensor	EMF

Electronic balance

File Type:.pdf File Size:2.59 MB
